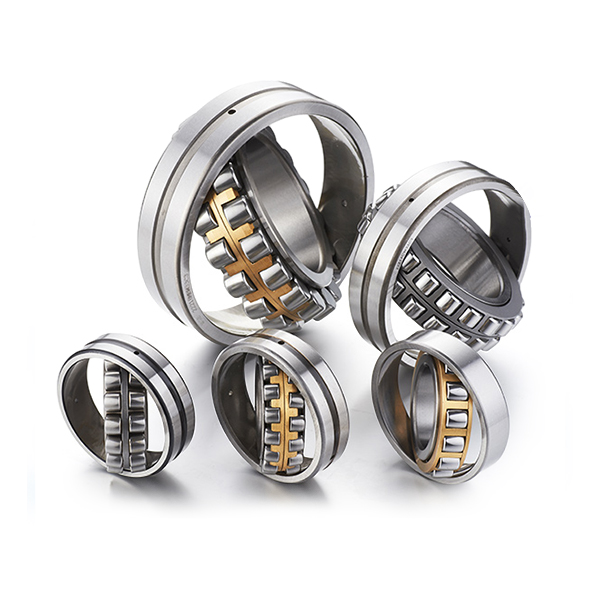

Spherical Roller Bearings

Split spherical roller bearing

Description：

The split spherical roller bearing is a type of bearing designed to accommodate heavy radial and axial loads in applications where mounting and dismounting are difficult or impractical. It consists of two separate halves that are split along the bearing's axis, allowing for easier installation and maintenance compared to solid bearings. These bearings are commonly used in industries such as mining, construction, and paper manufacturing where equipment downtime must be minimized.

contact us Inquiry
PREV：No previous article
NEXT：Spherical roller bearing for vibratory applications

Product Detail

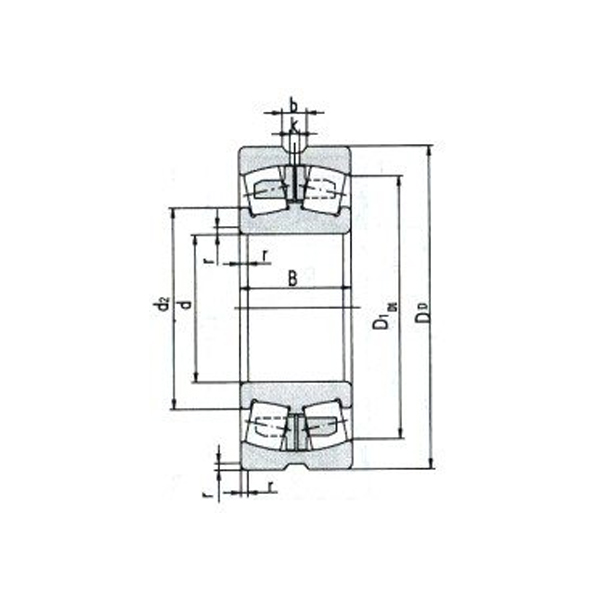

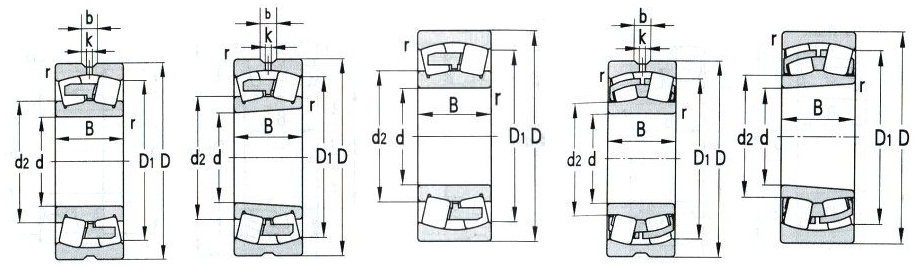

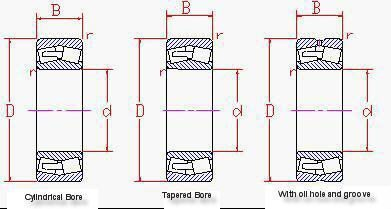

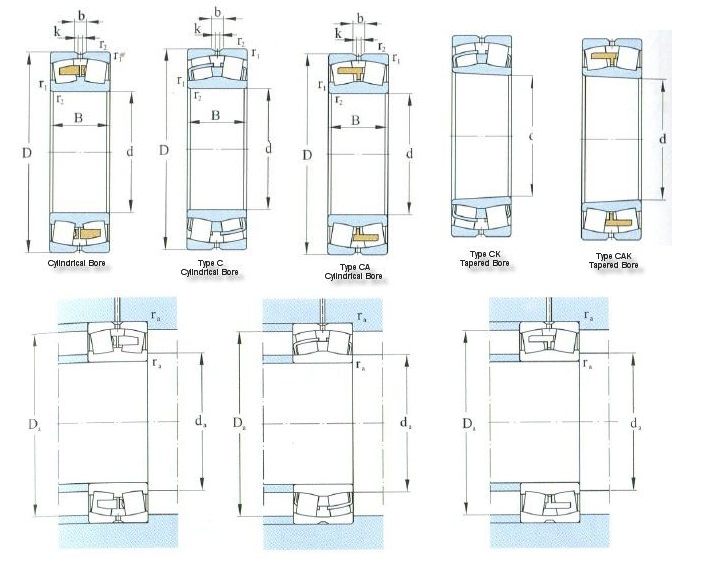

Boundary dimensions
mm		 Load rating
kN		 Limiting speed
r/min		 Bearing numbers Mounting dimensions
mm		 Weight
(reference)
(Tapered bore)
kg
d D B b k r1,2 Cr Cor Grease Oil Cylindrical bore Tapered bore da
max		 Da
max		 ra
max
110 170 45.0 7.5 3 2.0 267.0 440.0 2200 3000 23022CAF3/W33 - 120 160 2.0 3.50
110 180 56.0 5.5 3 2.0 374.0 585.0 1900 2600 23122C/W33 23122CK/W33 120 170 2.0 5.55
110 180 56.0 - - 2.0 374.0 585.0 1900 2600 23122CAF3 - 120 170 2.0 5.73
110 180 56.0 - - 2.0 374.0 585.0 1900 2600 23122CA - 120 170 2.0 5.73
110 180 56.0 5.5 3 2.0 374.0 585.0 1900 2600 23122CA/W33 23122CAK/W33 120 170 2.0 5.73
110 180 69.0 5.5 3 2.0 460.0 750.0 1000 1400 24122/W33 - 120 170 2.0 6.90
110 180 69.0 5.5 3 2.0 460.0 750.0 1000 1400 24122C/W33 24122CK30/W33 120 170 2.0 6.85
110 180 69.0 - - 2.0 460.0 750.0 1000 1400 24122CA - 120 170 2.0 6.92
110 180 69.0 5.5 3 2.0 460.0 750.0 1000 1400 24122CA/W33 24122CAK30/W33 120 170 2.0 6.92
110 200 53.0 - - 2.1 408.0 560.0 2000 2800 22222 - 122 188 2.0 7.00
110 200 53.0 8.3 4.5 2.1 408.0 560.0 2000 2800 22222/W33 - 122 188 2.0 7.43
110 200 53.0 - - 2.1 408.0 560.0 2000 2800 - 22222CK 122 188 2.0 7.43
110 200 53.0 8.3 4.5 2.1 408.0 560.0 2000 2800 22222C/W33 22222CK/W33 122 188 2.0 7.00
110 200 53.0 - - 2.1 408.0 560.0 2000 2800 22222CA - 122 188 2.0 7.43
110 200 53.0 - - 2.1 408.0 560.0 2000 2800 22222CAF3 - 122 188 2.0 7.43
110 200 53.0 8.3 4.5 2.1 408.0 560.0 2000 2800 22222CA/W33 22222CAK/W33 122 188 2.0 7.43
110 200 69.8 5.5 3 2.1 518.0 765.0 1600 2000 23222C/W33 23222CK/W33 122 188 2.0 9.70
110 200 69.8 5.5 3 2.1 518.0 765.0 1600 2000 23222CA/W33 23222CAK/W33 122 188 2.0 10.1
110 200 69.8 - - 2.1 518.0 765.0 1600 2000 23222CA - 122 188 2.0 10.1
110 200 69.8 - - 2.1 518.0 765.0 1600 2000 23222CAF3 - 122 188 2.0 10.1
110 200 69.8 5.5 3 2.1 518.0 765.0 1600 2000 23222CAF3/W33 - 122 188 2.0 10.1
110 240 50.0 - - 3.0 460.0 630.0 1600 2000 21322C 21322CK 124 226 2.5 12.0
110 240 50.0 - - 3.0 460.0 630.0 1600 2000 21322CA 21322CAK 124 226 2.5 13.0
110 240 80.0 - - 3.0 725.0 965.0 1600 2000 22322 22322CK 124 226 2.5 18.9
110 240 80.0 13.9 7.5 3.0 725.0 965.0 1600 2000 22322C/W33 22322CK/W33 124 226 2.5 18.0
110 240 80.0 - - 3.0 725.0 965.0 1600 2000 22322CA 22322CAK 124 226 2.5 18.9
110 240 80.0 13.9 7.5 3.0 725.0 965.0 1600 2000 22322CA/W33 22322CAK/W33 124 226 2.5 18.9
110 240 80.0 - - 3.0 725.0 965.0 1600 2000 22322CAF3 22322CAKF3 124 226 2.5 18.9
120 180 46.0 - - 2.0 305.0 510.0 2000 2800 23024 23024K 130 170 2.0 4.19
120 180 46.0 5.5 3 2.0 305.0 510.0 2000 2800 23024C/W33 23024CK/W33 130 170 2.0 4.20
120 180 46.0 - - 2.0 305.0 510.0 2000 2800 - 23024CK 130 170 2.0 4.20
120 180 46.0 - - 2.0 305.0 510.0 2000 2800 23024CA 23024CAK 130 170 2.0 4.44
120 180 46.0 5.5 3 2.0 305.0 510.0 2000 2800 23024CA/W33 23024CAK/W33 130 170 2.0 4.44
120 180 60.0 5.5 3 2.0 374.0 670.0 1600 2000 24024C/W33 24024CK30/W33 130 170 2.0 5.40
120 180 60.0 - - 2.0 374.0 670.0 1600 2000 24024CA - 130 170 2.0 5.83
120 180 60.0 5.5 3 2.0 374.0 670.0 1600 2000 24024CA/W33 24024CAK30/W33 130 170 2.0 5.83
120 200 62.0 5.5 3 2.0 449.0 695.0 1800 2400 23124C/W33 23124CK/W33 130 190 2.0 7.80
120 200 80.0 5.5 3 2.0 575.0 950.0 900 1200 24124C/W33 24124CK30/W33 130 190 2.0 10.0
120 200 80.0 - - 2.0 575.0 950.0 900 1200 24124CA - 130 190 2.0 10.6
120 200 80.0 5.5 3 2.0 575.0 950.0 900 1200 24124CA/W33 24124CAK30/W33 130 190 2.0 10.6
120 200 80.0 - - 2.0 575.0 950.0 900 1200 24124CAF3 - 130 190 2.0 10.6
120 215 58.0 - - 2.1 466.0 670.0 1900 2600 22224 22224K 132 203 2.0 8.70
120 215 58.0 11.1 6 2.1 466.0 670.0 1900 2600 22224C/W33 22224CK/W33 132 203 2.0 8.70
120 215 58.0 - - 2.1 466.0 670.0 1900 2600 22224CA 22224CAK 132 203 2.0 9.76
120 215 58.0 - - 2.1 466.0 670.0 1900 2600 22224CAF3 22224CAKF3 132 203 2.0 9.68
120 215 58.0 11.1 6 2.1 466.0 670.0 1900 2600 - 22224CAKF3/W33 132 203 2.0 9.68
120 215 58.0 - - 2.1 466.0 670.0 1900 2600 22224CA/W33 22224CAK/W33 132 203 2.0 9.87
120 215 76.0 8.3 4.5 2.1 610.0 930.0 1500 1900 23224C/W33 23224CK/W33 132 203 2.0 12.0
120 215 76.0 - - 2.1 610.0 930.0 1500 1900 23224CA - 132 203 2.0 12.1
120 215 76.0 8.3 4.5 2.1 610.0 930.0 1500 1900 23224CA/W33 23224CAK/W33 132 203 2.0 12.1
120 215 76.0 8.3 4.5 2.1 610.0 930.0 1500 1900 23224CAF3/W33 23224CAKF3/W33 132 203 2.0 12.1
120 260 86.0 - - 3.0 845.0 1120.0 1400 2800 22324 22324k 134 246 2.5 23.8
120 260 86.0 7.5 3 3.0 845.0 1120.0 1400 2800 22324C/W33 22324CK/W33 134 246 2.5 22.0
120 260 86.0 - - 3.0 845.0 1120.0 1400 2800 22324CA 22324CAK 134 246 2.5 22.0
120 260 86.0 7.5 3 3.0 845.0 1120.0 1400 2800 22324CA/W33 22324CAK/W33 134 246 2.5 23.3
120 260 86.0 - - 3.0 845.0 1120.0 1400 2800 22324CAF3 22324CAKF3 134 246 2.5 23.1
120 260 86.0 7.5 3 3.0 845.0 1120.0 1400 2800 - 22324CAKF3/W33 134 246 2.5 22.8
130 200 52.0 5.5 3 2.0 374.0 610.0 1900 2600 23026C/W33 23026CK/W33 140 190 2.0 6.10
130 200 52.0 - - 2.0 374.0 610.0 1900 2600 23026CA 23026CAK 140 190 2.0 7.04
130 200 52.0 5.5 3 2.0 374.0 610.0 1900 2600 23026CA/W33 23026CAK/W33 140 190 2.0 7.04
130 200 52.0 - - 2.0 374.0 610.0 1900 2600 23026CAF3 23026CAKF3 140 190 2.0 6.75
130 200 52.0 5.5 3 2.0 374.0 610.0 1900 2600 23026CAF3/W33 23026CAKF3/W33 140 190 2.0 6.75
130 200 69.0 5.5 3 2.0 477.0 815.0 1500 1900 24026C/W33 24026CK30/W33 140 190 2.0 7.95
130 200 69.0 5.5 3 2.0 477.0 815.0 1500 1900 24026CA/W33 24026CAK30/W33 140 190 2.0 8.28
130 210 64.0 8.3 4.5 2.0 489.0 780.0 1700 2200 23126C/W33 23126CK/W33 140 200 2.0 8.55
130 210 64.0 8.3 4.5 2.0 489.0 780.0 1700 2200 23126CA 23126CAKF3/W33 140 200 2.0 10.7
130 210 64.0 8.3 4.5 2.0 489.0 780.0 1700 2200 23126CA/W33 23126CAK/W33 140 200 2.0 10.7
130 210 80.0 - 4.5 2.0 587.0 1000 900 1200 24126C/W33 24126CK30/W33 140 200 2.0 11.0
130 210 80.0 8.3 4.5 2.0 587.0 1000 900 1200 24126CA/W33 24126CAK30/W33 140 200 2.0 12.0
130 230 64.0 11.1 6 3.0 546.0 800.0 1800 2400 22226/W33 - 144 216 2.5 11.0
130 230 64.0 11.1 6 3.0 546.0 800.0 1800 2400 22226C/W33 22226CK/W33 144 216 2.5 11.0
130 230 64.0 - - 3.0 546.0 800.0 1800 2400 22226CA 22226CAK 144 216 2.5 12.4
130 230 64.0 11.1 6 3.0 546.0 800.0 1800 2400 22226CA/W33 22226CAK/W33 144 216 2.5 12.4
130 230 64.0 - - 3.0 546.0 800.0 1800 2400 - 22226CAKF3 144 216 2.5 12.4
130 230 80.0 8.3 4.5 3.0 690.0 1060.0 1300 1700 23226C/W33 23226CK/W33 144 216 2.5 14.0
130 230 80.0 - - 3.0 690.0 1060.0 1300 1700 23226CA 23226CAK 144 216 2.5 14.0
130 230 80.0 8.3 4.5 3.0 690.0 1060.0 1300 1700 23226CA/W33 - 144 216 2.5 14.0
130 230 80.0 - - 3.0 690.0 1060.0 1300 1700 23226CAF3 23226CAKF3 144 216 2.5 14.0
130 230 80.0 12 5 3.0 690.0 1060.0 1300 1700 23226CAF3/W33 - 144 216 2.5 14.0
130 230 80.0 - - 3.0 690.0 1060.0 1300 1700 23226CAF3/HAC9S0W20X - 144 216 2.5 14.0
130 230 93.0 16.7 9 4.0 978.0 1320.0 1300 1700 22326C/W33 22326CK/W33 148 262 3.0 28.5
130 230 93.0 - - 4.0 978.0 1320.0 1300 1700 22326CA 22326CAK 148 262 3.0 28.5
130 230 93.0 - - 4.0 978.0 1320.0 1300 1700 22326CAF3 - 148 262 3.0 28.5
130 230 93.0 16.7 9 4.0 978.0 1320.0 1300 1700 22326CAF3/W33 - 148 262 3.0 28.5
130 230 93.0 16.7 9 4.0 978.0 1320.0 1300 1700 22326CA/W33 22326CAK/W33 148 262 3.0 18.3
130 230 93.0 - - 4.0 978.0 1320.0 1300 1700 22326CAQ1/HA - 148 262 3.0 18.3
140 210 53.0 8.3 4.5 2.0 397.0 680.0 1800 2400 23028C/W33 23028CK/W33 150 200 2.0 6.55
140 210 53.0 - - 2.0 397.0 680.0 1800 2400 23028CA 23028CAK 150 200 2.0 6.55
140 210 53.0 - - 2.0 397.0 680.0 1800 2400 23028CAF3 23028CAKF3 150 200 2.0 6.55
140 210 53.0 8.3 4.5 2.0 397.0 680.0 1800 2400 23028CA/W33 23028CAK/W33 150 200 2.0 6.70
140 210 69.0 5.5 3 2.0 495.0 900.0 1400 1800 24028C/W33 24028CK30/W33 150 200 2.0 8.45
140 210 69.0 5.5 3 2.0 495.0 900.0 1400 1800 24028CA/W33 24028CAK30/W33 150 200 2.0 8.65
140 225 68.0 8.3 4.5 2.1 546.0 900.0 1600 2000 23128C/W33 23128CK/W33 152 213 2.0 10.5
140 225 68.0 - - 2.1 546.0 900.0 1600 2000 23128CA - 152 213 2.0 10.9
140 225 68.0 8.3 4.5 2.1 546.0 900.0 1600 2000 23128CA/W33 23128CAK/W33 152 213 2.0 10.9
140 225 85.0 8.3 4.5 2.1 673.0 1160.0 850 1100 24128C/W33 24128CK/W33 152 213 2.0 13.0
140 225 85.0 8.3 4.5 2.1 673.0 1160.0 850 1100 24128CA 24128CAK30/W33 152 213 2.0 13.5
140 225 85.0 - - 2.1 673.0 1160.0 850 1100 24128CAF3 - 152 213 2.0 13.5
140 225 85.0 8.3 4.5 2.1 673.0 1160.0 850 1100 24128CA/W33 24128CAK/W33 152 213 2.0 13.5
140 250 68.0 11.1 6 3.0 610.0 900.0 1700 2200 22228C/W33 22228CK/W33 154 236 2.5 14.0
140 250 68.0 - - 3.0 610.0 900.0 1700 2200 22228CA 22228CAK 154 236 2.5 16.2
140 250 68.0 11.1 6 3.0 610.0 900.0 1700 2200 22228CA/W33 22228CAK/W33 154 236 2.5 16.2
140 250 68.0 - - 3.0 610.0 900.0 1700 2200 22228CAF3 - 154 236 2.5 15.6
140 250 68.0 11.1 6 3.0 610.0 900.0 1700 2200 22228CAF3/W33 22228CAKF3/W33 154 236 2.5 15.6
140 250 88.0 11.1 6 3.0 799.0 1250.0 1200 1600 23228C/W33 23228CK/W33 154 236 2.5 18.5
140 250 88.0 11.1 6 3.0 799.0 1250.0 1200 1600 23228CA/W33 23228CAK/W33 154 236 2.5 19.7
140 250 88.0 11.1 6 3.0 799.0 1250.0 1200 1600 23228CAF3/W33 - 154 236 2.5 19.3
140 300 102.0 - - 3.7 1130.0 1560.0 1100 1500 22328 - - - - -
140 300 102.0 16.7 9 4.0 1130.0 1560.0 1100 1500 22328C/W33 22328CK/W33 158 282 3.0 34.5
140 300 102.0 - - 4.0 1130.0 1560.0 1100 1500 22328CA 22328CAK 158 282 3.0 36.2
140 300 102.0 16.7 9 4.0 1130.0 1560.0 1100 1500 22328CA/W33 22328CAK/W33 158 282 3.0 36.2
140 300 102.0 - - 4.0 1130.0 1560.0 1100 1500 22328CAF3 - 158 282 3.0 36.2
140 300 102.0 - - 4.0 1130.0 1560.0 1100 1500 22328CAQ1/HA - 158 282 3.0 36.2
150 225 56.0 - - 2.1 437.0 750.0 1700 2200 23030 23030K 162 213 2.0 7.44
150 225 56.0 8.3 4.5 2.1 437.0 750.0 1700 2200 23030C/W33 23030CK/W33 162 213 2.0 7.95
150 225 56.0 - - 2.1 437.0 750.0 1700 2200 23030CA - 162 213 2.0 8.01
150 225 56.0 - - 2.1 437.0 750.0 1700 2200 23030CAF3 - 162 213 2.0 8.01
150 225 56.0 8.3 4.5 2.1 437.0 750.0 1700 2200 23030CA/W33 23030CAK/W33 162 213 2.0 8.01
150 225 75.0 5.5 3 2.1 564.0 1040.0 1300 1700 24030C/W33 24030CK30/W33 162 213 2.0 10.5
150 225 75.0 5.5 3 2.1 564.0 1040.0 1300 1700 24030CA/W33 24030CAK30/W33 162 213 2.0 9.39
150 250 80.0 11.1 6 2.1 725.0 1200.0 1400 1800 23130/W33 - 162 238 2.0 16.0
150 250 80.0 11.1 6 2.1 725.0 1200.0 1400 1800 23130C/W33 23130CK/W33 162 238 2.0 16.0
150 250 80.0 - - 2.1 725.0 1200.0 1400 1800 23130CA 23130CAK 162 238 2.0 16.5
150 250 80.0 11.1 6 2.1 725.0 1200.0 1400 1800 23130CA/W33 23130CAK/W33 162 238 2.0 16.5
150 250 80.0 - - 2.1 725.0 1200.0 1400 1800 23130CAF3 - 162 238 2.0 16.5
150 250 80.0 11.1 6 2.1 725.0 1200.0 1400 1800 23130CAF3/W33 23130CAKF3/W33 162 238 2.0 16.5
150 250 100.0 8.3 4.5 2.1 897.0 1530.0 800 1000 24130C/W33 24130CK30/W33 162 238 2.0 19.5
150 250 100.0 8.3 4.5 2.1 897.0 1530.0 800 1000 24130CA/W33 24130CAK30/W33 162 238 2.0 21.0
150 270 73.0 13.9 7.5 3.0 736.0 1080.0 1600 2000 22230/W33 - 164 256 2.5 18.0
150 270 73.0 13.9 7.5 3.0 736.0 1080.0 1600 2000 22230C/W33 22230CK/W33 164 256 2.5 18.0
150 270 73.0 - - 3.0 736.0 1080.0 1600 2000 22230CA 22230CAK 164 256 2.5 18.0
150 270 73.0 - - 3.0 736.0 1080.0 1600 2000 22230CAF3 - 164 256 2.5 18.0
150 270 73.0 13.9 7.5 3.0 736.0 1080.0 1600 2000 22230CA/W33 22230CAK/W33 164 256 2.5 18.7
150 270 96.0 - - 3.0 937.0 1460.0 1100 1500 23230 - 164 256 2.5 24.0
150 270 96.0 11.1 6 3.0 937.0 1460.0 1100 1500 23230C/W33 23230CK/W33 164 256 2.5 24.0
150 270 96.0 - - 3.0 937.0 1460.0 1100 1500 23230CA - 164 256 2.5 24.0
110 170 45.0 7.5 3 2.0 267.0 440.0 2200 3000 23022CAF3/W33 - 120 160 2.0 3.50
110 180 56.0 5.5 3 2.0 374.0 585.0 1900 2600 23122C/W33 23122CK/W33 120 170 2.0 5.55
110 180 56.0 - - 2.0 374.0 585.0 1900 2600 23122CAF3 - 120 170 2.0 5.73
110 180 56.0 - - 2.0 374.0 585.0 1900 2600 23122CA - 120 170 2.0 5.73
110 180 56.0 5.5 3 2.0 374.0 585.0 1900 2600 23122CA/W33 23122CAK/W33 120 170 2.0 5.73
110 180 69.0 5.5 3 2.0 460.0 750.0 1000 1400 24122/W33 - 120 170 2.0 6.90
110 180 69.0 5.5 3 2.0 460.0 750.0 1000 1400 24122C/W33 24122CK30/W33 120 170 2.0 6.85
110 180 69.0 - - 2.0 460.0 750.0 1000 1400 24122CA - 120 170 2.0 6.92
110 180 69.0 5.5 3 2.0 460.0 750.0 1000 1400 24122CA/W33 24122CAK30/W33 120 170 2.0 6.92
110 200 53.0 - - 2.1 408.0 560.0 2000 2800 22222 - 122 188 2.0 7.00
110 200 53.0 8.3 4.5 2.1 408.0 560.0 2000 2800 22222/W33 - 122 188 2.0 7.43
110 200 53.0 - - 2.1 408.0 560.0 2000 2800 - 22222CK 122 188 2.0 7.43
110 200 53.0 8.3 4.5 2.1 408.0 560.0 2000 2800 22222C/W33 22222CK/W33 122 188 2.0 7.00
110 200 53.0 - - 2.1 408.0 560.0 2000 2800 22222CA - 122 188 2.0 7.43
110 200 53.0 - - 2.1 408.0 560.0 2000 2800 22222CAF3 - 122 188 2.0 7.43
110 200 53.0 8.3 4.5 2.1 408.0 560.0 2000 2800 22222CA/W33 22222CAK/W33 122 188 2.0 7.43
110 200 69.8 5.5 3 2.1 518.0 765.0 1600 2000 23222C/W33 23222CK/W33 122 188 2.0 9.70
110 200 69.8 5.5 3 2.1 518.0 765.0 1600 2000 23222CA/W33 23222CAK/W33 122 188 2.0 10.1
110 200 69.8 - - 2.1 518.0 765.0 1600 2000 23222CA - 122 188 2.0 10.1
110 200 69.8 - - 2.1 518.0 765.0 1600 2000 23222CAF3 - 122 188 2.0 10.1
110 200 69.8 5.5 3 2.1 518.0 765.0 1600 2000 23222CAF3/W33 - 122 188 2.0 10.1
110 240 50.0 - - 3.0 460.0 630.0 1600 2000 21322C 21322CK 124 226 2.5 12.0
110 240 50.0 - - 3.0 460.0 630.0 1600 2000 21322CA 21322CAK 124 226 2.5 13.0
110 240 80.0 - - 3.0 725.0 965.0 1600 2000 22322 22322CK 124 226 2.5 18.9
110 240 80.0 13.9 7.5 3.0 725.0 965.0 1600 2000 22322C/W33 22322CK/W33 124 226 2.5 18.0
110 240 80.0 - - 3.0 725.0 965.0 1600 2000 22322CA 22322CAK 124 226 2.5 18.9
110 240 80.0 13.9 7.5 3.0 725.0 965.0 1600 2000 22322CA/W33 22322CAK/W33 124 226 2.5 18.9
110 240 80.0 - - 3.0 725.0 965.0 1600 2000 22322CAF3 22322CAKF3 124 226 2.5 18.9
120 180 46.0 - - 2.0 305.0 510.0 2000 2800 23024 23024K 130 170 2.0 4.19
120 180 46.0 5.5 3 2.0 305.0 510.0 2000 2800 23024C/W33 23024CK/W33 130 170 2.0 4.20
120 180 46.0 - - 2.0 305.0 510.0 2000 2800 - 23024CK 130 170 2.0 4.20
120 180 46.0 - - 2.0 305.0 510.0 2000 2800 23024CA 23024CAK 130 170 2.0 4.44
120 180 46.0 5.5 3 2.0 305.0 510.0 2000 2800 23024CA/W33 23024CAK/W33 130 170 2.0 4.44
120 180 60.0 5.5 3 2.0 374.0 670.0 1600 2000 24024C/W33 24024CK30/W33 130 170 2.0 5.40
120 180 60.0 - - 2.0 374.0 670.0 1600 2000 24024CA - 130 170 2.0 5.83
120 180 60.0 5.5 3 2.0 374.0 670.0 1600 2000 24024CA/W33 24024CAK30/W33 130 170 2.0 5.83
120 200 62.0 5.5 3 2.0 449.0 695.0 1800 2400 23124C/W33 23124CK/W33 130 190 2.0 7.80
120 200 80.0 5.5 3 2.0 575.0 950.0 900 1200 24124C/W33 24124CK30/W33 130 190 2.0 10.0
120 200 80.0 - - 2.0 575.0 950.0 900 1200 24124CA - 130 190 2.0 10.6
120 200 80.0 5.5 3 2.0 575.0 950.0 900 1200 24124CA/W33 24124CAK30/W33 130 190 2.0 10.6
120 200 80.0 - - 2.0 575.0 950.0 900 1200 24124CAF3 - 130 190 2.0 10.6
120 215 58.0 - - 2.1 466.0 670.0 1900 2600 22224 22224K 132 203 2.0 8.70
120 215 58.0 11.1 6 2.1 466.0 670.0 1900 2600 22224C/W33 22224CK/W33 132 203 2.0 8.70
120 215 58.0 - - 2.1 466.0 670.0 1900 2600 22224CA 22224CAK 132 203 2.0 9.76
120 215 58.0 - - 2.1 466.0 670.0 1900 2600 22224CAF3 22224CAKF3 132 203 2.0 9.68
120 215 58.0 11.1 6 2.1 466.0 670.0 1900 2600 - 22224CAKF3/W33 132 203 2.0 9.68
120 215 58.0 - - 2.1 466.0 670.0 1900 2600 22224CA/W33 22224CAK/W33 132 203 2.0 9.87
120 215 76.0 8.3 4.5 2.1 610.0 930.0 1500 1900 23224C/W33 23224CK/W33 132 203 2.0 12.0
120 215 76.0 - - 2.1 610.0 930.0 1500 1900 23224CA - 132 203 2.0 12.1
120 215 76.0 8.3 4.5 2.1 610.0 930.0 1500 1900 23224CA/W33 23224CAK/W33 132 203 2.0 12.1
120 215 76.0 8.3 4.5 2.1 610.0 930.0 1500 1900 23224CAF3/W33 23224CAKF3/W33 132 203 2.0 12.1
120 260 86.0 - - 3.0 845.0 1120.0 1400 2800 22324 22324k 134 246 2.5 23.8
120 260 86.0 7.5 3 3.0 845.0 1120.0 1400 2800 22324C/W33 22324CK/W33 134 246 2.5 22.0
120 260 86.0 - - 3.0 845.0 1120.0 1400 2800 22324CA 22324CAK 134 246 2.5 22.0
120 260 86.0 7.5 3 3.0 845.0 1120.0 1400 2800 22324CA/W33 22324CAK/W33 134 246 2.5 23.3
120 260 86.0 - - 3.0 845.0 1120.0 1400 2800 22324CAF3 22324CAKF3 134 246 2.5 23.1
120 260 86.0 7.5 3 3.0 845.0 1120.0 1400 2800 - 22324CAKF3/W33 134 246 2.5 22.8
130 200 52.0 5.5 3 2.0 374.0 610.0 1900 2600 23026C/W33 23026CK/W33 140 190 2.0 6.10
130 200 52.0 - - 2.0 374.0 610.0 1900 2600 23026CA 23026CAK 140 190 2.0 7.04
130 200 52.0 5.5 3 2.0 374.0 610.0 1900 2600 23026CA/W33 23026CAK/W33 140 190 2.0 7.04
130 200 52.0 - - 2.0 374.0 610.0 1900 2600 23026CAF3 23026CAKF3 140 190 2.0 6.75
130 200 52.0 5.5 3 2.0 374.0 610.0 1900 2600 23026CAF3/W33 23026CAKF3/W33 140 190 2.0 6.75
130 200 69.0 5.5 3 2.0 477.0 815.0 1500 1900 24026C/W33 24026CK30/W33 140 190 2.0 7.95
130 200 69.0 5.5 3 2.0 477.0 815.0 1500 1900 24026CA/W33 24026CAK30/W33 140 190 2.0 8.28
130 210 64.0 8.3 4.5 2.0 489.0 780.0 1700 2200 23126C/W33 23126CK/W33 140 200 2.0 8.55
130 210 64.0 8.3 4.5 2.0 489.0 780.0 1700 2200 23126CA 23126CAKF3/W33 140 200 2.0 10.7
130 210 64.0 8.3 4.5 2.0 489.0 780.0 1700 2200 23126CA/W33 23126CAK/W33 140 200 2.0 10.7
130 210 80.0 - 4.5 2.0 587.0 1000 900 1200 24126C/W33 24126CK30/W33 140 200 2.0 11.0
130 210 80.0 8.3 4.5 2.0 587.0 1000 900 1200 24126CA/W33 24126CAK30/W33 140 200 2.0 12.0
130 230 64.0 11.1 6 3.0 546.0 800.0 1800 2400 22226/W33 - 144 216 2.5 11.0
130 230 64.0 11.1 6 3.0 546.0 800.0 1800 2400 22226C/W33 22226CK/W33 144 216 2.5 11.0
130 230 64.0 - - 3.0 546.0 800.0 1800 2400 22226CA 22226CAK 144 216 2.5 12.4
130 230 64.0 11.1 6 3.0 546.0 800.0 1800 2400 22226CA/W33 22226CAK/W33 144 216 2.5 12.4
130 230 64.0 - - 3.0 546.0 800.0 1800 2400 - 22226CAKF3 144 216 2.5 12.4
130 230 80.0 8.3 4.5 3.0 690.0 1060.0 1300 1700 23226C/W33 23226CK/W33 144 216 2.5 14.0
130 230 80.0 - - 3.0 690.0 1060.0 1300 1700 23226CA 23226CAK 144 216 2.5 14.0
130 230 80.0 8.3 4.5 3.0 690.0 1060.0 1300 1700 23226CA/W33 - 144 216 2.5 14.0
130 230 80.0 - - 3.0 690.0 1060.0 1300 1700 23226CAF3 23226CAKF3 144 216 2.5 14.0
130 230 80.0 12 5 3.0 690.0 1060.0 1300 1700 23226CAF3/W33 - 144 216 2.5 14.0
130 230 80.0 - - 3.0 690.0 1060.0 1300 1700 23226CAF3/HAC9S0W20X - 144 216 2.5 14.0
130 230 93.0 16.7 9 4.0 978.0 1320.0 1300 1700 22326C/W33 22326CK/W33 148 262 3.0 28.5
130 230 93.0 - - 4.0 978.0 1320.0 1300 1700 22326CA 22326CAK 148 262 3.0 28.5
130 230 93.0 - - 4.0 978.0 1320.0 1300 1700 22326CAF3 - 148 262 3.0 28.5
130 230 93.0 16.7 9 4.0 978.0 1320.0 1300 1700 22326CAF3/W33 - 148 262 3.0 28.5
130 230 93.0 16.7 9 4.0 978.0 1320.0 1300 1700 22326CA/W33 22326CAK/W33 148 262 3.0 18.3
130 230 93.0 - - 4.0 978.0 1320.0 1300 1700 22326CAQ1/HA - 148 262 3.0 18.3
140 210 53.0 8.3 4.5 2.0 397.0 680.0 1800 2400 23028C/W33 23028CK/W33 150 200 2.0 6.55
140 210 53.0 - - 2.0 397.0 680.0 1800 2400 23028CA 23028CAK 150 200 2.0 6.55
140 210 53.0 - - 2.0 397.0 680.0 1800 2400 23028CAF3 23028CAKF3 150 200 2.0 6.55
140 210 53.0 8.3 4.5 2.0 397.0 680.0 1800 2400 23028CA/W33 23028CAK/W33 150 200 2.0 6.70
140 210 69.0 5.5 3 2.0 495.0 900.0 1400 1800 24028C/W33 24028CK30/W33 150 200 2.0 8.45
140 210 69.0 5.5 3 2.0 495.0 900.0 1400 1800 24028CA/W33 24028CAK30/W33 150 200 2.0 8.65
140 225 68.0 8.3 4.5 2.1 546.0 900.0 1600 2000 23128C/W33 23128CK/W33 152 213 2.0 10.5
140 225 68.0 - - 2.1 546.0 900.0 1600 2000 23128CA - 152 213 2.0 10.9
140 225 68.0 8.3 4.5 2.1 546.0 900.0 1600 2000 23128CA/W33 23128CAK/W33 152 213 2.0 10.9
140 225 85.0 8.3 4.5 2.1 673.0 1160.0 850 1100 24128C/W33 24128CK/W33 152 213 2.0 13.0
140 225 85.0 8.3 4.5 2.1 673.0 1160.0 850 1100 24128CA 24128CAK30/W33 152 213 2.0 13.5
140 225 85.0 - - 2.1 673.0 1160.0 850 1100 24128CAF3 - 152 213 2.0 13.5
140 225 85.0 8.3 4.5 2.1 673.0 1160.0 850 1100 24128CA/W33 24128CAK/W33 152 213 2.0 13.5
140 250 68.0 11.1 6 3.0 610.0 900.0 1700 2200 22228C/W33 22228CK/W33 154 236 2.5 14.0
140 250 68.0 - - 3.0 610.0 900.0 1700 2200 22228CA 22228CAK 154 236 2.5 16.2
140 250 68.0 11.1 6 3.0 610.0 900.0 1700 2200 22228CA/W33 22228CAK/W33 154 236 2.5 16.2
140 250 68.0 - - 3.0 610.0 900.0 1700 2200 22228CAF3 - 154 236 2.5 15.6
140 250 68.0 11.1 6 3.0 610.0 900.0 1700 2200 22228CAF3/W33 22228CAKF3/W33 154 236 2.5 15.6
140 250 88.0 11.1 6 3.0 799.0 1250.0 1200 1600 23228C/W33 23228CK/W33 154 236 2.5 18.5
140 250 88.0 11.1 6 3.0 799.0 1250.0 1200 1600 23228CA/W33 23228CAK/W33 154 236 2.5 19.7
140 250 88.0 11.1 6 3.0 799.0 1250.0 1200 1600 23228CAF3/W33 - 154 236 2.5 19.3
140 300 102.0 - - 3.7 1130.0 1560.0 1100 1500 22328 - - - - -
140 300 102.0 16.7 9 4.0 1130.0 1560.0 1100 1500 22328C/W33 22328CK/W33 158 282 3.0 34.5
140 300 102.0 - - 4.0 1130.0 1560.0 1100 1500 22328CA 22328CAK 158 282 3.0 36.2
140 300 102.0 16.7 9 4.0 1130.0 1560.0 1100 1500 22328CA/W33 22328CAK/W33 158 282 3.0 36.2
140 300 102.0 - - 4.0 1130.0 1560.0 1100 1500 22328CAF3 - 158 282 3.0 36.2
140 300 102.0 - - 4.0 1130.0 1560.0 1100 1500 22328CAQ1/HA - 158 282 3.0 36.2
150 225 56.0 - - 2.1 437.0 750.0 1700 2200 23030 23030K 162 213 2.0 7.44
150 225 56.0 8.3 4.5 2.1 437.0 750.0 1700 2200 23030C/W33 23030CK/W33 162 213 2.0 7.95
150 225 56.0 - - 2.1 437.0 750.0 1700 2200 23030CA - 162 213 2.0 8.01
150 225 56.0 - - 2.1 437.0 750.0 1700 2200 23030CAF3 - 162 213 2.0 8.01
150 225 56.0 8.3 4.5 2.1 437.0 750.0 1700 2200 23030CA/W33 23030CAK/W33 162 213 2.0 8.01
150 225 75.0 5.5 3 2.1 564.0 1040.0 1300 1700 24030C/W33 24030CK30/W33 162 213 2.0 10.5
150 225 75.0 5.5 3 2.1 564.0 1040.0 1300 1700 24030CA/W33 24030CAK30/W33 162 213 2.0 9.39
150 250 80.0 11.1 6 2.1 725.0 1200.0 1400 1800 23130/W33 - 162 238 2.0 16.0
150 250 80.0 11.1 6 2.1 725.0 1200.0 1400 1800 23130C/W33 23130CK/W33 162 238 2.0 16.0
150 250 80.0 - - 2.1 725.0 1200.0 1400 1800 23130CA 23130CAK 162 238 2.0 16.5
150 250 80.0 11.1 6 2.1 725.0 1200.0 1400 1800 23130CA/W33 23130CAK/W33 162 238 2.0 16.5
150 250 80.0 - - 2.1 725.0 1200.0 1400 1800 23130CAF3 - 162 238 2.0 16.5
150 250 80.0 11.1 6 2.1 725.0 1200.0 1400 1800 23130CAF3/W33 23130CAKF3/W33 162 238 2.0 16.5
150 250 100.0 8.3 4.5 2.1 897.0 1530.0 800 1000 24130C/W33 24130CK30/W33 162 238 2.0 19.5
150 250 100.0 8.3 4.5 2.1 897.0 1530.0 800 1000 24130CA/W33 24130CAK30/W33 162 238 2.0 21.0
150 270 73.0 13.9 7.5 3.0 736.0 1080.0 1600 2000 22230/W33 - 164 256 2.5 18.0
150 270 73.0 13.9 7.5 3.0 736.0 1080.0 1600 2000 22230C/W33 22230CK/W33 164 256 2.5 18.0
150 270 73.0 - - 3.0 736.0 1080.0 1600 2000 22230CA 22230CAK 164 256 2.5 18.0
150 270 73.0 - - 3.0 736.0 1080.0 1600 2000 22230CAF3 - 164 256 2.5 18.0
150 270 73.0 13.9 7.5 3.0 736.0 1080.0 1600 2000 22230CA/W33 22230CAK/W33 164 256 2.5 18.7
150 270 96.0 - - 3.0 937.0 1460.0 1100 1500 23230 - 164 256 2.5 24.0
150 270 96.0 11.1 6 3.0 937.0 1460.0 1100 1500 23230C/W33 23230CK/W33 164 256 2.5 24.0
150 270 96.0 - - 3.0 937.0 1460.0 1100 1500 23230CA - 164 256 2.5 24.0

Boundary dimensions
mm		 Load rating
kN		 Limiting speed
r/min		 Bearing numbers Mounting dimensions
mm		 Weight
(reference)
(Tapered bore)
kg
d D B b k r1,2 Cr Cor Grease Oil Cylindrical bore Tapered bore da
max		 Da
max		 ra
max
150 270 96.0 11.1 6 3.0 937.0 1460.0 1100 1500 23230CA/W33 23230CAK/W33 164 256 2.5 26.6
150 320 108.0 16.7 9 4.0 1270.0 1760.0 1000 1400 22330C/W33 22330CK/W33 168 302 3.0 41.5
150 320 108.0 - - 4.0 1270.0 1760.0 1000 1400 22330CA 22330CAK 168 302 3.0 42.7
150 320 108.0 16.7 9 4.0 1270.0 1760.0 1000 1400 22330CA/W33 22330CAK/W33 168 302 3.0 42.7
150 320 108.0 - - 4.0 1270.0 1760.0 1000 1400 - 22330CAKF3 168 302 3.0 42.7
160 240 60.0 - - 2.1 506.0 880.0 1700 2200 23032 23032K 172 228 2.0 8.86
160 240 60.0 11.1 6 2.1 506.0 880.0 1700 2200 23032C/W33 23032CK/W33 172 228 2.0 9.70
160 240 60.0 - - 2.1 506.0 880.0 1700 2200 23032CA - 172 228 2.0 10.0
160 240 60.0 11.1 6 2.1 506.0 880.0 1700 2200 23032CA/W33 23032CAK/W33 172 228 2.0 10.0
160 240 60.0 - - 2.1 506.0 880.0 1700 2200 23032CAF3 - 172 228 2.0 9.97
160 240 80.0 8.3 4.5 2.1 656.0 1200.0 1100 1500 24032C/W33 24032CK30/W33 172 228 2.0 13.0
160 240 80.0 8.3 4.5 2.1 656.0 1200.0 1100 1500 24032CA/W33 24032CAK30/W33 172 228 2.0 13.2
160 240 80.0 8.3 4.5 2.1 656.0 1200.0 1100 1500 24032CAF3/W33 24032CAK30F3 172 228 2.0 13.2
160 240 80.0 8.3 4.5 2.1 656.0 1200.0 1100 1500 - 24032CAK30/W33 172 228 2.0 13.2
160 270 86.0 13.9 7.5 2.1 845.0 1370.0 1300 1700 23132C/W33 23132CK/W33 172 258 2.0 20.5
160 270 86.0 - - 2.1 845.0 1370.0 1300 1700 23132CA 23132CAK 172 258 2.0 21.9
160 270 86.0 13.9 7.5 2.1 845.0 1370.0 1300 1700 23132CA/W33 23132CAK/W33 172 258 2.0 21.9
160 270 86.0 - - 2.1 845.0 1370.0 1300 1700 23132CAF3 - 172 258 2.0 21.9
160 270 109.0 8.3 4.5 2.1 1040.0 1760.0 700 900 24132C/W33 24132CK30/W33 172 258 2.0 25.0
160 270 109.0 8.3 4.5 2.1 1040.0 1760.0 700 900 24132CA/W33 24132CAK30/W33 172 258 2.0 24.6
160 270 109.0 8.3 4.5 2.1 1040.0 1760.0 700 900 24132CA/W33X - 172 258 2.0 24.6
160 270 109.0 - - 2.1 1040.0 1760.0 700 900 24132CA/HAC9S0W20X - 172 258 2.0 24.6
160 290 80.0 13.9 7.5 3.0 863.0 1290.0 1500 1900 22232C/W33 22232CK/W33 174 276 2.5 22.5
160 290 80.0 - - 3.0 863.0 1290.0 1500 1900 22232CA 22232CAK 174 276 2.5 24.6
160 290 80.0 13.9 7.5 3.0 863.0 1290.0 1500 1900 22232CA/W33 22232CAK/W33 174 276 2.5 24.6
160 290 80.0 - - 3.0 863.0 1290.0 1500 1900 22232CAF3 - 174 276 2.5 24.6
160 290 104.0 - - 3.0 1070.0 1660.0 1000 1400 23232 - 174 276 2.5 30.0
160 290 104.0 13.9 7.5 3.0 1070.0 1660.0 1000 1400 23232/W33 - 174 276 2.5 30.2
160 290 104.0 13.9 7.5 3.0 1070.0 1660.0 1000 1400 23232C/W33 23232CK/W33 174 276 2.5 30.0
160 290 104.0 - - 3.0 1070.0 1660.0 1000 1400 23232CA 23232CAK 174 276 2.5 30.2
160 290 104.0 13.9 7.5 3.0 1070.0 1660.0 1000 1400 23232CA/W33 23232CAK/W33 174 276 2.5 30.2
160 340 114.0 - - 4.0 1380.0 1960.0 950 1300 22332 - 178 322 3.0 50.0
160 340 114.0 16.7 9 4.0 1380.0 1960.0 950 1300 22332C/W33 22332CK/W33 178 322 3.0 50.0
160 340 114.0 - - 4.0 1380.0 1960.0 950 1300 22332CA 22332CAK 178 322 3.0 50.0
160 340 114.0 16.7 9 4.0 1380.0 1960.0 950 1300 22332CA/W33 22332CAK/W33 178 322 3.0 52.8
160 340 114.0 - - 4.0 1380.0 1960.0 950 1300 22332CAF3 - 178 322 3.0 52.5
160 340 114.0 16.7 9 4.0 1380.0 1960.0 950 1300 22332CAF3/W33 22332CAKF3/W33 178 322 3.0 52.5
170 260 67.0 - - 2.1 621.0 1060.0 1600 2000 23034 23034K 182 248 2.0 13.0
170 260 67.0 11.1 6 2.1 621.0 1060.0 1600 2000 23034C/W33 23034CK/W33 182 248 2.0 13.0
170 260 67.0 - - 2.1 621.0 1060.0 1600 2000 23034CA 23034CAK 182 248 2.0 13.0
170 260 67.0 11.1 6 2.1 621.0 1060.0 1600 2000 23034CA/W33 23034CAK/W33 182 248 2.0 14.1
170 260 67.0 - - 2.1 621.0 1060.0 1600 2000 23034CAF3 - 182 248 2.0 13.0
170 260 90.0 8.3 4.5 2.1 799.0 1460.0 1000 1400 24034C/W33 24034CK30/W33 182 248 2.0 17.5
170 260 90.0 8.3 4.5 2.1 799.0 1460.0 1000 1400 24034CA/W33 24034CAK30/W33 182 248 2.0 17.8
170 280 88.0 13.9 7.5 2.1 897.0 1500.0 1200 1600 23134C/W33 23134CK/W33 182 268 2.0 21.5
170 280 88.0 - - 2.1 897.0 1500.0 1200 1600 23134CA 23134CAK 182 268 2.0 26.1
170 280 88.0 13.9 7.5 2.1 897.0 1500.0 1200 1600 23134CA/W33 23134CAK/W33 182 268 2.0 26.1
170 280 88.0 - - 2.1 897.0 1500.0 1200 1600 - 23134CAKF3 182 268 2.0 24.6
170 280 109.0 8.3 5.0 2.1 1070.0 1860.0 670 850 24134CA/HCW33YA2 - 182 268 2.0 26.5
170 280 109.0 8.3 4.5 2.1 1070.0 1860.0 670 850 24134C/W33 24134CK30/W33 182 268 2.0 26.5
170 280 109.0 8.3 4.5 2.1 1070.0 1860.0 670 850 24134CA/W33 24134CAK30/W33 182 268 2.0 24.8
170 310 86.0 16.7 9 4.0 978.0 1460.0 1300 1700 22234C/W33 22234CK/W33 188 292 3.0 28.5
170 310 86.0 - - 4.0 978.0 1460.0 1300 1700 22234CA 22234CAK 188 292 3.0 28.6
170 310 86.0 16.7 9 4.0 978.0 1460.0 1300 1700 22234CA/W33 22234CAK/W33 188 292 3.0 28.6
170 310 110.0 13.9 7.5 4.0 1220.0 1930.0 950 1300 23234C/W33 23234CK/W33 188 292 3.0 36.5
170 310 110.0 - - 4.0 1220.0 1930.0 950 1300 23234CA - 188 292 3.0 38.0
170 310 110.0 13.9 7.5 4.0 1220.0 1930.0 950 1300 23234CAF3/W33 - 188 292 3.0 38.0
170 310 110.0 13.9 7.5 4.0 1220.0 1930.0 950 1300 23234CA/W33 23234CAK/W33 188 292 3.0 38.0
170 360 120.0 - - 4.0 1540.0 2160.0 950 1300 22334C/YA7 - 188 342 3.0 59.7
170 360 120.0 16.7 9 4.0 1540.0 2160.0 950 1300 22334C/W33 22334CK/W33 188 342 3.0 58.5
170 360 120.0 - - 4.0 1540.0 2160.0 950 1300 22334CA - 188 342 3.0 62.6
170 360 120.0 16.7 9 4.0 1540.0 2160.0 950 1300 22334CA/W33 22334CAK/W33 188 342 3.0 62.6
180 250 52.0 5.5 3 2.0 431.0 830.0 1700 2200 23936C/W33 23936CK/W33 190 240 2.0 8.20
180 250 52.0 5.5 3 2.0 431.0 830.0 1700 2200 23936CA/W33 23936CAK/W33 190 240 2.0 9.17
180 250 52.0 5.5 3 2.0 431.0 830.0 1700 2200 23936CAF3/W33 - 190 240 2.0 9.17
180 280 74.0 13.9 7.5 2.1 725.0 1250.0 1400 1800 23036C/W33 23036CK/W33 192 268 2.0 17.0
180 280 74.0 - - 2.1 725.0 1250.0 1400 1800 23036CA - 192 268 2.0 17.0
180 280 74.0 - - 2.1 725.0 1250.0 1400 1800 23036CAF3 - 192 268 2.0 17.0
180 280 74.0 13.9 7.5 2.1 725.0 1250.0 1400 1800 23036CA/W33 23036CAK/W33 192 268 2.0 17.7
180 280 100.0 8.3 4.5 2.1 937.0 1730.0 950 1300 24036C/W33 24036CK30/W33 192 268 2.0 23.0
180 280 100.0 - - 2.1 937.0 1730.0 950 1300 24036CA - 192 268 2.0 26.6
180 280 100.0 8.3 4.5 2.1 937.0 1730.0 950 1300 24036CA/W33 24036CAK30/W33 192 268 2.0 26.6
180 280 100.0 8.3 4.5 2.1 937.0 1730.0 950 1300 24036CAF3/W33 24036CAK30F3/W33 192 268 2.0 26.6
180 300 96.0 13.9 7.5 3.0 1050.0 1760.0 1100 1500 23136C/W33 23136CK/W33 194 286 2.5 27.5
180 300 96.0 - - 3.0 1050.0 1760.0 1100 1500 23136CA 23136CAK 194 286 2.5 27.1
180 300 96.0 13.9 7.5 3.0 1050.0 1760.0 1100 1500 23136CA/W33 23136CAK/W33 194 286 2.5 27.1
180 300 96.0 - - 3.0 1050.0 1760.0 1100 1500 23136CAF3 - 194 286 2.5 27.1
180 300 118.0 11.1 6 3.0 1220.0 2160.0 630 800 24136C/W33 24136CK30/W33 194 286 2.5 33.5
180 300 118.0 - - 3.0 1220.0 2160.0 630 800 24136CA - 194 286 2.5 33.0
180 300 118.0 11.1 6 3.0 1220.0 2160.0 630 800 24136CA/W33 24136CAK30/W33 194 286 2.5 33.0
180 300 118.0 - - 3.0 1220.0 2160.0 630 800 24136CAQ1 - 194 286 2.5 33.0
180 320 86.0 16.7 9 4.0 1010.0 1560.0 1300 1700 22236C/W33 22236CK/W33 198 302 3.0 29.5
180 320 86.0 - - 4.0 1010.0 1560.0 1300 1700 22236CA 22236CAK 198 302 3.0 29.4
180 320 86.0 16.7 9 4.0 1010.0 1560.0 1300 1700 22236CA/W33 22236CAK/W33 198 302 3.0 29.4
180 320 86.0 - - 4.0 1010.0 1560.0 1300 1700 22236CAF3 22236CAKF3 198 302 3.0 29.4
180 320 86.0 - - 4.0 1010.0 1560.0 1300 1700 22236CAQ1 - 198 302 3.0 29.4
180 320 112.0 13.9 7.5 4.0 1290.0 2120.0 900 1200 23236C/W33 23236CK/W33 198 302 3.0 39.0
180 320 112.0 13.9 7.5 4.0 1290.0 2120.0 900 1200 23236CA 23236CAK/W33 198 302 3.0 29.4
180 320 112.0 13.9 7.5 4.0 1290.0 2120.0 900 1200 23236CA/HCW33 - 198 302 3.0 29.4
180 320 112.0 13.9 7.5 4.0 1290.0 2120.0 900 1200 23236CA/HCW33YA2 - 198 302 3.0 29.4
180 320 112.0 13.9 7.5 4.0 1290.0 2120.0 900 1200 23236CAF3 23236CAKF3/W33 198 302 3.0 29.4
180 320 112.0 13.9 7.5 4.0 1290.0 2120.0 900 1200 23236CAF3/W33 - 198 302 3.0 39.0
180 320 112.0 13.9 7.5 4.0 1290.0 2120.0 900 1200 23236CA/W33 23236CAK/W33 198 302 3.0 38.7
180 380 126.0 22.3 12 4.0 1730.0 2450.0 900 1200 22336C/W33 22336CK/W33 198 362 3.0 69.0
180 380 126.0 - - 4.0 1730.0 2450.0 900 1200 22336CA 22336CAK 198 362 3.0 72.2
180 380 126.0 22.3 12 4.0 1730.0 2450.0 900 1200 22336CA/W33 22336CAK/W33 198 362 3.0 72.2
180 380 126.0 22.3 12 4.0 1730.0 2450.0 900 1200 22336CAF3/W33 - 198 362 3.0 72.2
190 260 52.0 5.5 3 2.0 414.0 800.0 1700 2200 23938C/W33 23938CK/W33 200 250 2.0 8.40
190 260 52.0 5.5 3 2.0 414.0 800.0 1700 2200 23938CA/W33 23938CAK/W33 200 250 2.0 9.20
190 290 75.0 - - 2.1 753.0 1340.0 1300 1700 23038 - 202 278 2.0 18.0
190 290 75.0 13.9 7.5 2.1 753.0 1340.0 1300 1700 23038C/W33 23038CK/W33 202 278 2.0 18.0
190 290 75.0 13.9 7.5 2.1 753.0 1340.0 1300 1700 23038CA/W33 23038CAK/W33 202 278 2.0 17.3
190 290 75.0 - - 2.1 753.0 1340.0 1300 1700 23038CAF3 - 202 278 2.0 18.0
190 290 100.0 8.3 4.5 2.1 978.0 1800.0 950 1300 24038C/W33 24038CK30/W33 202 278 2.0 24.0
190 290 100.0 - - 2.1 978.0 1800.0 950 1300 24038CA - 202 278 2.0 22.9
190 290 100.0 8.3 4.5 2.1 978.0 1800.0 950 1300 24038CA/W33 24038CAK30/W33 202 278 2.0 22.9
190 290 100.0 - - 2.1 978.0 1800.0 950 1300 24038CAF3 - 202 278 2.0 22.9
190 320 104.0 13.9 7.5 3.0 1200.0 2080.0 1000 1400 23138C/W33 23138CK/W33 204 306 2.5 34.5
190 320 104.0 - - 3.0 1200.0 2080.0 1000 1400 23138CA - 204 306 2.5 34.3
190 320 104.0 13.9 7.5 3.0 1200.0 2080.0 1000 1400 23138CA/W33 23138CAK/W33 204 306 2.5 34.3
190 320 128.0 11.1 6 3.0 1400.0 2500.0 600 750 24138C/W33 24138CK30/W33 204 306 2.5 42.0
190 320 128.0 - - 3.0 1400.0 2500.0 600 750 24138CA - 204 306 2.5 41.9
190 320 128.0 11.1 6 3.0 1400.0 2500.0 600 750 24138CA/W33 24138CAK30/W33 204 306 2.5 41.9
190 320 128.0 11.1 6 3.0 1400.0 2500.0 600 750 24138CAF3 24138CAK30/W33 204 306 2.5 41.9
190 340 92.0 - - 4.0 1110.0 1700.0 1200 1600 22238 - 208 322 3.0 37.4
190 340 92.0 16.7 9 4.0 1110.0 1700.0 1200 1600 22238/W33 - 208 322 3.0 37.4
190 340 92.0 16.7 9 4.0 1110.0 1700.0 1200 1600 22238C/W33 22238CK/W33 208 322 3.0 36.5
190 340 92.0 16.7 9 4.0 1110.0 1700.0 1200 1600 22238CA/W33 22238CAK/W33 208 322 3.0 37.4
190 340 92.0 - - 4.0 1110.0 1700.0 1200 1600 - 22238CAK 208 322 3.0 37.4
190 340 120.0 - - 4.0 1460.0 2400.0 850 1100 22238CAF3 22238CAKF3 208 322 3.0 47.5
190 340 120.0 16.7 9 4.0 1460.0 2400.0 850 1100 23238C/W33 23238CK/W33 208 322 3.0 47.5
190 340 120.0 - - 4.0 1460.0 2400.0 850 1100 23238CA - 208 322 3.0 44.8
190 340 120.0 16.7 9 4.0 1460.0 2400.0 850 1100 23238CA/W33 23238CAK/W33 208 322 3.0 44.8
190 400 132.0 - - 5.0 1870.0 2650.0 850 1100 22338 - 212 378 4.0 80.8
190 400 132.0 22.3 12 5.0 1870.0 2650.0 850 1100 22338C/W33 22338CK/W33 212 378 4.0 80.0
190 400 132.0 - - 5.0 1870.0 2650.0 850 1100 22338CA - 212 378 4.0 82.2
190 400 132.0 22.3 12 5.0 1870.0 2650.0 850 1100 22338CA/W33 22338CAK/W33 212 378 4.0 82.2
190 400 132.0 - - 5.0 1870.0 2650.0 850 1100 22338CAF3 - 212 378 4.0 82.2
200 280 60.0 8.3 4.5 2.1 546.0 1040.0 1600 2000 23940C/W33 23940CK/W33 212 268 2.0 11.5
200 280 60.0 8.3 4.5 2.1 546.0 1040.0 1600 2000 23940CA/W33 23940CAK/W33 212 268 2.0 12.1
200 280 60.0 8.3 4.5 2.1 546.0 1040.0 1600 2000 23940CAF3/W33 - 212 268 2.0 12.1
200 310 82.0 13.9 7.5 2.1 880.0 1530.0 1200 1600 23040C/W33 23040CK/W33 212 298 2.0 23.0
200 310 82.0 - - 2.1 880.0 1530.0 1200 1600 23040CA 23040CAK 212 298 2.0 22.6
200 310 82.0 13.9 7.5 2.1 880.0 1530.0 1200 1600 23040CA/W33 23040CAK/W33 212 298 2.0 22.6

Boundary dimensions Load rating Limiting speed Bearing numbers Mounting dimensions Weight
mm kN r/min mm (reference)
(Tapered bore)
d D B b k r1,2 Cr Cor Grease Oil Cylindrical bore Tapered bore da Da ra kg
max max max
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CK/30W33 212 298 2 30.5
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CAK30/W33 212 298 2 31.3
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CDK/W33 214 326 2.5 42.5
200 340 112 - - 3 1380 2360 950 1300 23140CA 23140CAK 214 326 2.5 43.8
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CAK/W33 214 326 2.5 43.8
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CK30/W33 214 326 2.5 52
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CAK30/W33 214 326 2.5 52.1
200 360 98 - - 4 1270 1930 1100 1500 22240 - 218 342 3 43.5
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CK/W33 218 342 3 43.5
200 360 98 - - 4 1270 1930 1100 1500 22240CA 22240CAK 218 342 3 44.7
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CAK/W33 218 342 3 44.7
200 360 98 - - 4 1270 1930 1100 1500 22240CAF3 22240CAKF3 218 342 3 44.7
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 23240CK/W33 218 342 3 57
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 22340CAK/W33 218 342 3 53.4
200 360 128 - - 4 1610 2700 850 1100 - 23240CAK 218 342 3 53.4
200 420 138 22.3 12 5 2020 2900 850 1100 22340C/W33 22340CK/W33 222 398 4 92.5
200 420 138 - - 5 2020 2900 850 1100 22340CA 22340CAK 222 398 4 97
200 420 138 22.3 12 5 2020 2900 850 1100 22340CA/W33 22340CAK/W33 222 398 4 97
200 420 138 - - 5 2020 2900 850 1100 22340CAF3 - 222 398 4 97
200 420 165 - - 5 2020 3500 750 950 23340CAF3 - 222 398 4 97
219.5 340 90 - - 3 935 1900 1100 1500 23044CA/YA2 - 234 326 2.5 31.5
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23044C/W33 23944CK/W33 232 288 2 13
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23944C/W33 23944CAK/W33 232 288 2 13
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044C/W33 23044CDK/W33 234 326 2.5 30.5
220 340 90 - - 3 1050 1860 1100 1500 23044CA 23044CAK 234 326 2.5 31.6
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044CA/W33 23044CAK/W33 234 326 2.5 31.6
220 340 90 - - 3 1050 1860 1100 1500 - 23044CAKF3 234 326 2.5 31.6
220 340 118 11.1 6 3 1360 2600 850 1100 24044C/W33 24044CK30/W33 234 326 2.5 39.5
220 340 118 11.1 6 3 1360 2600 850 1100 24044CA/W33 24044CAK30/W33 234 326 2.5 39.1
220 340 118 - - 3 1360 2600 850 1100 24044CAF3 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33X - 234 326 2.5 39.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144C/W33 23144CK/W33 238 352 3 53
220 370 120 - - - 1580 2750 900 1200 23144CA 23144CAK 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/W33 23144CAK/W33 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/HG3W33 23144CAKF3/W33 238 352 3 54.6
220 370 150 11.1 6 4 1840 3350 500 630 24144C/W33 24144CK/W33 238 352 3 65
220 370 150 11.1 6 4 1840 3350 500 630 24144CA/W33 24144CAK/W33 238 352 3 -
220 400 108 16.7 9 4 1520 2360 950 1300 22244C/W33 22244CK/W33 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CA 22244CAK 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33X - 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CAF3 - 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33 22244CAK/W33 238 382 3 63.5
220 460 145 22.3 12 5 2350 3450 750 950 22344C/W33 222344CK/W33 242 438 4 120
220 460 145 22.3 12 5 2350 3450 750 950 22344CA/W33 22344CAK/W334 242 438 4 123
220 400 144 16.7 8 4 1720 3200 750 950 23244CA/W33 23244CAK/W33 238 382 3 77.3
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948C/W33 23948CK/W33 252 308 2 14
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CA/W33 23948CAK/W33 252 308 2 15
240 320 60 - - 2.1 564 1160 1300 1700 23948CAF3 - 252 308 2 15
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CAF3/W33 - 252 308 2 15
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048C/W33 23048CK/W33 254 346 2.5 33.5
240 360 92 - - 3 1130 2080 1000 1400 23048CA 23048CAK 254 346 2.5 34.2
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048CA/W33 23048CAK/W33 254 346 2.5 34.2
240 360 92 - - 3 1130 2080 1000 1400 23048CAQ1 - 254 346 2.5 34.2
240 360 118 11.1 6 3 1380 2700 800 1000 24048C/W33 24048CK/W33 254 346 2.5 42.5
240 360 118 - - 3 1380 2700 800 1000 24048CA 24048CAK30 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33X - 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33 24048CAK30/W33 254 346 2.5 46.5
240 400 128 16.7 9 4 1790 3200 850 1100 23148C/W33 23148CK/W33 258 382 3 65.5
240 400 128 - - 4 1790 3200 850 1100 23148CA - 258 382 3 68.2
240 400 128 16.7 9 4 1790 3200 850 1100 23148CA/W33 23148CAK/W33 258 382 3 68.2
240 400 160 11.1 6 4 2100 3900 480 600 24148C/W33 24148CK30/W33 258 382 3 80.5
240 400 160 11.1 6 4 2100 3900 480 600 24148CA 24148CAK30F3/W33 258 382 3 79
240 400 160 11.1 6 4 2100 3900 480 600 24148CA/W33 24148CAK30/W33 258 382 3 79
240 440 160 22.3 12 4 1910 3000 900 1200 22248C/W33 22248CK/W33 258 422 3 83
240 440 160 22.3 12 4 1910 3000 900 1200 22248CA/W33 22248CAK/W33 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/C9W33 - 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/W33 - 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248C/W33 23248CK/W33 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248CA/W33 23248CAK/W33 258 422 3 -
240 440 160 - - 4 2530 4300 670 850 23248CAF3 - 258 422 3 -
241 360 92 - - 3 985 2080 1000 1400 23048CAQ1/YA2 - 254 346 2.5 34
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952C/W33 23952CK/W33 272 348 2 24
260 360 75 - - 2.1 880 1800 1100 1500 23952CA - 272 348 2 21.6
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952CA/W33 23952CAK/W33 272 348 2 21.6
260 400 104 16.7 9 4 1400 2550 900 1200 23052C/W33 23052CK/W33 278 382 3 48.5
260 400 104 - - 4 1400 2550 900 1200 23052CA 23052CAK 278 382 3 49.8
260 400 104 16.7 9 4 1400 2550 900 1200 23052CA/W33 23052CAK/W33 278 382 3 49.8
260 400 104 - - 4 1400 2550 900 1200 23052CAF3 - 278 382 3 49.8
260 400 104 11.1 6 4 1760 3450 700 900 24052C/W33 24052CK/W33 278 382 3 64.5
260 400 104 11.1 6 4 1760 3450 700 900 24052CA/W33 24052CAK/W33 278 382 3 66.7
260 400 104 - - 4 1760 3450 700 900 24052CAF3 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 24052CAF3/W33 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 - 24052CAK30/W33 278 382 3 66.7
260 440 144 16.7 9 4 2220 3900 800 1000 23152C/W33 23152CK/W33 278 422 3 90.5
260 440 144 - - - 2220 3900 800 1000 23152CA 23152CAK 278 422 3 88.9
260 440 144 16.7 9 4 2222 3900 800 1000 23152CA/W33 23152CAK/W33 278 422 3 88.9
260 440 144 16.7 9 4 2220 3900 800 1000 - 24152CK30/W33 278 422 3 88.9
260 440 180 13.9 7.5 4 2620 4800 430 530 24152C/W33 - 278 422 3 110
260 440 180 - - 4 2620 4800 430 530 24152CA 22252CAK 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CA/W33 - 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CAF3/W33 23252CAK/W33 278 422 3 115
260 480 130 - - 5 2280 3600 850 1100 22252CA - 278 458 4 106
260 480 130 - - 5 2280 3600 850 1100 22252CA/W33 - 282 458 4 106
260 480 174 22.3 8 5 2800 4750 630 800 23252CA/W33 23252CAK/W33 282 458 4 145
260 480 174 22.3 8 5 2800 4750 630 800 23252CAF3/W33 23252CAKT7W33 282 458 4 145
260 540 165 22.3 8 6 3000 4700 630 800 22352CAF3/W33 22352CAKF3/W33 288 512 5 184
260 380 75 11.1 6 2.1 845 1760 1000 1400 23956C/W33 23956CK/W33 292 368 2 26
280 380 75 11.1 6 2.1 845 1760 1000 1400 23956CA/W33 23956CAK/W33 292 368 2 25.7
280 380 75 11.1 6 2.1 845 1760 100 1400 23956CAQ1/W33 - 292 368 2 25.7
280 420 106 16.7 9 4 1520 2850 850 1100 23056C/W33 23056CK/W33 298 402 3 52.5
280 420 106 - - 4 1520 2850 850 1100 23056CA 23056CAK 298 402 3 56.8
280 420 106 16.7 9 4 1520 2850 850 1100 23056CA/W33 23056CAK/W33 298 402 3 56.8
280 420 140 11.1 6 4 1870 3800 670 850 24056C/W33 24056CK30/W33 298 402 3 68.5
280 420 140 11.1 6 4 1870 3800 670 850 24056CA/W33 24056CAK30/W33 298 402 3 69.2
280 420 140 - - 4 1870 3800 670 850 24056CAF3 - 298 402 3 69.2
280 420 140 11.1 6 4 1870 3800 670 850 24056CAF3/W33 24056CAK30F3/W33 298 402 3 69.2
280 460 146 - - 5 1990 4150 750 950 23156CA 23156CAK 302 438 4 104
280 460 146 16.7 8 5 1990 4150 750 950 23156CA/W33 23156CAK/W33 302 438 4 101
280 460 146 - - 5 1990 4150 750 950 23156CAF3 23156CAKF3 302 438 4 103
280 460 146 - - 5 1990 4150 750 950 23156X2CA - 302 438 4 87
280 460 180 - - 5 2220 4750 400 500 24156CA - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/W33 - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/HCW33 - 302 438 4 119
280 500 130 22.3 8 5 1990 3600 800 1000 22256CA 22256CAK/W33 302 478 4 118
280 500 130 - - 5 1990 3600 800 1000 22256CAF3 - 302 478 4 118
280 500 176 - - 5 2580 5100 600 750 2325CA - 302 478 4 147
280 500 176 - - 5 2580 5100 600 750 23256CAF3 - 302 478 4 146
280 500 176 22.3 8 5 2580 5100 600 750 23256CAF3/W33 - 302 478 4 146
280 580 175 22.3 8 6 3200 5700 600 750 2235CA/W33 - 308 552 5 221
260 540 165 22.3 8 6 3000 4700 630 800 22352CAF3/W33 22352CAKF3/W33 288 512 5 184
260 380 75 11.1 6 2.1 845 1760 1000 1400 23956C/W33 23956CK/W33 292 368 2 26
280 380 75 11.1 6 2.1 845 1760 1000 1400 23956CA/W33 23956CAK/W33 292 368 2 25.7
280 380 75 11.1 6 2.1 845 1760 100 1400 23956CAQ1/W33 - 292 368 2 25.7
280 420 106 16.7 9 4 1520 2850 850 1100 23056C/W33 23056CK/W33 298 402 3 52.5
280 420 106 - - 4 1520 2850 850 1100 23056CA 23056CAK 298 402 3 56.8
280 420 106 16.7 9 4 1520 2850 850 1100 23056CA/W33 23056CAK/W33 298 402 3 56.8
280 420 140 11.1 6 4 1870 3800 670 850 24056C/W33 24056CK30/W33 298 402 3 68.5
280 420 140 11.1 6 4 1870 3800 670 850 24056CA/W33 24056CAK30/W33 298 402 3 69.2
280 420 140 - - 4 1870 3800 670 850 24056CAF3 - 298 402 3 69.2
280 420 140 11.1 6 4 1870 3800 670 850 24056CAF3/W33 24056CAK30F3/W33 298 402 3 69.2
280 460 146 - - 5 1990 4150 750 950 23156CA 23156CAK 302 438 4 104
280 460 146 16.7 8 5 1990 4150 750 950 23156CA/W33 23156CAK/W33 302 438 4 101
280 460 146 - - 5 1990 4150 750 950 23156CAF3 23156CAKF3 302 438 4 103
280 460 146 - - 5 1990 4150 750 950 23156X2CA - 302 438 4 87
280 460 180 - - 5 2220 4750 400 500 24156CA - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/W33 - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/HCW33 - 302 438 4 119
280 500 130 22.3 8 5 1990 3600 800 1000 22256CA 22256CAK/W33 302 478 4 118
280 500 130 - - 5 1990 3600 800 1000 22256CAF3 - 302 478 4 118
280 500 176 - - 5 2580 5100 600 750 2325CA - 302 478 4 147
280 500 176 - - 5 2580 5100 600 750 23256CAF3 - 302 478 4 146
280 500 176 22.3 8 5 2580 5100 600 750 23256CAF3/W33 - 302 478 4 146
280 580 175 22.3 8 6 3200 5700 600 750 2235CA/W33 - 308 552 5 221
300 420 90 11.1 6 3 1200 2500 950 1300 23960C/W33 23960CK/W33 314 406 2.5 40.5
300 420 90 11.1 7 3 1200 2500 950 1300 23960CA/W33 23960CAK/W33 314 406 2.5 40.1
300 460 118 16.7 7 4 1610 3450 800 1000 23060CAF3/W33 - 318 442 3 74.9
300 460 118 - - 4 1610 3450 800 1000 - 23060CAK 318 442 3 73.6
300 460 118 16.7 7 4 1610 3450 800 1000 - 23060CAK/W33 318 442 3 73.6
300 460 160 - - 4 2020 2700 600 750 24060CA - 318 442 3 99
300 460 160 13.9 7 4 2020 2700 600 750 24060CA/W33 - 318 442 3 99
300 500 160 - - 5 2310 4750 670 850 23160CA - 322 478 4 126
300 500 160 - - 5 2310 4750 670 850 23160CAF3 23160CAKF3 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23160CAF3/C9W33 - 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23060CA/W33 23160CAK/W33 322 478 4 125
300 540 140 - - 5 2310 4300 750 950 22260CA - 322 518 4 138
300 540 140 - - 5 2310 4300 750 950 22260CAF3 22260CAKF3 322 518 4 138
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CK/30W33 212 298 2 30.5
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CAK30/W33 212 298 2 31.3
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CDK/W33 214 326 2.5 42.5
200 340 112 - - 3 1380 2360 950 1300 23140CA 23140CAK 214 326 2.5 43.8
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CAK/W33 214 326 2.5 43.8
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CK30/W33 214 326 2.5 52
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CAK30/W33 214 326 2.5 52.1
200 360 98 - - 4 1270 1930 1100 1500 22240 - 218 342 3 43.5
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CK/W33 218 342 3 43.5
200 360 98 - - 4 1270 1930 1100 1500 22240CA 22240CAK 218 342 3 44.7
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CAK/W33 218 342 3 44.7
200 360 98 - - 4 1270 1930 1100 1500 22240CAF3 22240CAKF3 218 342 3 44.7
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 23240CK/W33 218 342 3 57
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 22340CAK/W33 218 342 3 53.4
200 360 128 - - 4 1610 2700 850 1100 - 23240CAK 218 342 3 53.4
200 420 138 22.3 12 5 2020 2900 850 1100 22340C/W33 22340CK/W33 222 398 4 92.5
200 420 138 - - 5 2020 2900 850 1100 22340CA 22340CAK 222 398 4 97
200 420 138 22.3 12 5 2020 2900 850 1100 22340CA/W33 22340CAK/W33 222 398 4 97
200 420 138 - - 5 2020 2900 850 1100 22340CAF3 - 222 398 4 97
200 420 165 - - 5 2020 3500 750 950 23340CAF3 - 222 398 4 97
219.5 340 90 - - 3 935 1900 1100 1500 23044CA/YA2 - 234 326 2.5 31.5
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23044C/W33 23944CK/W33 232 288 2 13
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23944C/W33 23944CAK/W33 232 288 2 13
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044C/W33 23044CDK/W33 234 326 2.5 30.5
220 340 90 - - 3 1050 1860 1100 1500 23044CA 23044CAK 234 326 2.5 31.6
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044CA/W33 23044CAK/W33 234 326 2.5 31.6
220 340 90 - - 3 1050 1860 1100 1500 - 23044CAKF3 234 326 2.5 31.6
220 340 118 11.1 6 3 1360 2600 850 1100 24044C/W33 24044CK30/W33 234 326 2.5 39.5
220 340 118 11.1 6 3 1360 2600 850 1100 24044CA/W33 24044CAK30/W33 234 326 2.5 39.1
220 340 118 - - 3 1360 2600 850 1100 24044CAF3 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33X - 234 326 2.5 39.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144C/W33 23144CK/W33 238 352 3 53
220 370 120 - - - 1580 2750 900 1200 23144CA 23144CAK 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/W33 23144CAK/W33 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/HG3W33 23144CAKF3/W33 238 352 3 54.6
220 370 150 11.1 6 4 1840 3350 500 630 24144C/W33 24144CK/W33 238 352 3 65
220 370 150 11.1 6 4 1840 3350 500 630 24144CA/W33 24144CAK/W33 238 352 3 -
220 400 108 16.7 9 4 1520 2360 950 1300 22244C/W33 22244CK/W33 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CA 22244CAK 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33X - 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CAF3 - 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33 22244CAK/W33 238 382 3 63.5
220 460 145 22.3 12 5 2350 3450 750 950 22344C/W33 222344CK/W33 242 438 4 120
220 460 145 22.3 12 5 2350 3450 750 950 22344CA/W33 22344CAK/W334 242 438 4 123
220 400 144 16.7 8 4 1720 3200 750 950 23244CA/W33 23244CAK/W33 238 382 3 77.3
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948C/W33 23948CK/W33 252 308 2 14
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CA/W33 23948CAK/W33 252 308 2 15
240 320 60 - - 2.1 564 1160 1300 1700 23948CAF3 - 252 308 2 15
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CAF3/W33 - 252 308 2 15
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048C/W33 23048CK/W33 254 346 2.5 33.5
240 360 92 - - 3 1130 2080 1000 1400 23048CA 23048CAK 254 346 2.5 34.2
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048CA/W33 23048CAK/W33 254 346 2.5 34.2
240 360 92 - - 3 1130 2080 1000 1400 23048CAQ1 - 254 346 2.5 34.2
240 360 118 11.1 6 3 1380 2700 800 1000 24048C/W33 24048CK/W33 254 346 2.5 42.5
240 360 118 - - 3 1380 2700 800 1000 24048CA 24048CAK30 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33X - 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33 24048CAK30/W33 254 346 2.5 46.5
240 400 128 16.7 9 4 1790 3200 850 1100 23148C/W33 23148CK/W33 258 382 3 65.5
240 400 128 - - 4 1790 3200 850 1100 23148CA - 258 382 3 68.2
240 400 128 16.7 9 4 1790 3200 850 1100 23148CA/W33 23148CAK/W33 258 382 3 68.2
240 400 160 11.1 6 4 2100 3900 480 600 24148C/W33 24148CK30/W33 258 382 3 80.5
240 400 160 11.1 6 4 2100 3900 480 600 24148CA 24148CAK30F3/W33 258 382 3 79
240 400 160 11.1 6 4 2100 3900 480 600 24148CA/W33 24148CAK30/W33 258 382 3 79
240 440 160 22.3 12 4 1910 3000 900 1200 22248C/W33 22248CK/W33 258 422 3 83
240 440 160 22.3 12 4 1910 3000 900 1200 22248CA/W33 22248CAK/W33 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/C9W33 - 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/W33 - 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248C/W33 23248CK/W33 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248CA/W33 23248CAK/W33 258 422 3 -
240 440 160 - - 4 2530 4300 670 850 23248CAF3 - 258 422 3 -
241 360 92 - - 3 985 2080 1000 1400 23048CAQ1/YA2 - 254 346 2.5 34
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952C/W33 23952CK/W33 272 348 2 24
260 360 75 - - 2.1 880 1800 1100 1500 23952CA - 272 348 2 21.6
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952CA/W33 23952CAK/W33 272 348 2 21.6
260 400 104 16.7 9 4 1400 2550 900 1200 23052C/W33 23052CK/W33 278 382 3 48.5
260 400 104 - - 4 1400 2550 900 1200 23052CA 23052CAK 278 382 3 49.8
260 400 104 16.7 9 4 1400 2550 900 1200 23052CA/W33 23052CAK/W33 278 382 3 49.8
260 400 104 - - 4 1400 2550 900 1200 23052CAF3 - 278 382 3 49.8
260 400 104 11.1 6 4 1760 3450 700 900 24052C/W33 24052CK/W33 278 382 3 64.5
260 400 104 11.1 6 4 1760 3450 700 900 24052CA/W33 24052CAK/W33 278 382 3 66.7
260 400 104 - - 4 1760 3450 700 900 24052CAF3 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 24052CAF3/W33 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 - 24052CAK30/W33 278 382 3 66.7
260 440 144 16.7 9 4 2220 3900 800 1000 23152C/W33 23152CK/W33 278 422 3 90.5
260 440 144 - - - 2220 3900 800 1000 23152CA 23152CAK 278 422 3 88.9
260 440 144 16.7 9 4 2222 3900 800 1000 23152CA/W33 23152CAK/W33 278 422 3 88.9
260 440 144 16.7 9 4 2220 3900 800 1000 - 24152CK30/W33 278 422 3 88.9
260 440 180 13.9 7.5 4 2620 4800 430 530 24152C/W33 - 278 422 3 110
260 440 180 - - 4 2620 4800 430 530 24152CA 22252CAK 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CA/W33 - 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CAF3/W33 23252CAK/W33 278 422 3 115
260 480 130 - - 5 2280 3600 850 1100 22252CA - 278 458 4 106
260 480 130 - - 5 2280 3600 850 1100 22252CA/W33 - 282 458 4 106
260 480 174 22.3 8 5 2800 4750 630 800 23252CA/W33 23252CAK/W33 282 458 4 145
260 480 174 22.3 8 5 2800 4750 630 800 23252CAF3/W33 23252CAKT7W33 282 458 4 145
260 540 165 22.3 8 6 3000 4700 630 800 22352CAF3/W33 22352CAKF3/W33 288 512 5 184
260 380 75 11.1 6 2.1 845 1760 1000 1400 23956C/W33 23956CK/W33 292 368 2 26
280 380 75 11.1 6 2.1 845 1760 1000 1400 23956CA/W33 23956CAK/W33 292 368 2 25.7
280 380 75 11.1 6 2.1 845 1760 100 1400 23956CAQ1/W33 - 292 368 2 25.7
280 420 106 16.7 9 4 1520 2850 850 1100 23056C/W33 23056CK/W33 298 402 3 52.5
280 420 106 - - 4 1520 2850 850 1100 23056CA 23056CAK 298 402 3 56.8
280 420 106 16.7 9 4 1520 2850 850 1100 23056CA/W33 23056CAK/W33 298 402 3 56.8
280 420 140 11.1 6 4 1870 3800 670 850 24056C/W33 24056CK30/W33 298 402 3 68.5
280 420 140 11.1 6 4 1870 3800 670 850 24056CA/W33 24056CAK30/W33 298 402 3 69.2
280 420 140 - - 4 1870 3800 670 850 24056CAF3 - 298 402 3 69.2
280 420 140 11.1 6 4 1870 3800 670 850 24056CAF3/W33 24056CAK30F3/W33 298 402 3 69.2
280 460 146 - - 5 1990 4150 750 950 23156CA 23156CAK 302 438 4 104
280 460 146 16.7 8 5 1990 4150 750 950 23156CA/W33 23156CAK/W33 302 438 4 101
280 460 146 - - 5 1990 4150 750 950 23156CAF3 23156CAKF3 302 438 4 103
280 460 146 - - 5 1990 4150 750 950 23156X2CA - 302 438 4 87
280 460 180 - - 5 2220 4750 400 500 24156CA - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/W33 - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/HCW33 - 302 438 4 119
280 500 130 22.3 8 5 1990 3600 800 1000 22256CA 22256CAK/W33 302 478 4 118
280 500 130 - - 5 1990 3600 800 1000 22256CAF3 - 302 478 4 118
280 500 176 - - 5 2580 5100 600 750 2325CA - 302 478 4 147
280 500 176 - - 5 2580 5100 600 750 23256CAF3 - 302 478 4 146
280 500 176 22.3 8 5 2580 5100 600 750 23256CAF3/W33 - 302 478 4 146
280 580 175 22.3 8 6 3200 5700 600 750 2235CA/W33 - 308 552 5 221
300 420 90 11.1 6 3 1200 2500 950 1300 23960C/W33 23960CK/W33 314 406 2.5 40.5
300 420 90 11.1 7 3 1200 2500 950 1300 23960CA/W33 23960CAK/W33 314 406 2.5 40.1
300 460 118 16.7 7 4 1610 3450 800 1000 23060CAF3/W33 - 318 442 3 74.9
300 460 118 - - 4 1610 3450 800 1000 - 23060CAK 318 442 3 73.6
300 460 118 16.7 7 4 1610 3450 800 1000 - 23060CAK/W33 318 442 3 73.6
300 460 160 - - 4 2020 2700 600 750 24060CA - 318 442 3 99
300 460 160 13.9 7 4 2020 2700 600 750 24060CA/W33 - 318 442 3 99
300 500 160 - - 5 2310 4750 670 850 23160CA - 322 478 4 126
300 500 160 - - 5 2310 4750 670 850 23160CAF3 23160CAKF3 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23160CAF3/C9W33 - 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23060CA/W33 23160CAK/W33 322 478 4 125
300 540 140 - - 5 2310 4300 750 950 22260CA - 322 518 4 138
300 540 140 - - 5 2310 4300 750 950 22260CAF3 22260CAKF3 322 518 4 138
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CK/30W33 212 298 2 30.5
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CAK30/W33 212 298 2 31.3
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CDK/W33 214 326 2.5 42.5
200 340 112 - - 3 1380 2360 950 1300 23140CA 23140CAK 214 326 2.5 43.8
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CAK/W33 214 326 2.5 43.8
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CK30/W33 214 326 2.5 52
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CAK30/W33 214 326 2.5 52.1
200 360 98 - - 4 1270 1930 1100 1500 22240 - 218 342 3 43.5
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CK/W33 218 342 3 43.5
200 360 98 - - 4 1270 1930 1100 1500 22240CA 22240CAK 218 342 3 44.7
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CAK/W33 218 342 3 44.7
200 360 98 - - 4 1270 1930 1100 1500 22240CAF3 22240CAKF3 218 342 3 44.7
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 23240CK/W33 218 342 3 57
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 22340CAK/W33 218 342 3 53.4
200 360 128 - - 4 1610 2700 850 1100 - 23240CAK 218 342 3 53.4
200 420 138 22.3 12 5 2020 2900 850 1100 22340C/W33 22340CK/W33 222 398 4 92.5
200 420 138 - - 5 2020 2900 850 1100 22340CA 22340CAK 222 398 4 97
200 420 138 22.3 12 5 2020 2900 850 1100 22340CA/W33 22340CAK/W33 222 398 4 97
200 420 138 - - 5 2020 2900 850 1100 22340CAF3 - 222 398 4 97
200 420 165 - - 5 2020 3500 750 950 23340CAF3 - 222 398 4 97
219.5 340 90 - - 3 935 1900 1100 1500 23044CA/YA2 - 234 326 2.5 31.5
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23044C/W33 23944CK/W33 232 288 2 13
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23944C/W33 23944CAK/W33 232 288 2 13
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044C/W33 23044CDK/W33 234 326 2.5 30.5
220 340 90 - - 3 1050 1860 1100 1500 23044CA 23044CAK 234 326 2.5 31.6
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044CA/W33 23044CAK/W33 234 326 2.5 31.6
220 340 90 - - 3 1050 1860 1100 1500 - 23044CAKF3 234 326 2.5 31.6
220 340 118 11.1 6 3 1360 2600 850 1100 24044C/W33 24044CK30/W33 234 326 2.5 39.5
220 340 118 11.1 6 3 1360 2600 850 1100 24044CA/W33 24044CAK30/W33 234 326 2.5 39.1
220 340 118 - - 3 1360 2600 850 1100 24044CAF3 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33X - 234 326 2.5 39.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144C/W33 23144CK/W33 238 352 3 53
220 370 120 - - - 1580 2750 900 1200 23144CA 23144CAK 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/W33 23144CAK/W33 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/HG3W33 23144CAKF3/W33 238 352 3 54.6
220 370 150 11.1 6 4 1840 3350 500 630 24144C/W33 24144CK/W33 238 352 3 65
220 370 150 11.1 6 4 1840 3350 500 630 24144CA/W33 24144CAK/W33 238 352 3 -
220 400 108 16.7 9 4 1520 2360 950 1300 22244C/W33 22244CK/W33 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CA 22244CAK 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33X - 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CAF3 - 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33 22244CAK/W33 238 382 3 63.5
220 460 145 22.3 12 5 2350 3450 750 950 22344C/W33 222344CK/W33 242 438 4 120
220 460 145 22.3 12 5 2350 3450 750 950 22344CA/W33 22344CAK/W334 242 438 4 123
220 400 144 16.7 8 4 1720 3200 750 950 23244CA/W33 23244CAK/W33 238 382 3 77.3
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948C/W33 23948CK/W33 252 308 2 14
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CA/W33 23948CAK/W33 252 308 2 15
240 320 60 - - 2.1 564 1160 1300 1700 23948CAF3 - 252 308 2 15
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CAF3/W33 - 252 308 2 15
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048C/W33 23048CK/W33 254 346 2.5 33.5
240 360 92 - - 3 1130 2080 1000 1400 23048CA 23048CAK 254 346 2.5 34.2
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048CA/W33 23048CAK/W33 254 346 2.5 34.2
240 360 92 - - 3 1130 2080 1000 1400 23048CAQ1 - 254 346 2.5 34.2
240 360 118 11.1 6 3 1380 2700 800 1000 24048C/W33 24048CK/W33 254 346 2.5 42.5
240 360 118 - - 3 1380 2700 800 1000 24048CA 24048CAK30 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33X - 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33 24048CAK30/W33 254 346 2.5 46.5
240 400 128 16.7 9 4 1790 3200 850 1100 23148C/W33 23148CK/W33 258 382 3 65.5
240 400 128 - - 4 1790 3200 850 1100 23148CA - 258 382 3 68.2
240 400 128 16.7 9 4 1790 3200 850 1100 23148CA/W33 23148CAK/W33 258 382 3 68.2
240 400 160 11.1 6 4 2100 3900 480 600 24148C/W33 24148CK30/W33 258 382 3 80.5
240 400 160 11.1 6 4 2100 3900 480 600 24148CA 24148CAK30F3/W33 258 382 3 79
240 400 160 11.1 6 4 2100 3900 480 600 24148CA/W33 24148CAK30/W33 258 382 3 79
240 440 160 22.3 12 4 1910 3000 900 1200 22248C/W33 22248CK/W33 258 422 3 83
240 440 160 22.3 12 4 1910 3000 900 1200 22248CA/W33 22248CAK/W33 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/C9W33 - 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/W33 - 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248C/W33 23248CK/W33 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248CA/W33 23248CAK/W33 258 422 3 -
240 440 160 - - 4 2530 4300 670 850 23248CAF3 - 258 422 3 -
241 360 92 - - 3 985 2080 1000 1400 23048CAQ1/YA2 - 254 346 2.5 34
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952C/W33 23952CK/W33 272 348 2 24
260 360 75 - - 2.1 880 1800 1100 1500 23952CA - 272 348 2 21.6
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952CA/W33 23952CAK/W33 272 348 2 21.6
260 400 104 16.7 9 4 1400 2550 900 1200 23052C/W33 23052CK/W33 278 382 3 48.5
260 400 104 - - 4 1400 2550 900 1200 23052CA 23052CAK 278 382 3 49.8
260 400 104 16.7 9 4 1400 2550 900 1200 23052CA/W33 23052CAK/W33 278 382 3 49.8
260 400 104 - - 4 1400 2550 900 1200 23052CAF3 - 278 382 3 49.8
260 400 104 11.1 6 4 1760 3450 700 900 24052C/W33 24052CK/W33 278 382 3 64.5
260 400 104 11.1 6 4 1760 3450 700 900 24052CA/W33 24052CAK/W33 278 382 3 66.7
260 400 104 - - 4 1760 3450 700 900 24052CAF3 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 24052CAF3/W33 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 - 24052CAK30/W33 278 382 3 66.7
260 440 144 16.7 9 4 2220 3900 800 1000 23152C/W33 23152CK/W33 278 422 3 90.5
260 440 144 - - - 2220 3900 800 1000 23152CA 23152CAK 278 422 3 88.9
260 440 144 16.7 9 4 2222 3900 800 1000 23152CA/W33 23152CAK/W33 278 422 3 88.9
260 440 144 16.7 9 4 2220 3900 800 1000 - 24152CK30/W33 278 422 3 88.9
260 440 180 13.9 7.5 4 2620 4800 430 530 24152C/W33 - 278 422 3 110
260 440 180 - - 4 2620 4800 430 530 24152CA 22252CAK 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CA/W33 - 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CAF3/W33 23252CAK/W33 278 422 3 115
260 480 130 - - 5 2280 3600 850 1100 22252CA - 278 458 4 106
260 480 130 - - 5 2280 3600 850 1100 22252CA/W33 - 282 458 4 106
260 480 174 22.3 8 5 2800 4750 630 800 23252CA/W33 23252CAK/W33 282 458 4 145
260 480 174 22.3 8 5 2800 4750 630 800 23252CAF3/W33 23252CAKT7W33 282 458 4 145
260 540 165 22.3 8 6 3000 4700 630 800 22352CAF3/W33 22352CAKF3/W33 288 512 5 184
260 380 75 11.1 6 2.1 845 1760 1000 1400 23956C/W33 23956CK/W33 292 368 2 26
280 380 75 11.1 6 2.1 845 1760 1000 1400 23956CA/W33 23956CAK/W33 292 368 2 25.7
280 380 75 11.1 6 2.1 845 1760 100 1400 23956CAQ1/W33 - 292 368 2 25.7
280 420 106 16.7 9 4 1520 2850 850 1100 23056C/W33 23056CK/W33 298 402 3 52.5
280 420 106 - - 4 1520 2850 850 1100 23056CA 23056CAK 298 402 3 56.8
280 420 106 16.7 9 4 1520 2850 850 1100 23056CA/W33 23056CAK/W33 298 402 3 56.8
280 420 140 11.1 6 4 1870 3800 670 850 24056C/W33 24056CK30/W33 298 402 3 68.5
280 420 140 11.1 6 4 1870 3800 670 850 24056CA/W33 24056CAK30/W33 298 402 3 69.2
280 420 140 - - 4 1870 3800 670 850 24056CAF3 - 298 402 3 69.2
280 420 140 11.1 6 4 1870 3800 670 850 24056CAF3/W33 24056CAK30F3/W33 298 402 3 69.2
280 460 146 - - 5 1990 4150 750 950 23156CA 23156CAK 302 438 4 104
280 460 146 16.7 8 5 1990 4150 750 950 23156CA/W33 23156CAK/W33 302 438 4 101
280 460 146 - - 5 1990 4150 750 950 23156CAF3 23156CAKF3 302 438 4 103
280 460 146 - - 5 1990 4150 750 950 23156X2CA - 302 438 4 87
280 460 180 - - 5 2220 4750 400 500 24156CA - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/W33 - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/HCW33 - 302 438 4 119
280 500 130 22.3 8 5 1990 3600 800 1000 22256CA 22256CAK/W33 302 478 4 118
280 500 130 - - 5 1990 3600 800 1000 22256CAF3 - 302 478 4 118
280 500 176 - - 5 2580 5100 600 750 2325CA - 302 478 4 147
280 500 176 - - 5 2580 5100 600 750 23256CAF3 - 302 478 4 146
280 500 176 22.3 8 5 2580 5100 600 750 23256CAF3/W33 - 302 478 4 146
280 580 175 22.3 8 6 3200 5700 600 750 2235CA/W33 - 308 552 5 221
300 420 90 11.1 6 3 1200 2500 950 1300 23960C/W33 23960CK/W33 314 406 2.5 40.5
300 420 90 11.1 7 3 1200 2500 950 1300 23960CA/W33 23960CAK/W33 314 406 2.5 40.1
300 460 118 16.7 7 4 1610 3450 800 1000 23060CAF3/W33 - 318 442 3 74.9
300 460 118 - - 4 1610 3450 800 1000 - 23060CAK 318 442 3 73.6
300 460 118 16.7 7 4 1610 3450 800 1000 - 23060CAK/W33 318 442 3 73.6
300 460 160 - - 4 2020 2700 600 750 24060CA - 318 442 3 99
300 460 160 13.9 7 4 2020 2700 600 750 24060CA/W33 - 318 442 3 99
300 500 160 - - 5 2310 4750 670 850 23160CA - 322 478 4 126
300 500 160 - - 5 2310 4750 670 850 23160CAF3 23160CAKF3 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23160CAF3/C9W33 - 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23060CA/W33 23160CAK/W33 322 478 4 125
300 540 140 - - 5 2310 4300 750 950 22260CA - 322 518 4 138
300 540 140 - - 5 2310 4300 750 950 22260CAF3 22260CAKF3 322 518 4 138

Boundary dimensions

mm		 Load rating

kN		 Limiting speed

r/min		 Bearing numbers Mounting dimensions

mm		 Weight
(reference)
(Tapered bore)
kg
d D B b k r1,2 Cr Cor Grease Oil Cylindrical bore Tapered bore da

max		 Da

max		 ra

max
25 52 18.0 - - 1.0 35.7 35.7 8500 11000 22205C 22205CK 31 46 1.0 0.18
25 52 18.0 - - 1.0 43.1 44.0 8500 11000 22205CA 22205CAK 31 46 1.0 0.18
25 62 17.0 - - 1.1 41.4 41.5 6700 8500 21305C 21305CK 32 55 1.0 0.25
30 62 20.0 - - 1.0 48.9 52.0 7500 9500 22206C 22206CK 36 56 1.0 0.28
30 62 20.0 - - 1.0 48.9 52.0 7500 9500 22206CA 22206CAK 36 56 1.0 0.32
30 72 19.0 - - 1.1 55.2 61.0 6000 7500 21306C 21306CK 37 65 1.0 0.38
35 72 23.0 - - 1.1 67.3 73.5 6300 8000 22207C 22207CK 42 65 1.0 0.43
35 72 23.0 - - 1.1 67.3 73.5 6300 8000 22207CA 22207CAK 42 65 1.0 0.46
35 80 21.0 - - 1.5 65.6 72.0 5300 6700 21307C 21307CK 44 71 1.5 0.51
40 80 23.0 - - 1.1 73.6 81.5 6000 7500 22208C 22208CK 47 73 1.0 0.52
40 80 23.0 - - 1.1 73.6 81.5 6000 7500 22208CA 22208CAK 47 73 1.0 0.54
40 90 23.0 - - 1.5 82.8 98.0 4500 5600 21308C 21308CK 49 81 1.5 0.71
40 90 33.0 - - 1.5 115.0 112.0 4500 5600 22308C 22308CK 49 81 1.5 1.00
40 90 33.0 - - 1.5 115.0 112.0 4500 5600 22308CA 22308CAK 49 81 1.5 1.01
45 85 23.0 - - 1.1 77.1 88.0 5300 6700 22209C 22209CK 52 78 1.0 0.56
45 85 23.0 - - 1.1 77.1 88.0 5300 6700 22209CA 22209CAK 52 78 1.0 0.629
45 100 25.0 - - 1.5 101.0 114.0 4300 5300 21309C 21309CK 54 91 1.5 0.95
45 100 36.0 - - 1.5 138.0 160.0 3800 4800 22309C 22309CK 54 91 1.5 1.35
45 100 36.0 - - 1.5 138.0 160.0 3800 4800 22309CA 22309CAK 54 91 1.5 1.52
50 90 23.0 - - 1.1 84.5 100.0 5000 6300 22210C 22210CK 57 83 1.0 0.60
50 90 23.0 - - 1.1 84.5 100.0 5000 6300 22210CA 22210CAK 57 83 1.0 0.63
50 90 23.0 5.5 2 1.1 84.5 100.0 5000 6300 22210CA/W33 - 57 83 1.0 0.63
50 110 27.0 - - 2.0 120.0 140.0 3600 4800 21310C 21310CK 60 100 2.0 1.20
50 110 40.0 - - 2.0 157.0 258.0 3400 4300 22310 22310K 60 100 2.0 2.10
50 110 40.0 - - 2.0 176.0 200.0 3400 4300 22310C 2231CK 60 100 2.0 1.85
50 110 40.0 - - 2.0 176.0 200.0 3400 4300 22310CA 2231CAK 60 100 2.0 2.17
50 110 40.0 5.5 2.5 2.0 176.0 200.0 3400 4300 22310CA/W33 22310CAK/W33 60 100 2.0 2.17
55 100 25.0 - - 1.5 99.5 118.0 4500 5600 22211C 22211CK 64 91 1.5 0.82
55 100 25.0 - - 1.5 99.5 118.0 4500 5600 22211CA 22211CAK 64 91 1.5 0.887

Boundary dimensions Load rating Limiting speed Bearing numbers Mounting dimensions Weight
mm kN r/min mm (reference)
(Tapered bore)
d D B b k r1,2 Cr Cor Grease Oil Cylindrical bore Tapered bore da Da ra kg
max max max
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CK/30W33 212 298 2 30.5
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CAK30/W33 212 298 2 31.3
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CDK/W33 214 326 2.5 42.5
200 340 112 - - 3 1380 2360 950 1300 23140CA 23140CAK 214 326 2.5 43.8
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CAK/W33 214 326 2.5 43.8
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CK30/W33 214 326 2.5 52
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CAK30/W33 214 326 2.5 52.1
200 360 98 - - 4 1270 1930 1100 1500 22240 - 218 342 3 43.5
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CK/W33 218 342 3 43.5
200 360 98 - - 4 1270 1930 1100 1500 22240CA 22240CAK 218 342 3 44.7
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CAK/W33 218 342 3 44.7
200 360 98 - - 4 1270 1930 1100 1500 22240CAF3 22240CAKF3 218 342 3 44.7
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 23240CK/W33 218 342 3 57
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 22340CAK/W33 218 342 3 53.4
200 360 128 - - 4 1610 2700 850 1100 - 23240CAK 218 342 3 53.4
200 420 138 22.3 12 5 2020 2900 850 1100 22340C/W33 22340CK/W33 222 398 4 92.5
200 420 138 - - 5 2020 2900 850 1100 22340CA 22340CAK 222 398 4 97
200 420 138 22.3 12 5 2020 2900 850 1100 22340CA/W33 22340CAK/W33 222 398 4 97
200 420 138 - - 5 2020 2900 850 1100 22340CAF3 - 222 398 4 97
200 420 165 - - 5 2020 3500 750 950 23340CAF3 - 222 398 4 97
219.5 340 90 - - 3 935 1900 1100 1500 23044CA/YA2 - 234 326 2.5 31.5
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23044C/W33 23944CK/W33 232 288 2 13
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23944C/W33 23944CAK/W33 232 288 2 13
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044C/W33 23044CDK/W33 234 326 2.5 30.5
220 340 90 - - 3 1050 1860 1100 1500 23044CA 23044CAK 234 326 2.5 31.6
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044CA/W33 23044CAK/W33 234 326 2.5 31.6
220 340 90 - - 3 1050 1860 1100 1500 - 23044CAKF3 234 326 2.5 31.6
220 340 118 11.1 6 3 1360 2600 850 1100 24044C/W33 24044CK30/W33 234 326 2.5 39.5
220 340 118 11.1 6 3 1360 2600 850 1100 24044CA/W33 24044CAK30/W33 234 326 2.5 39.1
220 340 118 - - 3 1360 2600 850 1100 24044CAF3 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33X - 234 326 2.5 39.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144C/W33 23144CK/W33 238 352 3 53
220 370 120 - - - 1580 2750 900 1200 23144CA 23144CAK 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/W33 23144CAK/W33 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/HG3W33 23144CAKF3/W33 238 352 3 54.6
220 370 150 11.1 6 4 1840 3350 500 630 24144C/W33 24144CK/W33 238 352 3 65
220 370 150 11.1 6 4 1840 3350 500 630 24144CA/W33 24144CAK/W33 238 352 3 -
220 400 108 16.7 9 4 1520 2360 950 1300 22244C/W33 22244CK/W33 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CA 22244CAK 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33X - 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CAF3 - 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33 22244CAK/W33 238 382 3 63.5
220 460 145 22.3 12 5 2350 3450 750 950 22344C/W33 222344CK/W33 242 438 4 120
220 460 145 22.3 12 5 2350 3450 750 950 22344CA/W33 22344CAK/W334 242 438 4 123
220 400 144 16.7 8 4 1720 3200 750 950 23244CA/W33 23244CAK/W33 238 382 3 77.3
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948C/W33 23948CK/W33 252 308 2 14
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CA/W33 23948CAK/W33 252 308 2 15
240 320 60 - - 2.1 564 1160 1300 1700 23948CAF3 - 252 308 2 15
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CAF3/W33 - 252 308 2 15
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048C/W33 23048CK/W33 254 346 2.5 33.5
240 360 92 - - 3 1130 2080 1000 1400 23048CA 23048CAK 254 346 2.5 34.2
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048CA/W33 23048CAK/W33 254 346 2.5 34.2
240 360 92 - - 3 1130 2080 1000 1400 23048CAQ1 - 254 346 2.5 34.2
240 360 118 11.1 6 3 1380 2700 800 1000 24048C/W33 24048CK/W33 254 346 2.5 42.5
240 360 118 - - 3 1380 2700 800 1000 24048CA 24048CAK30 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33X - 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33 24048CAK30/W33 254 346 2.5 46.5
240 400 128 16.7 9 4 1790 3200 850 1100 23148C/W33 23148CK/W33 258 382 3 65.5
240 400 128 - - 4 1790 3200 850 1100 23148CA - 258 382 3 68.2
240 400 128 16.7 9 4 1790 3200 850 1100 23148CA/W33 23148CAK/W33 258 382 3 68.2
240 400 160 11.1 6 4 2100 3900 480 600 24148C/W33 24148CK30/W33 258 382 3 80.5
240 400 160 11.1 6 4 2100 3900 480 600 24148CA 24148CAK30F3/W33 258 382 3 79
240 400 160 11.1 6 4 2100 3900 480 600 24148CA/W33 24148CAK30/W33 258 382 3 79
240 440 160 22.3 12 4 1910 3000 900 1200 22248C/W33 22248CK/W33 258 422 3 83
240 440 160 22.3 12 4 1910 3000 900 1200 22248CA/W33 22248CAK/W33 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/C9W33 - 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/W33 - 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248C/W33 23248CK/W33 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248CA/W33 23248CAK/W33 258 422 3 -
240 440 160 - - 4 2530 4300 670 850 23248CAF3 - 258 422 3 -
241 360 92 - - 3 985 2080 1000 1400 23048CAQ1/YA2 - 254 346 2.5 34
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952C/W33 23952CK/W33 272 348 2 24
260 360 75 - - 2.1 880 1800 1100 1500 23952CA - 272 348 2 21.6
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952CA/W33 23952CAK/W33 272 348 2 21.6
260 400 104 16.7 9 4 1400 2550 900 1200 23052C/W33 23052CK/W33 278 382 3 48.5
260 400 104 - - 4 1400 2550 900 1200 23052CA 23052CAK 278 382 3 49.8
260 400 104 16.7 9 4 1400 2550 900 1200 23052CA/W33 23052CAK/W33 278 382 3 49.8
260 400 104 - - 4 1400 2550 900 1200 23052CAF3 - 278 382 3 49.8
260 400 104 11.1 6 4 1760 3450 700 900 24052C/W33 24052CK/W33 278 382 3 64.5
260 400 104 11.1 6 4 1760 3450 700 900 24052CA/W33 24052CAK/W33 278 382 3 66.7
260 400 104 - - 4 1760 3450 700 900 24052CAF3 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 24052CAF3/W33 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 - 24052CAK30/W33 278 382 3 66.7
260 440 144 16.7 9 4 2220 3900 800 1000 23152C/W33 23152CK/W33 278 422 3 90.5
260 440 144 - - - 2220 3900 800 1000 23152CA 23152CAK 278 422 3 88.9
260 440 144 16.7 9 4 2222 3900 800 1000 23152CA/W33 23152CAK/W33 278 422 3 88.9
260 440 144 16.7 9 4 2220 3900 800 1000 - 24152CK30/W33 278 422 3 88.9
260 440 180 13.9 7.5 4 2620 4800 430 530 24152C/W33 - 278 422 3 110
260 440 180 - - 4 2620 4800 430 530 24152CA 22252CAK 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CA/W33 - 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CAF3/W33 23252CAK/W33 278 422 3 115
260 480 130 - - 5 2280 3600 850 1100 22252CA - 278 458 4 106
260 480 130 - - 5 2280 3600 850 1100 22252CA/W33 - 282 458 4 106
260 480 174 22.3 8 5 2800 4750 630 800 23252CA/W33 23252CAK/W33 282 458 4 145
260 480 174 22.3 8 5 2800 4750 630 800 23252CAF3/W33 23252CAKT7W33 282 458 4 145
260 540 165 22.3 8 6 3000 4700 630 800 22352CAF3/W33 22352CAKF3/W33 288 512 5 184
260 380 75 11.1 6 2.1 845 1760 1000 1400 23956C/W33 23956CK/W33 292 368 2 26
280 380 75 11.1 6 2.1 845 1760 1000 1400 23956CA/W33 23956CAK/W33 292 368 2 25.7
280 380 75 11.1 6 2.1 845 1760 100 1400 23956CAQ1/W33 - 292 368 2 25.7
280 420 106 16.7 9 4 1520 2850 850 1100 23056C/W33 23056CK/W33 298 402 3 52.5
280 420 106 - - 4 1520 2850 850 1100 23056CA 23056CAK 298 402 3 56.8
280 420 106 16.7 9 4 1520 2850 850 1100 23056CA/W33 23056CAK/W33 298 402 3 56.8
280 420 140 11.1 6 4 1870 3800 670 850 24056C/W33 24056CK30/W33 298 402 3 68.5
280 420 140 11.1 6 4 1870 3800 670 850 24056CA/W33 24056CAK30/W33 298 402 3 69.2
280 420 140 - - 4 1870 3800 670 850 24056CAF3 - 298 402 3 69.2
280 420 140 11.1 6 4 1870 3800 670 850 24056CAF3/W33 24056CAK30F3/W33 298 402 3 69.2
280 460 146 - - 5 1990 4150 750 950 23156CA 23156CAK 302 438 4 104
280 460 146 16.7 8 5 1990 4150 750 950 23156CA/W33 23156CAK/W33 302 438 4 101
280 460 146 - - 5 1990 4150 750 950 23156CAF3 23156CAKF3 302 438 4 103
280 460 146 - - 5 1990 4150 750 950 23156X2CA - 302 438 4 87
280 460 180 - - 5 2220 4750 400 500 24156CA - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/W33 - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/HCW33 - 302 438 4 119
280 500 130 22.3 8 5 1990 3600 800 1000 22256CA 22256CAK/W33 302 478 4 118
280 500 130 - - 5 1990 3600 800 1000 22256CAF3 - 302 478 4 118
280 500 176 - - 5 2580 5100 600 750 2325CA - 302 478 4 147
280 500 176 - - 5 2580 5100 600 750 23256CAF3 - 302 478 4 146
280 500 176 22.3 8 5 2580 5100 600 750 23256CAF3/W33 - 302 478 4 146
280 580 175 22.3 8 6 3200 5700 600 750 2235CA/W33 - 308 552 5 221
260 540 165 22.3 8 6 3000 4700 630 800 22352CAF3/W33 22352CAKF3/W33 288 512 5 184
260 380 75 11.1 6 2.1 845 1760 1000 1400 23956C/W33 23956CK/W33 292 368 2 26
280 380 75 11.1 6 2.1 845 1760 1000 1400 23956CA/W33 23956CAK/W33 292 368 2 25.7
280 380 75 11.1 6 2.1 845 1760 100 1400 23956CAQ1/W33 - 292 368 2 25.7
280 420 106 16.7 9 4 1520 2850 850 1100 23056C/W33 23056CK/W33 298 402 3 52.5
280 420 106 - - 4 1520 2850 850 1100 23056CA 23056CAK 298 402 3 56.8
280 420 106 16.7 9 4 1520 2850 850 1100 23056CA/W33 23056CAK/W33 298 402 3 56.8
280 420 140 11.1 6 4 1870 3800 670 850 24056C/W33 24056CK30/W33 298 402 3 68.5
280 420 140 11.1 6 4 1870 3800 670 850 24056CA/W33 24056CAK30/W33 298 402 3 69.2
280 420 140 - - 4 1870 3800 670 850 24056CAF3 - 298 402 3 69.2
280 420 140 11.1 6 4 1870 3800 670 850 24056CAF3/W33 24056CAK30F3/W33 298 402 3 69.2
280 460 146 - - 5 1990 4150 750 950 23156CA 23156CAK 302 438 4 104
280 460 146 16.7 8 5 1990 4150 750 950 23156CA/W33 23156CAK/W33 302 438 4 101
280 460 146 - - 5 1990 4150 750 950 23156CAF3 23156CAKF3 302 438 4 103
280 460 146 - - 5 1990 4150 750 950 23156X2CA - 302 438 4 87
280 460 180 - - 5 2220 4750 400 500 24156CA - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/W33 - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/HCW33 - 302 438 4 119
280 500 130 22.3 8 5 1990 3600 800 1000 22256CA 22256CAK/W33 302 478 4 118
280 500 130 - - 5 1990 3600 800 1000 22256CAF3 - 302 478 4 118
280 500 176 - - 5 2580 5100 600 750 2325CA - 302 478 4 147
280 500 176 - - 5 2580 5100 600 750 23256CAF3 - 302 478 4 146
280 500 176 22.3 8 5 2580 5100 600 750 23256CAF3/W33 - 302 478 4 146
280 580 175 22.3 8 6 3200 5700 600 750 2235CA/W33 - 308 552 5 221
300 420 90 11.1 6 3 1200 2500 950 1300 23960C/W33 23960CK/W33 314 406 2.5 40.5
300 420 90 11.1 7 3 1200 2500 950 1300 23960CA/W33 23960CAK/W33 314 406 2.5 40.1
300 460 118 16.7 7 4 1610 3450 800 1000 23060CAF3/W33 - 318 442 3 74.9
300 460 118 - - 4 1610 3450 800 1000 - 23060CAK 318 442 3 73.6
300 460 118 16.7 7 4 1610 3450 800 1000 - 23060CAK/W33 318 442 3 73.6
300 460 160 - - 4 2020 2700 600 750 24060CA - 318 442 3 99
300 460 160 13.9 7 4 2020 2700 600 750 24060CA/W33 - 318 442 3 99
300 500 160 - - 5 2310 4750 670 850 23160CA - 322 478 4 126
300 500 160 - - 5 2310 4750 670 850 23160CAF3 23160CAKF3 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23160CAF3/C9W33 - 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23060CA/W33 23160CAK/W33 322 478 4 125
300 540 140 - - 5 2310 4300 750 950 22260CA - 322 518 4 138
300 540 140 - - 5 2310 4300 750 950 22260CAF3 22260CAKF3 322 518 4 138
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CK/30W33 212 298 2 30.5
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CAK30/W33 212 298 2 31.3
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CDK/W33 214 326 2.5 42.5
200 340 112 - - 3 1380 2360 950 1300 23140CA 23140CAK 214 326 2.5 43.8
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CAK/W33 214 326 2.5 43.8
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CK30/W33 214 326 2.5 52
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CAK30/W33 214 326 2.5 52.1
200 360 98 - - 4 1270 1930 1100 1500 22240 - 218 342 3 43.5
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CK/W33 218 342 3 43.5
200 360 98 - - 4 1270 1930 1100 1500 22240CA 22240CAK 218 342 3 44.7
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CAK/W33 218 342 3 44.7
200 360 98 - - 4 1270 1930 1100 1500 22240CAF3 22240CAKF3 218 342 3 44.7
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 23240CK/W33 218 342 3 57
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 22340CAK/W33 218 342 3 53.4
200 360 128 - - 4 1610 2700 850 1100 - 23240CAK 218 342 3 53.4
200 420 138 22.3 12 5 2020 2900 850 1100 22340C/W33 22340CK/W33 222 398 4 92.5
200 420 138 - - 5 2020 2900 850 1100 22340CA 22340CAK 222 398 4 97
200 420 138 22.3 12 5 2020 2900 850 1100 22340CA/W33 22340CAK/W33 222 398 4 97
200 420 138 - - 5 2020 2900 850 1100 22340CAF3 - 222 398 4 97
200 420 165 - - 5 2020 3500 750 950 23340CAF3 - 222 398 4 97
219.5 340 90 - - 3 935 1900 1100 1500 23044CA/YA2 - 234 326 2.5 31.5
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23044C/W33 23944CK/W33 232 288 2 13
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23944C/W33 23944CAK/W33 232 288 2 13
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044C/W33 23044CDK/W33 234 326 2.5 30.5
220 340 90 - - 3 1050 1860 1100 1500 23044CA 23044CAK 234 326 2.5 31.6
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044CA/W33 23044CAK/W33 234 326 2.5 31.6
220 340 90 - - 3 1050 1860 1100 1500 - 23044CAKF3 234 326 2.5 31.6
220 340 118 11.1 6 3 1360 2600 850 1100 24044C/W33 24044CK30/W33 234 326 2.5 39.5
220 340 118 11.1 6 3 1360 2600 850 1100 24044CA/W33 24044CAK30/W33 234 326 2.5 39.1
220 340 118 - - 3 1360 2600 850 1100 24044CAF3 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33X - 234 326 2.5 39.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144C/W33 23144CK/W33 238 352 3 53
220 370 120 - - - 1580 2750 900 1200 23144CA 23144CAK 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/W33 23144CAK/W33 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/HG3W33 23144CAKF3/W33 238 352 3 54.6
220 370 150 11.1 6 4 1840 3350 500 630 24144C/W33 24144CK/W33 238 352 3 65
220 370 150 11.1 6 4 1840 3350 500 630 24144CA/W33 24144CAK/W33 238 352 3 -
220 400 108 16.7 9 4 1520 2360 950 1300 22244C/W33 22244CK/W33 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CA 22244CAK 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33X - 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CAF3 - 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33 22244CAK/W33 238 382 3 63.5
220 460 145 22.3 12 5 2350 3450 750 950 22344C/W33 222344CK/W33 242 438 4 120
220 460 145 22.3 12 5 2350 3450 750 950 22344CA/W33 22344CAK/W334 242 438 4 123
220 400 144 16.7 8 4 1720 3200 750 950 23244CA/W33 23244CAK/W33 238 382 3 77.3
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948C/W33 23948CK/W33 252 308 2 14
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CA/W33 23948CAK/W33 252 308 2 15
240 320 60 - - 2.1 564 1160 1300 1700 23948CAF3 - 252 308 2 15
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CAF3/W33 - 252 308 2 15
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048C/W33 23048CK/W33 254 346 2.5 33.5
240 360 92 - - 3 1130 2080 1000 1400 23048CA 23048CAK 254 346 2.5 34.2
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048CA/W33 23048CAK/W33 254 346 2.5 34.2
240 360 92 - - 3 1130 2080 1000 1400 23048CAQ1 - 254 346 2.5 34.2
240 360 118 11.1 6 3 1380 2700 800 1000 24048C/W33 24048CK/W33 254 346 2.5 42.5
240 360 118 - - 3 1380 2700 800 1000 24048CA 24048CAK30 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33X - 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33 24048CAK30/W33 254 346 2.5 46.5
240 400 128 16.7 9 4 1790 3200 850 1100 23148C/W33 23148CK/W33 258 382 3 65.5
240 400 128 - - 4 1790 3200 850 1100 23148CA - 258 382 3 68.2
240 400 128 16.7 9 4 1790 3200 850 1100 23148CA/W33 23148CAK/W33 258 382 3 68.2
240 400 160 11.1 6 4 2100 3900 480 600 24148C/W33 24148CK30/W33 258 382 3 80.5
240 400 160 11.1 6 4 2100 3900 480 600 24148CA 24148CAK30F3/W33 258 382 3 79
240 400 160 11.1 6 4 2100 3900 480 600 24148CA/W33 24148CAK30/W33 258 382 3 79
240 440 160 22.3 12 4 1910 3000 900 1200 22248C/W33 22248CK/W33 258 422 3 83
240 440 160 22.3 12 4 1910 3000 900 1200 22248CA/W33 22248CAK/W33 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/C9W33 - 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/W33 - 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248C/W33 23248CK/W33 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248CA/W33 23248CAK/W33 258 422 3 -
240 440 160 - - 4 2530 4300 670 850 23248CAF3 - 258 422 3 -
241 360 92 - - 3 985 2080 1000 1400 23048CAQ1/YA2 - 254 346 2.5 34
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952C/W33 23952CK/W33 272 348 2 24
260 360 75 - - 2.1 880 1800 1100 1500 23952CA - 272 348 2 21.6
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952CA/W33 23952CAK/W33 272 348 2 21.6
260 400 104 16.7 9 4 1400 2550 900 1200 23052C/W33 23052CK/W33 278 382 3 48.5
260 400 104 - - 4 1400 2550 900 1200 23052CA 23052CAK 278 382 3 49.8
260 400 104 16.7 9 4 1400 2550 900 1200 23052CA/W33 23052CAK/W33 278 382 3 49.8
260 400 104 - - 4 1400 2550 900 1200 23052CAF3 - 278 382 3 49.8
260 400 104 11.1 6 4 1760 3450 700 900 24052C/W33 24052CK/W33 278 382 3 64.5
260 400 104 11.1 6 4 1760 3450 700 900 24052CA/W33 24052CAK/W33 278 382 3 66.7
260 400 104 - - 4 1760 3450 700 900 24052CAF3 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 24052CAF3/W33 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 - 24052CAK30/W33 278 382 3 66.7
260 440 144 16.7 9 4 2220 3900 800 1000 23152C/W33 23152CK/W33 278 422 3 90.5
260 440 144 - - - 2220 3900 800 1000 23152CA 23152CAK 278 422 3 88.9
260 440 144 16.7 9 4 2222 3900 800 1000 23152CA/W33 23152CAK/W33 278 422 3 88.9
260 440 144 16.7 9 4 2220 3900 800 1000 - 24152CK30/W33 278 422 3 88.9
260 440 180 13.9 7.5 4 2620 4800 430 530 24152C/W33 - 278 422 3 110
260 440 180 - - 4 2620 4800 430 530 24152CA 22252CAK 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CA/W33 - 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CAF3/W33 23252CAK/W33 278 422 3 115
260 480 130 - - 5 2280 3600 850 1100 22252CA - 278 458 4 106
260 480 130 - - 5 2280 3600 850 1100 22252CA/W33 - 282 458 4 106
260 480 174 22.3 8 5 2800 4750 630 800 23252CA/W33 23252CAK/W33 282 458 4 145
260 480 174 22.3 8 5 2800 4750 630 800 23252CAF3/W33 23252CAKT7W33 282 458 4 145
260 540 165 22.3 8 6 3000 4700 630 800 22352CAF3/W33 22352CAKF3/W33 288 512 5 184
260 380 75 11.1 6 2.1 845 1760 1000 1400 23956C/W33 23956CK/W33 292 368 2 26
280 380 75 11.1 6 2.1 845 1760 1000 1400 23956CA/W33 23956CAK/W33 292 368 2 25.7
280 380 75 11.1 6 2.1 845 1760 100 1400 23956CAQ1/W33 - 292 368 2 25.7
280 420 106 16.7 9 4 1520 2850 850 1100 23056C/W33 23056CK/W33 298 402 3 52.5
280 420 106 - - 4 1520 2850 850 1100 23056CA 23056CAK 298 402 3 56.8
280 420 106 16.7 9 4 1520 2850 850 1100 23056CA/W33 23056CAK/W33 298 402 3 56.8
280 420 140 11.1 6 4 1870 3800 670 850 24056C/W33 24056CK30/W33 298 402 3 68.5
280 420 140 11.1 6 4 1870 3800 670 850 24056CA/W33 24056CAK30/W33 298 402 3 69.2
280 420 140 - - 4 1870 3800 670 850 24056CAF3 - 298 402 3 69.2
280 420 140 11.1 6 4 1870 3800 670 850 24056CAF3/W33 24056CAK30F3/W33 298 402 3 69.2
280 460 146 - - 5 1990 4150 750 950 23156CA 23156CAK 302 438 4 104
280 460 146 16.7 8 5 1990 4150 750 950 23156CA/W33 23156CAK/W33 302 438 4 101
280 460 146 - - 5 1990 4150 750 950 23156CAF3 23156CAKF3 302 438 4 103
280 460 146 - - 5 1990 4150 750 950 23156X2CA - 302 438 4 87
280 460 180 - - 5 2220 4750 400 500 24156CA - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/W33 - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/HCW33 - 302 438 4 119
280 500 130 22.3 8 5 1990 3600 800 1000 22256CA 22256CAK/W33 302 478 4 118
280 500 130 - - 5 1990 3600 800 1000 22256CAF3 - 302 478 4 118
280 500 176 - - 5 2580 5100 600 750 2325CA - 302 478 4 147
280 500 176 - - 5 2580 5100 600 750 23256CAF3 - 302 478 4 146
280 500 176 22.3 8 5 2580 5100 600 750 23256CAF3/W33 - 302 478 4 146
280 580 175 22.3 8 6 3200 5700 600 750 2235CA/W33 - 308 552 5 221
300 420 90 11.1 6 3 1200 2500 950 1300 23960C/W33 23960CK/W33 314 406 2.5 40.5
300 420 90 11.1 7 3 1200 2500 950 1300 23960CA/W33 23960CAK/W33 314 406 2.5 40.1
300 460 118 16.7 7 4 1610 3450 800 1000 23060CAF3/W33 - 318 442 3 74.9
300 460 118 - - 4 1610 3450 800 1000 - 23060CAK 318 442 3 73.6
300 460 118 16.7 7 4 1610 3450 800 1000 - 23060CAK/W33 318 442 3 73.6
300 460 160 - - 4 2020 2700 600 750 24060CA - 318 442 3 99
300 460 160 13.9 7 4 2020 2700 600 750 24060CA/W33 - 318 442 3 99
300 500 160 - - 5 2310 4750 670 850 23160CA - 322 478 4 126
300 500 160 - - 5 2310 4750 670 850 23160CAF3 23160CAKF3 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23160CAF3/C9W33 - 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23060CA/W33 23160CAK/W33 322 478 4 125
300 540 140 - - 5 2310 4300 750 950 22260CA - 322 518 4 138
300 540 140 - - 5 2310 4300 750 950 22260CAF3 22260CAKF3 322 518 4 138
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CK/30W33 212 298 2 30.5
200 310 109 11.1 6 2.1 1130 2120 900 1200 24040C/W33 24040CAK30/W33 212 298 2 31.3
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CDK/W33 214 326 2.5 42.5
200 340 112 - - 3 1380 2360 950 1300 23140CA 23140CAK 214 326 2.5 43.8
200 340 112 16.7 9 3 1380 2360 950 1300 23140C/W33 23140CAK/W33 214 326 2.5 43.8
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CK30/W33 214 326 2.5 52
200 340 140 11.1 6 3 1580 2600 560 700 24140C/W33 24140CAK30/W33 214 326 2.5 52.1
200 360 98 - - 4 1270 1930 1100 1500 22240 - 218 342 3 43.5
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CK/W33 218 342 3 43.5
200 360 98 - - 4 1270 1930 1100 1500 22240CA 22240CAK 218 342 3 44.7
200 360 98 16.7 9 4 1270 1930 1100 1500 22240C/W33 22240CAK/W33 218 342 3 44.7
200 360 98 - - 4 1270 1930 1100 1500 22240CAF3 22240CAKF3 218 342 3 44.7
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 23240CK/W33 218 342 3 57
200 360 128 16.7 9 4 1610 2700 850 1100 23240C/W33 22340CAK/W33 218 342 3 53.4
200 360 128 - - 4 1610 2700 850 1100 - 23240CAK 218 342 3 53.4
200 420 138 22.3 12 5 2020 2900 850 1100 22340C/W33 22340CK/W33 222 398 4 92.5
200 420 138 - - 5 2020 2900 850 1100 22340CA 22340CAK 222 398 4 97
200 420 138 22.3 12 5 2020 2900 850 1100 22340CA/W33 22340CAK/W33 222 398 4 97
200 420 138 - - 5 2020 2900 850 1100 22340CAF3 - 222 398 4 97
200 420 165 - - 5 2020 3500 750 950 23340CAF3 - 222 398 4 97
219.5 340 90 - - 3 935 1900 1100 1500 23044CA/YA2 - 234 326 2.5 31.5
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23044C/W33 23944CK/W33 232 288 2 13
220 300 60 8.3 4.5 2.1 546 1080 1500 1900 23944C/W33 23944CAK/W33 232 288 2 13
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044C/W33 23044CDK/W33 234 326 2.5 30.5
220 340 90 - - 3 1050 1860 1100 1500 23044CA 23044CAK 234 326 2.5 31.6
220 340 90 13.9 7.5 3 1050 1860 1100 1500 23044CA/W33 23044CAK/W33 234 326 2.5 31.6
220 340 90 - - 3 1050 1860 1100 1500 - 23044CAKF3 234 326 2.5 31.6
220 340 118 11.1 6 3 1360 2600 850 1100 24044C/W33 24044CK30/W33 234 326 2.5 39.5
220 340 118 11.1 6 3 1360 2600 850 1100 24044CA/W33 24044CAK30/W33 234 326 2.5 39.1
220 340 118 - - 3 1360 2600 850 1100 24044CAF3 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33 - 234 326 2.5 39.1
220 340 118 11.1 6 3 1360 2600 850 1100 24044CAF3/W33X - 234 326 2.5 39.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144C/W33 23144CK/W33 238 352 3 53
220 370 120 - - - 1580 2750 900 1200 23144CA 23144CAK 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/W33 23144CAK/W33 238 352 3 53.1
220 370 120 16.7 9 4 1580 2750 900 1200 23144CA/HG3W33 23144CAKF3/W33 238 352 3 54.6
220 370 150 11.1 6 4 1840 3350 500 630 24144C/W33 24144CK/W33 238 352 3 65
220 370 150 11.1 6 4 1840 3350 500 630 24144CA/W33 24144CAK/W33 238 352 3 -
220 400 108 16.7 9 4 1520 2360 950 1300 22244C/W33 22244CK/W33 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CA 22244CAK 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33X - 238 382 3 60.5
220 400 108 - - 4 1520 2360 950 1300 22244CAF3 - 238 382 3 60.5
220 400 108 16.7 9 4 1520 2360 950 1300 22244CA/W33 22244CAK/W33 238 382 3 63.5
220 460 145 22.3 12 5 2350 3450 750 950 22344C/W33 222344CK/W33 242 438 4 120
220 460 145 22.3 12 5 2350 3450 750 950 22344CA/W33 22344CAK/W334 242 438 4 123
220 400 144 16.7 8 4 1720 3200 750 950 23244CA/W33 23244CAK/W33 238 382 3 77.3
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948C/W33 23948CK/W33 252 308 2 14
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CA/W33 23948CAK/W33 252 308 2 15
240 320 60 - - 2.1 564 1160 1300 1700 23948CAF3 - 252 308 2 15
240 320 60 8.3 4.5 2.1 564 1160 1300 1700 23948CAF3/W33 - 252 308 2 15
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048C/W33 23048CK/W33 254 346 2.5 33.5
240 360 92 - - 3 1130 2080 1000 1400 23048CA 23048CAK 254 346 2.5 34.2
240 360 92 13.9 7.5 3 1130 2080 1000 1400 23048CA/W33 23048CAK/W33 254 346 2.5 34.2
240 360 92 - - 3 1130 2080 1000 1400 23048CAQ1 - 254 346 2.5 34.2
240 360 118 11.1 6 3 1380 2700 800 1000 24048C/W33 24048CK/W33 254 346 2.5 42.5
240 360 118 - - 3 1380 2700 800 1000 24048CA 24048CAK30 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33X - 254 346 2.5 46.5
240 360 118 11.1 6 3 1380 2700 800 1000 24048CA/W33 24048CAK30/W33 254 346 2.5 46.5
240 400 128 16.7 9 4 1790 3200 850 1100 23148C/W33 23148CK/W33 258 382 3 65.5
240 400 128 - - 4 1790 3200 850 1100 23148CA - 258 382 3 68.2
240 400 128 16.7 9 4 1790 3200 850 1100 23148CA/W33 23148CAK/W33 258 382 3 68.2
240 400 160 11.1 6 4 2100 3900 480 600 24148C/W33 24148CK30/W33 258 382 3 80.5
240 400 160 11.1 6 4 2100 3900 480 600 24148CA 24148CAK30F3/W33 258 382 3 79
240 400 160 11.1 6 4 2100 3900 480 600 24148CA/W33 24148CAK30/W33 258 382 3 79
240 440 160 22.3 12 4 1910 3000 900 1200 22248C/W33 22248CK/W33 258 422 3 83
240 440 160 22.3 12 4 1910 3000 900 1200 22248CA/W33 22248CAK/W33 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/C9W33 - 258 422 3 -
240 440 160 22.3 12 4 1910 3000 900 1200 22248CAF3/W33 - 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248C/W33 23248CK/W33 258 422 3 -
240 440 160 22.3 12 4 2530 4300 670 850 23248CA/W33 23248CAK/W33 258 422 3 -
240 440 160 - - 4 2530 4300 670 850 23248CAF3 - 258 422 3 -
241 360 92 - - 3 985 2080 1000 1400 23048CAQ1/YA2 - 254 346 2.5 34
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952C/W33 23952CK/W33 272 348 2 24
260 360 75 - - 2.1 880 1800 1100 1500 23952CA - 272 348 2 21.6
260 360 75 8.3 4.5 2.1 880 1800 1100 1500 23952CA/W33 23952CAK/W33 272 348 2 21.6
260 400 104 16.7 9 4 1400 2550 900 1200 23052C/W33 23052CK/W33 278 382 3 48.5
260 400 104 - - 4 1400 2550 900 1200 23052CA 23052CAK 278 382 3 49.8
260 400 104 16.7 9 4 1400 2550 900 1200 23052CA/W33 23052CAK/W33 278 382 3 49.8
260 400 104 - - 4 1400 2550 900 1200 23052CAF3 - 278 382 3 49.8
260 400 104 11.1 6 4 1760 3450 700 900 24052C/W33 24052CK/W33 278 382 3 64.5
260 400 104 11.1 6 4 1760 3450 700 900 24052CA/W33 24052CAK/W33 278 382 3 66.7
260 400 104 - - 4 1760 3450 700 900 24052CAF3 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 24052CAF3/W33 - 278 382 3 66.7
260 400 104 11.1 6 4 1760 3450 700 900 - 24052CAK30/W33 278 382 3 66.7
260 440 144 16.7 9 4 2220 3900 800 1000 23152C/W33 23152CK/W33 278 422 3 90.5
260 440 144 - - - 2220 3900 800 1000 23152CA 23152CAK 278 422 3 88.9
260 440 144 16.7 9 4 2222 3900 800 1000 23152CA/W33 23152CAK/W33 278 422 3 88.9
260 440 144 16.7 9 4 2220 3900 800 1000 - 24152CK30/W33 278 422 3 88.9
260 440 180 13.9 7.5 4 2620 4800 430 530 24152C/W33 - 278 422 3 110
260 440 180 - - 4 2620 4800 430 530 24152CA 22252CAK 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CA/W33 - 278 422 3 115
260 440 180 13.9 7.5 4 2620 4800 430 530 24152CAF3/W33 23252CAK/W33 278 422 3 115
260 480 130 - - 5 2280 3600 850 1100 22252CA - 278 458 4 106
260 480 130 - - 5 2280 3600 850 1100 22252CA/W33 - 282 458 4 106
260 480 174 22.3 8 5 2800 4750 630 800 23252CA/W33 23252CAK/W33 282 458 4 145
260 480 174 22.3 8 5 2800 4750 630 800 23252CAF3/W33 23252CAKT7W33 282 458 4 145
260 540 165 22.3 8 6 3000 4700 630 800 22352CAF3/W33 22352CAKF3/W33 288 512 5 184
260 380 75 11.1 6 2.1 845 1760 1000 1400 23956C/W33 23956CK/W33 292 368 2 26
280 380 75 11.1 6 2.1 845 1760 1000 1400 23956CA/W33 23956CAK/W33 292 368 2 25.7
280 380 75 11.1 6 2.1 845 1760 100 1400 23956CAQ1/W33 - 292 368 2 25.7
280 420 106 16.7 9 4 1520 2850 850 1100 23056C/W33 23056CK/W33 298 402 3 52.5
280 420 106 - - 4 1520 2850 850 1100 23056CA 23056CAK 298 402 3 56.8
280 420 106 16.7 9 4 1520 2850 850 1100 23056CA/W33 23056CAK/W33 298 402 3 56.8
280 420 140 11.1 6 4 1870 3800 670 850 24056C/W33 24056CK30/W33 298 402 3 68.5
280 420 140 11.1 6 4 1870 3800 670 850 24056CA/W33 24056CAK30/W33 298 402 3 69.2
280 420 140 - - 4 1870 3800 670 850 24056CAF3 - 298 402 3 69.2
280 420 140 11.1 6 4 1870 3800 670 850 24056CAF3/W33 24056CAK30F3/W33 298 402 3 69.2
280 460 146 - - 5 1990 4150 750 950 23156CA 23156CAK 302 438 4 104
280 460 146 16.7 8 5 1990 4150 750 950 23156CA/W33 23156CAK/W33 302 438 4 101
280 460 146 - - 5 1990 4150 750 950 23156CAF3 23156CAKF3 302 438 4 103
280 460 146 - - 5 1990 4150 750 950 23156X2CA - 302 438 4 87
280 460 180 - - 5 2220 4750 400 500 24156CA - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/W33 - 302 438 4 119
280 460 180 13.9 8 5 2220 4750 400 500 24156CA/HCW33 - 302 438 4 119
280 500 130 22.3 8 5 1990 3600 800 1000 22256CA 22256CAK/W33 302 478 4 118
280 500 130 - - 5 1990 3600 800 1000 22256CAF3 - 302 478 4 118
280 500 176 - - 5 2580 5100 600 750 2325CA - 302 478 4 147
280 500 176 - - 5 2580 5100 600 750 23256CAF3 - 302 478 4 146
280 500 176 22.3 8 5 2580 5100 600 750 23256CAF3/W33 - 302 478 4 146
280 580 175 22.3 8 6 3200 5700 600 750 2235CA/W33 - 308 552 5 221
300 420 90 11.1 6 3 1200 2500 950 1300 23960C/W33 23960CK/W33 314 406 2.5 40.5
300 420 90 11.1 7 3 1200 2500 950 1300 23960CA/W33 23960CAK/W33 314 406 2.5 40.1
300 460 118 16.7 7 4 1610 3450 800 1000 23060CAF3/W33 - 318 442 3 74.9
300 460 118 - - 4 1610 3450 800 1000 - 23060CAK 318 442 3 73.6
300 460 118 16.7 7 4 1610 3450 800 1000 - 23060CAK/W33 318 442 3 73.6
300 460 160 - - 4 2020 2700 600 750 24060CA - 318 442 3 99
300 460 160 13.9 7 4 2020 2700 600 750 24060CA/W33 - 318 442 3 99
300 500 160 - - 5 2310 4750 670 850 23160CA - 322 478 4 126
300 500 160 - - 5 2310 4750 670 850 23160CAF3 23160CAKF3 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23160CAF3/C9W33 - 322 478 4 125
300 500 160 16.7 9 5 2310 4750 670 850 23060CA/W33 23160CAK/W33 322 478 4 125
300 540 140 - - 5 2310 4300 750 950 22260CA - 322 518 4 138
300 540 140 - - 5 2310 4300 750 950 22260CAF3 22260CAKF3 322 518 4 138

Boundary dimensions
mm		 Load rating
kN		 Limiting speed
r/min		 Bearing numbers Mounting dimensions
mm		 Weight
(reference)
(Tapered bore)
kg
d D B b k r1,2 Cr Cor Grease Oil Cylindrical bore Tapered bore da
max		 Da
max		 ra
max
300 540 192 22.0 10 5.0 3300 5600 530 670 23260CAF1 23260CAKF1/W33 322 518 4.0 192.0
320 480 121 16.7 8 4.0 1930 2200 800 1000 23064CAF3/W33 23064CAK/W33 338 462 3.0 84.7
320 480 160 - - 4.0 2480 5100 560 700 24064CAF3 - 338 462 3.0 106
320 480 160 22.0 8 4.0 2480 5100 560 700 24064CAF3/W33 - 338 462 3.0 106
320 540 176 - - 5.0 3150 3200 630 800 23164CA - 342 518 4.0 200
320 540 176 22.3 8 5.0 3150 3200 630 800 23164CA/W33 - 342 518 4.0 -
320 540 176 - - 5.0 3150 3200 630 800 - 23164CAK 342 518 4.0 195
320 540 176 22.3 8 5.0 3150 3200 630 800 - 23164CAK/W33 342 518 4.0 195
320 580 150 - - 5.0 2490 4550 670 850 22264CA 22264CAK 342 558 4.0 175
320 580 208 24 10 5.0 3900 6800 500 630 22264CA/W33 - 342 558 4.0 253
320 580 208 24 10 5.0 3900 6800 500 630 23264CAF3/W33 - 342 558 4.0 253
320 580 208 24 10 5.0 3900 6800 500 630 23264CAF3 23264CAKF3/W33 342 558 4.0 252
340 460 90 15 6 3.0 1200 2700 900 1200 23968CAF3/W33 - 354 446 2.5 45.6
340 520 133 - - 5.0 1980 4400 700 900 23068CA - 362 498 4.0 115
340 520 133 22.3 8 5.0 1980 4400 700 900 23068CA/W33 - 362 498 4.0 115
340 520 133 - - 5.0 1980 4400 700 900 23068CAF3 - 362 498 4.0 114
340 520 133 22.3 8 5.0 1980 4400 700 900 23068CAF3/W33 - 362 498 4.0 114
340 520 133 - - 5.0 1980 4400 700 900 - 23068CAKF3 362 498 4.0 111
340 520 133 22.3 8 5.0 1980 4400 700 900 - 23068CAFKF/W33 362 498 4.0 111
340 520 180 16.7 8 5.0 2460 5700 530 670 24068CA/W33 - 362 498 4.0 137
340 520 180 16.7 8 5.0 24760 5700 530 670 24068CAF1/W33 - 362 498 4.0 137
340 520 180 - - 5.0 2460 5700 530 670 - 24068CAK30F1 362 498 4.0 134
340 580 190 22.3 8 5.0 3050 6300 600 750 23168CA/W33 - 362 558 4.0 211
340 580 190 22.3 8 5.0 3050 6300 600 750 23168CAF3/W33 23168CAKF3/W33 362 558 4.0 211
340 580 234 22.3 10 5.0 3700 7950 320 400 - 24168CAK30/W33 362 558 4.0 256
360 480 90 - - 3.0 1290 2820 850 1100 23972CA - 374 466 2.5 46.6
360 540 134 - - 5.0 2280 4800 670 850 23072CA - 382 518 4.0 126
360 540 134 22.3 8 5.0 2280 4800 670 850 23072CA/W33 - 382 518 4.0 126
360 540 134 - - 5.0 2280 4800 670 850 23072CAF3 - 382 518 4.0 126
360 540 134 22.3 8 5.0 2280 4800 670 850 23072CAF3/W33 23072CAKF3/W33 382 518 4.0 126
360 600 192 - - 5.0 3250 6850 560 700 23172CA - 382 578 4.0 255
360 600 243 - - 5.0 5600 8400 300 380 24172CA - 382 578 4.0 270
360 600 243 20.0 12 5.0 5600 8400 300 380 24172CA/W33 - 382 578 4.0 270
360 600 243 - - 5.0 5600 8400 300 380 24172CAF1 - 382 578 4.0 269
360 600 243 20.0 12 5.0 5600 8400 300 380 24172CAF1/W33 - 382 578 4.0 269
360 600 243 20.0 12 5.0 5600 8400 300 380 - 24172CAK30/W33 382 578 4.0 270
360 600 243 20.0 12 5.0 5600 8400 30 380 - 24172CAK30F1/W33 382 578 4.0 270
360 650 232 22.3 10 6.0 4650 8300 400 500 - 23272CAKF3/W33 388 622 5.0 330
360 750 224 - - 7.5 4900 8600 400 .500 22372CAF3 22372CAKF3 392 720 6.0 466
360 750 224 - - 7.5 4900 8600 400 500 - 22372CAK 392 720 6.0 460
380 520 106 15 10 4.0 1730 380 800 1000 23976CAKF1/W33 - 398 502 3.0 69.5
380 560 135 - - 5.0 2480 5000 630 800 23076CA 23076CAKF3 402 538 4.0 130
380 560 180 22 10 5.0 3150 6900 480 600 - 24076CAK30F3/W33 402 538 4.0 153
380 620 194 - - 5.0 3400 7350 400 500 - 23176CAK 402 598 4.0 244
380 620 194 22 8 5.0 3400 7350 400 500 23176CAF3/W33 23176CAKF3/W33 402 598 4.0 244
380 620 194 22 8 5.0 3400 7350 400 500 23176CAF3/HAW33 - 402 598 4.0 244
400 540 106 15 10 4.0 2540 3900 750 950 23980CAF1/W33 - 418 522 3.0 72.4
400 600 148 - - 5.0 2540 5900 600 750 23080CA - 422 578 4.0 161
400 600 148 - - 5.0 1730 5900 600 750 23080CAF3 23080CAKF3 422 578 4.0 161
400 600 148 22 12 5.0 1730 5900 600 750 23080CAF3/W33 - 422 578 4.0 161
400 600 200 - - 5.0 3600 7800 450 560 24080CAF3 - 422 578 4.0 202
400 600 200 22 12 5.0 3600 7800 450 560 24080CAF3/W33 - 422 578 4.0 202
400 650 200 - - 6.0 4100 7650 380 480 23180CA - 428 622 5.0 275
400 650 200 22.3 8 6.0 4100 7650 380 480 23180CA/W33 - 428 622 5.0 275
400 650 200 - - 6.0 4100 7650 380 480 23080CAF3 - 428 622 5.0 273
400 650 200 22.3 8 6.0 4100 7650 380 480 23180CAF3/W33 23180CAKF3/W33 428 622 5.0 264
400 670 216 22.3 8 6.0 4000 8550 380 480 23180X3CA/W33 - 428 622 5.0 293
400 720 256 22.0 10 6.0 6150 11300 340 430 23280CA/W33 - 428 692 5.0 353
400 720 256 22.0 10 6.0 6150 11300 340 430 23280CAF3/W33 - 428 692 5.0 353
420 620 150 - - 5.0 2700 6400 450 560 23084CA - 442 598 4.0 149
420 620 150 - - 5.0 2700 6400 450 560 23048CAF3 23048CAKF3 442 598 4.0 149
420 620 150 22 8 5.0 2700 6400 450 560 23048CAF3/W33 - 442 598 4.0 149
420 620 200 22.3 12 5.0 3350 8450 380 480 24084CA/W33 - 422 598 4.0 202
420 620 200 22.3 12 5.0 3350 8450 380 480 24084CAF3AV33 - 422 598 4.0 202
420 620 200 22.3 12 5.0 3350 8450 380 480 - 24084CAK30F3/W33X 442 598 4.0 197
420 700 224 - - 6.0 4250 9200 360 450 23184CAF3 2318CAK 448 672 5.0 353
420 760 272 22 12 7.5 5610 11900 320 400 23284CA/W33 23284CAK/W33 456 724 6.0 550
420 760 272 22 12 7.5 5610 11900 320 400 23284CAF3/C9W33 - 456 724 6.0 549
440 650 157 - - 6.0 2780 6500 430 530 23088CAF3 23088CAKF3 468 622 5.0 185
440 650 157 22.3 8 6.0 2780 6500 430 530 23088CAF3/W33 - 468 622 5.0 179
440 720 226 - - 6.0 4500 10000 340 430 23188CA - 468 692 5.0 378
460 680 163 23.5 12 6.0 3450 6950 400 500 23092CAF3/W33 23092CAKF3 488 652 5.0 226
460 680 218 24 12 6.0 4200 9100 340 430 24092CAF3/W33 - 488 652 5.0 304
460 760 240 22 8 7.5 5500 10000 320 400 23192CAF3 23192CAKF3/W33 496 724 6.0 457
460 760 300 22.3 8 7.5 6100 14400 160 200 24192CA/W33 - 496 724 6.0 459
460 830 296 22.3 10 7.5 7350 13500 300 380 - 23292CAKF3/W33 496 794 6.0 698
480 600 90 - - 3.0 1290 4000 450 600 23896CA - 500 580 3.0 60.4
480 650 128 16.7 10 5.0 2150 5750 400 500 23996CAF1/W33 - 502 628 4.0 125
480 790 248 22 12 7.5 6100 12000 300 380 23196CAF1/W33 23196CAKF1/W33X 516 754 6.0 516
480 870 310 - - 7.5 6750 15200 260 340 - 2396CAKF3 516 834 6.0 853
500 670 128 - - 5.0 2530 6000 400 500 239/500CAF1 - 522 648 4.0 120
500 720 167 22.3 8 6.0 3150 7650 380 480 230/500CAF3/HAW33X - 528 692 5.0 228
500 920 336 22.3 12 7.5 8600 18600 280 360 232/500CAF3/W33 - 536 884 6.0 985
530 780 185 - - 6.0 3900 9650 340 430 230/530CA - 558 752 5.0 339
530 780 185 24 12 6.0 3900 9650 340 430 230/530CA/W33X - 558 752 5.0 339
530 780 185 - - 6.0 3900 9650 340 430 230/530CAF3 - 558 752 5.0 335
530 780 185 24 12 6.0 3900 9650 340 430 230/530CAF3/W33 - 558 752 5.0 335
560 750 140 - - 5.0 3050 7200 340 430 239/560CAF1 - 582 728 4.0 177
560 820 195 - - 6.0 4300 10500 320 410 230/560CA 230/560CAF3 588 792 5.0 363
560 820 195 22.3 9 6.0 4300 10500 320 410 230/560CAF3/W33 - 588 792 5.0 360
560 920 280 22.3 12 7.5 6900 15700 240 320 231/560CA/W33 231/560CAK/W33 596 884 6.0 756
560 920 280 22.3 12 7.5 6900 15700 240 320 231/560CAF3/W33 231560CAKF3/W33 596 884 6.0 754
600 870 200 - - 6.0 4700 11600 300 380 230/600CAF3 230/600CAKF3 628 842 5.0 442
600 870 200 22.3 9 6.0 4700 11600 300 380 230/600CAF3/W33 - 628 842 5.0 430
600 980 375 - - 7.5 8800 21600 100 150 241/600CA - 636 944 6.0 1140
630 920 212 - - 7.5 5150 12800 260 340 230/630CAF3 - 666 884 6.0 471
670 980 230 - - 7.5 5730 14200 240 320 230/750CAF3 - 706 944 6.0 601
750 1090 250 - - 7.5 7000 17900 200 280 230/750CA - 786 1054 6.0 789
750 1090 250 - - 7.5 7000 17900 200 280 230/750CAF3 - 786 1054 6.0 789
800 1150 345 - - 7.5 10300 24600 170 220 240/800CAF1 - 836 1114 6.0 1092
850 1220 272 - - 7.5 8450 22500 180 240 230/850CAF1 230/850CAKF1 886 1184 6.0 1074
850 1220 365 22.3 12 7.5 10400 29700 160 200 240/850CAF1/W33X - 866 1184 6.0 1410
850 1220 36 - - 7.5 10400 297700 160 200 240/850CAF1 - 886 1184 6.0 1410
1180 1540 272 - - - 8350 29600 110 150 - 239/1180CAK 1216 1536 8.0 1350
1180 1540 272 24 12 7.5 9350 29600 110 150 - 239/1180CAKF1/W33X 1216 1536 8.0 1350
1180 1660 355 24 12 9.5 9350 29600 110 150 230/1180CAF1/W33X - 1240 1600 6.0 2460


Basic dimensions

mm		 Basic load rating

KN		 Limiting speed

r/min		 Bearing numbers Other dimentions

mm		 Abutment and fillet dimensions
(mm)		 Axial load factors Weight

kg
d D B rsmin Cr Cor Grease Oil d2 D1 b k da(min) Da(max) ra(max) e y1 y2 y0
1180 1420 180 6 5600 18000 150 190 238/1180CAKF1A/W20 - 1254 1349 - 9 1180 1450 5 0.11 6.28 9.35 6.14 577
1180 1420 180 6 5340 17200 150 190 238/1180CAF3A/W20 - 1254 1349 - 9 1180 1450 5 0.11 6.28 9.35 6.14 580
1180 1420 243 6 7700 27200 135 160 248/1180CA/W33 - 1250 1344 22.3 12 1180 1450 5 0.14 4.80 7.20 4.50 790
1180 1420 243 6 7700 27200 135 160 248/1180CAK30/W33 - 1250 1344 22.3 12 1180 1450 5 0.14 4.80 7.20 4.50 770
1180 1540 272 7.5 10290 29600 110 150 239/1180CAKF3/W33X 239/1180CAKF1/W33X 1296 1432 24 12 1216 1536 6 0.16 4.20 6.30 4.00 1350
1180 1540 272 7.5 10700 29600 110 150 239/1180CAF3/W33X - 1296 1432 24 12 1216 1536 6 0.16 4.20 6.30 4.00 1390
1180 1540 355 7.5 13310 40000 110 150 249/1180CAF1/W33X - 1290 1422 22.3 12 1216 1536 6 0.20 3.42 5.09 3.34 1772
1180 1540 355 7.5 13900 40000 110 150 249/1180CAK30F3/W33 - 1290 1422 22.3 12 1216 1536 6 0.20 3.42 5.09 3.34 1742
1180 1660 355 9.5 10290 29600 110 150 230/1180CAF1/W33X - 1328 1509 24 12 1240 1600 8 0.20 3.42 5.09 3.34 2460
1250 1750 375 9.5 17500 44800 95 125 230/1250CA/W33 - 1412 1610 22.3 12 1285 1715 8 0.19 3.60 5.30 3.60 2850
1250 1750 375 9.5 17500 44800 95 125 230/1250CAK/W33 - 1412 1610 22.3 12 1285 1715 8 0.19 3.60 5.30 3.60 2760
1320 1600 280 6 9750 33400 85 115 248/1320CA/W33 - 1418 1513 22.3 12 1342 1578 5 0.15 4.50 6.70 4.50 1180
1320 1600 280 6 9750 33400 85 115 248/1320CA30/W33 - 1418 1513 22.3 12 1342 1578 5 0.15 4.50 6.70 4.50 1150
1320 1720 400 7.5 16000 49200 80 105 249/1320CA/W33 - ]446 1588 24 12 1350 1691 6 0.21 3.20 4.80 3.20 2510
1320 1720 400 7.5 16000 49200 80 105 249/1320CAK30/W33 - 1446 1588 24 12 1350 1691 6 0.21 3.20 4.80 3.20 2460
1320 1850 530 12 23200 63300 70 85 240/1320CAF3/W33T - 1485 1662 40 25 1390 1765 11 0.25 2.70 4.00 2.60 4540
1400 1820 425 9.5 20000 58500 70 85 249/1400CAF3/W33 - 1528 1681 22.3 12 1452 1768 8 0.20 3.42 5.09 3.34 2920
1500 1820 315 7.5 12000 40000 65 83 248/1500CA/W33 - 1608 1710 24 12 1528 1792 6 0.15 4.50 6.70 4.50 1730
1500 1820 315 7.5 12000 40000 65 83 248/1500CAK30F3/W20 - 1608 1710 - 12 1528 1792 6 0.15 4.50 6.70 4.50 1700
1800 2180 375 9.5 17400 62800 62 70 248/1800CA/W33 - 1935 2058 24 12 1832 2145 8 0.15 4.50 6.70 4.50 2920
1800 2180 375 9.5 17400 62800 62 70 248/1800CAK30/W33 - 1935 2058 24 12 1832 2145 8 0.15 4.50 6.70 4.50 2870



Spherical Roller Bearings

Split spherical roller bearing

Split spherical roller bearing
Spherical roller bearing for vibratory applications

Spherical roller bearing for vibratory applications
About us
Ningbo Demy (D&M) Bearings Co., Ltd.
Ningbo Demy (D&M) Bearings Co., Ltd.
Ningbo Demy (D&M) Bearings Co., Ltd. is professional China Split spherical roller bearing Suppliers and Wholesale Split spherical roller bearing Manufacturers.Located on the coast of Eastern China, in the beautiful and ancient city of Ningbo, is a rising star enterprise, Ningbo Demy (D&M) Bearings Co., LTD. Its subsidiary company – Ningbo Giant Bearing manufacturing Co., Ltd specializes in high class quality bearings for industrial and automotive applications.
Media
Message Feedback
Spherical Roller Bearings Industry knowledge

Introduction of Split Spherical Roller Bearing

Split Spherical Roller Bearing is famous for its unique split design, which makes the bearing more convenient and quick during installation, disassembly and maintenance. It is mainly composed of inner ring, outer ring, spherical roller, cage and sealing device. The inner ring is closely matched with the shaft and rotates with the shaft, while the outer ring is installed in the bearing seat to fix and support it. As a key component, the spherical roller is located between the inner ring and the outer ring, and the relative movement of the inner and outer rings is achieved through rolling. This spherical design enables the bearing to withstand large axial and radial loads and has good self-aligning performance.

1. Advantages of Split Spherical Roller Bearing
High load capacity: Split Spherical Roller Bearing adopts spherical roller design, which can withstand large axial and radial loads and meet the needs of heavy-load equipment.
Good self-aligning performance: The spherical roller structure enables the bearing to have good self-aligning performance, can automatically adjust the axis deviation, and reduce the equipment failure rate.
Easy installation and maintenance: The split design makes the bearing more convenient and quick during installation, disassembly and maintenance, reducing maintenance costs and time costs.
Strong adaptability: Split Spherical Roller Bearing is suitable for various harsh working environments, such as high temperature, heavy load, corrosion and other environments, and has strong adaptability.

2. Application fields of Split Spherical Roller Bearing
Mining machinery: In the mining process, heavy equipment such as crushers and ball mills need to withstand huge impact forces and loads. Split Spherical Roller Bearing has become an indispensable supporting component in these equipment due to its high load-bearing capacity and stable performance.
Metallurgical equipment: In the metallurgical industry, equipment such as rolling mills and continuous casting machines need to operate in high temperature and heavy load environments for a long time. Split Spherical Roller Bearing can withstand the challenges brought by high temperature and high-speed operation to ensure the stable operation of the equipment.
Power equipment: In power stations, equipment such as wind turbines and hydroelectric generators need to withstand the impact of wind and water flow. The self-aligning performance of Split Spherical Roller Bearing can effectively cope with these impacts and ensure the normal operation of the equipment.
Chemical equipment: In the chemical industry, various reactors, agitators and other equipment need to withstand the erosion of corrosive media. Split Spherical Roller Bearing is made of corrosion-resistant materials, which can resist chemical corrosion and ensure the long-term stable operation of the equipment.

The unique structure and excellent performance of Split Spherical Roller Bearing have been widely used in heavy machinery equipment in mining, metallurgy, electric power, chemical industry and other industries. Its high load-bearing capacity, good self-aligning performance and easy installation and maintenance have also made bearings an indispensable supporting element in these equipment. With the continuous advancement of science and technology and the continuous development of industry, the application prospects of Split Spherical Roller Bearing will be broader.
