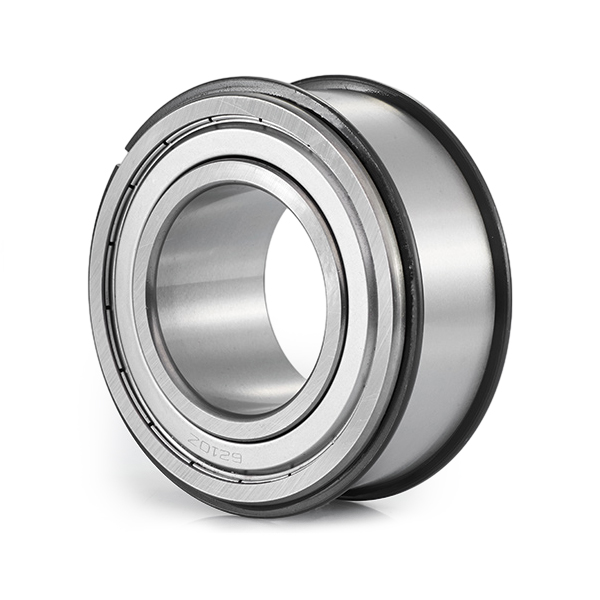

Deep groove ball bearing with snap groove & snap ring on outer ring
Deep groove ball bearing with snap groove & snap ring on outer ring

Deep Groove Ball Bearings

Deep groove ball bearing with snap groove & snap ring on outer ring

Description：

The deep groove ball bearing with a snap groove and snap ring on the outer ring is a specific type of ball bearing designed to facilitate easy assembly and disassembly. The presence of the snap groove and snap ring simplifies the mounting and dismounting process of the bearing, as it eliminates the need for additional components or tools to secure the bearing in place. This design is particularly useful in applications where frequent maintenance or replacement of bearings is necessary, as it allows for quick and easy access to the bearing arrangement.

contact us Inquiry
PREV：No previous article
NEXT：Double row deep groove ball bearing

Product Detail

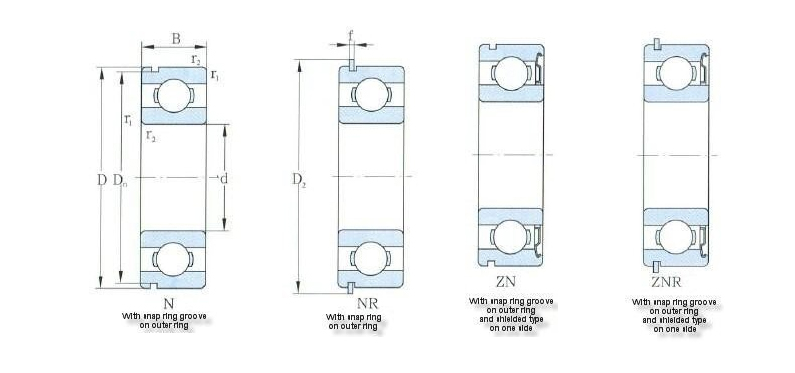

Boundary dimensions(mm) Load rating(kN) Speed rating(r/min) Number Snap ring(mm) Groove dimentions(mm) Mounting dimensions(mm) Weight
(reference)
(kg)
d D B r1,2
min		 rs
min		 Cr Cor Grease Oil N NR -ZN -ZNR Number D2
max		 f Dn
max		 b
min		 a
max		 ro
max		 da
min		 Da
max		 Db
min		 ba
min		 Ca
max		 ra
max
10 22 6 0.3 0.3 1.95 0.75 34000 40000 61900N 61900NR 61900-ZN 61900-ZNR NR1022 24.8 0.70 20.80 0.80 1.05 0.20 12.00 20.0 26 1.0 1.70 0.3 0.0079
10 30 9 0.6 0.5 5.10 2.39 24000 30000 6200N 6200NR 6200-ZN 6200-ZNR NR30 34.7 1.12 28.17 1.35 2.06 0.40 14.00 26.0 36 1.5 3.18 0.6 0.0308
10 35 11 0.6 0.5 7.66 3.47 20000 26000 6300N 6300NR 6300-ZN 6300-ZNR NR35 39.7 1.12 33.17 1.35 2.06 0.40 14.00 31.0 41 1.5 3.18 0.6 0.0541
12 24 6 0.3 0.3 2.25 0.98 30000 36000 61901N 61901NR 61901-ZN 61901-ZNR NR1024 26.8 0.70 22.80 0.80 1.05 0.20 14.00 22.0 28 1.0 1.70 0.3 0.0107
12 28 8 0.3 0.3 5.10 2.39 36000 32000 6001N 6001NR 6001-ZN 6001-ZNR NR28 30.8 0.85 26.70 0.95 1.30 0.25 14.00 26.0 32 1.2 2.15 0.3 0.0211
12 32 10 0.6 0.5 6.76 3.05 22000 28000 6201N 6201NR 6201-ZN 6201-ZNR NR32 36.7 1.12 30.15 1.35 2.06 0.40 16.00 28.0 38 1.5 3.18 0.6 0.0356
12 37 12 1.0 0.5 8.58 3.92 19000 24000 6301N 6301NR 6301-ZN 6301-ZNR NR37 41.3 1.12 34.77 1.35 2.06 0.40 17.00 32.0 42 1.5 3.18 1.0 0.0620
15 28 7 0.3 0.3 4.33 2.25 24000 30000 61902N 61902NR 61902-ZN 61902-ZNR NR1028 30.8 0.85 26.70 0.95 1.30 0.25 17.00 26.0 32 1.2 2.15 0.3 0.0151
15 32 9 0.3 0.3 5.62 2.84 22000 28000 6002N 6002NR 6002-ZN 6002-ZNR NR32 36.7 1.12 30.15 1.35 2.06 0.40 17.00 30.0 38 1.5 3.18 0.3 0.0298
15 35 11 0.6 0.5 7.66 3.72 19000 24000 6202N 6202NR 6202-ZN 6202-ZNR NR35 39.7 1.12 33.17 1.35 2.06 0.40 19.00 31.0 41 1.5 3.18 0.6 0.0442
15 42 13 1.0 0.5 11.40 5.40 17000 20000 6302N 6302NR 6302-ZN 6302-ZNR NR42 46.3 1.12 39.75 1.35 2.06 0.40 20.00 37.0 47 1.5 3.18 1.0 0.0812
17 30 7 0.3 0.3 4.60 2.55 22000 28000 61903N 61903NR 61903-ZN 61903-ZNR NR1030 32.8 0.85 28.70 0.95 1.30 0.25 19.00 28.0 34 1.2 2.15 0.3 0.0173
17 35 10 0.3 0.3 6.50 3.36 19000 24000 6003N 6003NR 6003-ZN 6003-ZNR NR35 39.7 1.12 33.17 1.35 2.06 0.40 19.00 33.0 41 1.5 3.18 0.3 0.0382
17 40 12 0.6 0.5 10.30 4.79 17000 20000 6203N 6203NR 6203-ZN 6203-ZNR NR40 44.6 1.12 38.10 1.35 2.06 0.40 21.00 36.0 46 1.5 3.18 0.6 0.0636
17 47 14 1.0 0.5 13.50 6.55 16000 19000 6303N 6303NR 6303-ZN 6303-ZNR NR47 52.7 1.12 44.60 1.35 2.46 0.40 22.00 42.0 54 1.5 3.58 1.0 0.1140
17 62 17 1.1 0.5 22.90 10.80 12000 15000 6403N 6403NR 6403-ZN 6403-ZNR NR62 67.7 1.70 55.61 1.90 3.28 0.60 23.50 55.5 69 2.2 4.98 1.0 0.0267
20 32 7 0.3 0.3 3.48 2.23 19000 24000 61804N 61804NR 61804-ZN 61804-ZNR NR1032 34.8 0.85 30.70 0.95 1.30 0.25 22.00 30.0 36 1.2 2.15 0.3 0.0176
20 37 9 0.3 0.3 6.38 3.65 18000 22000 61904N 61904NR 61904-ZN 61904-ZNR NR1037 39.8 0.85 35.70 0.95 1.70 0.25 22.00 35.0 41 1.2 2.55 0.3 0.0372
20 42 12 0.6 0.5 9.44 5.03 17000 20000 6004N 6004NR 6004-ZN 6004-ZNR NR42 46.3 1.12 39.75 1.35 2.06 0.40 24.00 38.0 48 1.5 3.18 0.6 0.0683
20 47 14 1.0 0.5 12.90 6.65 15000 18000 6204N 6204NR 6204-ZN 6204-ZNR NR47 52.7 1.12 44.60 1.35 2.46 0.40 25.00 42.0 54 1.5 3.58 1.0 0.1020
20 52 15 1.1 0.5 16.00 7.88 13000 16000 6304N 6304NR 6304-ZN 6304-ZNR NR52 57.9 1.12 49.73 1.35 2.46 0.40 26.50 45.5 59 1.5 3.58 1.0 0.1440
20 72 19 1.1 0.5 31.10 15.20 10000 13000 6404N 6404NR 6404-ZN 6404-ZNR NR72 78.6 1.70 68.81 1.90 3.28 0.60 26.50 65.5 80 2.2 4.98 1.0 0.3970
22 44 12 0.6 0.5 9.40 5.05 17000 20000 60/22N 60/22NR 60/22-ZN 60/22-ZNR NR44 48.3 1.12 41.75 1.35 2.06 0.40 2600 40.0 49 1.5 3.18 0.6 0.0724
22 50 14 1.0 0.5 12.90 6.80 14000 16000 62/22N 62/22NR 62/22-ZN 62/22-ZNR NR50 55.7 1.12 47.60 1.35 2.46 0.40 27.00 45.0 57 1.5 3.58 1.0 0.1160
Boundary dimensions(mm) Load rating(kN) Speed rating(r/min) Number Snap ring(mm) Groove dimentions(mm) Mounting dimensions(mm) Weight
(reference)
(kg)
d D B r1,2
min		 rs
min		 Cr Cor Grease Oil N NR -ZN -ZNR Number D2
max		 f Dn
max		 b
min		 a
max		 ro
max		 da
min		 Da
max		 Db
min		 ba
min		 Ca
max		 ra
max
22 56 16 1.1 0.5 18.50 9.25 13000 16000 63/22N 63/22NR 63/22-ZN 63/22-ZNR NR56 61.7 1.12 53.60 1.35 2.46 0.40 28.50 49.5 63 1.5 3.58 1.0 0.1750
25 37 7 0.3 0.3 3.84 2.80 17000 20000 61805N 61805NR 61805-ZN 61805-ZNR NR1037 39.8 0.85 35.70 0.95 1.30 0.25 27.00 35.0 41 1.2 2.15 0.3 0.0212
25 42 9 0.3 0.3 7.32 4.56 16000 19000 61905N 61905NR 61905-ZN 61905-ZNR NR1042 44.8 0.85 40.70 0.95 1.70 0.25 27.00 40.0 46 1.2 2.55 0.3 0.0427
25 47 12 0.6 0.5 10.10 5.85 15000 18000 6005N 6005NR 6005-ZN 6005-ZNR NR47 52.7 1.12 44.60 1.35 2.06 0.40 29.00 43.0 54 1.5 3.18 0.6 0.0786
25 52 15 1.0 0.5 14.00 7.87 12000 15000 6205N 6205NR 6205-ZN 6205-ZNR NR52 57.9 1.12 49.73 1.35 2.46 0.40 30.00 47.0 59 1.5 3.58 1.0 0.1260
25 62 17 1.1 0.5 22.50 11.60 11000 14000 6305N 6305NR 6305-ZN 6305-ZNR NR62 67.7 1.70 59.61 1.90 3.28 0.60 31.50 55.5 69 2.2 4.98 1.0 0.2240
25 80 21 1.5 0.5 37.30 18.80 9000 11000 6405N 6405NR 6405-ZN 6405-ZNR NR80 86.6 1.70 76081 1.90 3.28 0.60 33.00 72.0 88 2.2 4.98 1.5 0.5260
28 52 12 0.6 0.5 10.70 6.63 14000 16000 60/28N 60/28NR 60/28-ZN 60/28-ZNR NR52 57.9 1.12 49.73 1.35 2.06 0.40 32.00 48.0 59 1.5 3.18 0.6 0.0991
28 58 16 1.0 0.5 16.60 9.54 12000 14000 62/28N 62/28NR 62/28-ZN 62/28-ZNR NR58 63.7 1.12 55.60 1.35 2.46 0.40 33.00 53.0 65 1.5 3.58 1.0 0.1720
28 68 18 1.1 0.5 25.00 12.10 10000 7500 63/28N 63/28NR 63/28-ZN 63/28-ZNR NR68 74.6 1.70 64.82 1.90 3.28 0.60 34.50 61.5 76 2.2 4.98 1.0 0.2870
30 42 7 0.3 0.5 4.15 3.32 15000 18000 61806N 61806NR 61806-ZN 61806-ZNR NR1042 44.8 0.85 40.70 0.95 1.30 0.25 34.50 40.0 46 1.2 2.15 0.3 0.0249
30 47 9 0.3 0.5 8.05 5.37 14000 17000 61906N 61906NR 61906-ZN 61906-ZNR NR1047 49.8 0.85 45.70 0.95 1.70 0.25 32.00 45.0 51 1.2 2.55 0.3 0.0479
30 55 13 1.0 0.5 13.30 8.36 12000 15000 6006N 6006NR 6006-ZN 6006N-ZNR NR55 60.7 1.12 52.60 1.35 2.08 0.40 35.00 50.0 62 1.5 3.20 1.0 0.1150
30 62 16 1.0 0.5 19.50 11.30 10000 13000 6206N 6206NR 6206-ZN 6206-ZNR NR62 67.7 1.70 59.61 1.90 3.28 0.60 35.00 57.0 69 2.2 4.98 1.0 0.2000
30 72 19 1.1 0.5 26.70 14.90 9000 11000 6306N 6306NR 6306-ZN 6306-ZNR NR72 78.6 1.70 68.81 1.90 3.28 0.60 36.50 65.5 80 2.2 4.98 1.0 0.3500
30 90 23 1.5 0.5 47.30 24.50 8500 10000 6406N 6406NR 6406-ZN 6406-ZNR NR90 96.5 2.46 86.79 2.70 3.28 0.60 38.00 82.0 98 3.0 5.47 1.5 0.7240
32 58 13 1.0 0.5 13.30 8.39 12000 14000 60/32N 60/32NR 60/32-ZN 60/32-ZNR NR58 63.7 1.12 55.60 1.35 2.08 0.40 37.00 53.0 65 1.5 3.20 1.0 0.1270
32 65 17 1.0 0.5 21.20 12.50 10000 12000 62/32N 62/32NR 62/32-ZN 62/32-ZNR NR65 70.7 1.70 62.60 1.90 3.28 0.60 37.00 60.0 72 2.2 4.98 1.0 0.2270
32 75 20 1.1 0.5 29.90 17.00 9000 10000 63/32N 63/32NR 63/32-ZN 63/32-ZNR NR75 81.6 1.70 71.83 1.90 3.28 0.60 38.50 68.5 83 2.2 4.98 1.0 0.3870
35 47 7 0.3 0.5 4.29 3.60 13000 16000 61807N 61807NR 61807-ZN 61807-ZNR NR1047 49.8 0.85 45.70 0.95 1.30 0.25 37.00 45.0 51 1.2 2.15 0.3 0.0282
35 55 10 0.6 0.5 9.54 6.83 11000 14000 61907N 61907NR 61907-ZN 61907-ZNR NR1055 57.8 0.8 53.70 0.95 1.70 0.25 39.00 51.0 59 1.2 2.55 0.6 0.0769
35 62 14 1.0 0.5 16.00 10.30 10000 13000 6007N 6007NR 6007-ZN 6007-ZNR NR62 67.7 1.70 59.61 1.90 2.08 0.60 40.00 57.0 69 2.2 3.76 10 0.1480
35 72 17 1.1 0.5 25.60 15.30 9000 11000 6207N 6207NR 6207-ZN 6207-ZNR NR72 78.6 1.70 68.81 1.90 3.28 0.60 41.50 65.5 80 2.2 4.98 1.0 0.2800
35 80 21 1.5 0.5 33.40 19.20 8500 10000 6307N 6307NR 6307-ZN 6307-ZNR NR80 86.6 1.70 76.81 1.90 3.28 0.60 43.00 72.0 88 2.2 4.98 1.5 0.4490
Boundary dimensions(mm) Load rating(kN) Speed rating(r/min) Number Snap ring(mm) Groove dimentions(mm) Mounting dimensions(mm) Weight
(reference)
(kg)
d D B r1,2
min		 rs
min		 Cr Cor Grease Oil N NR -ZN -ZNR Number D2
max		 f Dn
max		 b
min		 a
max		 ro
max		 da
min		 Da
max		 Db
min		 ba
min		 Ca
max		 ra
max
35 100 25 1.5 0.5 55.30 31.00 7000 8500 6407N 6407NR 6407-ZN 6407-ZNR NR100 106.5 2.46 96.80 2.70 3.28 0.60 43.00 92.0 108 3.0 5.74 1.5 0.9180
40 52 7 0.3 0.3 4.52 4.10 11000 14000 61808N 61808NR 61808-ZN 61808-ZNR NR1052 54.8 0.85 50.70 0.95 1.30 0.25 42.00 50.0 56 1.2 2.15 0.3 0.0317
40 62 12 0.6 0.5 12.20 8.90 10000 13000 61908N 61908NR 61908-ZN 61908-ZNR NR1062 64.8 0.85 60.70 0.95 1.70 0.25 44.00 58.0 66 1.2 2.55 0.6 0.1130
40 68 15 1.0 0.5 16.80 11.60 9500 12000 6008N 6008NR 6008-ZN 6008-ZNR NR68 74.6 1.70 64.82 1.90 2.49 0.60 45.00 63.0 76 2.2 4.19 1.0 0.1840
40 80 18 1.1 0.5 27.60 17.40 8500 10000 6208N 6208NR 6208-ZN 6208-ZNR NR80 86.6 1.70 76.81 1.90 3.28 0.60 46.50 73.5 88 2.2 4.98 1.0 0.3670
40 90 23 1.5 0.5 40.80 24.00 7500 9000 6308N 6308NR 6308-ZN 6308-ZNR NR90 96.5 2.46 86.79 2.70 3.28 0.60 48.00 82.0 98 3.0 5.74 1.5 0.6320
40 110 27 2.0 0.5 63.80 36.60 6700 8000 6408N 6408NR 6408-ZN 6408-ZNR NR110 116.6 2.46 106.81 2.70 3.28 0.60 49.00 101.0 118 3.0 5.74 2.0 1.2300
45 58 7 0.3 0.3 4.73 4.50 9500 12000 61809N 61809NR 61809-ZN 61809-ZNR NR1058 60.8 0.85 56.70 0.95 1.30 0.25 47.00 56.0 62 1.2 2.15 0.3 0.0399
45 68 12 0.6 0.5 14.20 10.90 9000 11000 61909N 61909NR 61909-ZN 61909-ZNR NR1068 70.8 0.85 66.70 0.95 1.70 0.25 49.00 64.0 72 1.2 2.25 0.6 0.1300
45 75 16 1.0 0.5 19.90 14.00 9000 11000 6009N 6009NR 6009-ZN 6009-ZNR NR75 81.6 1.70 71.83 1.90 2.49 0.60 50.00 70.0 83 2.2 4.19 1.0 0.2420
45 85 19 1.1 0.5 31.20 20.40 7500 9000 6209N 6209NR 6209-ZN 6209-ZNR NR85 91.6 1.70 81.81 1.90 3.28 0.60 51.50 78.5 93 2.2 4.98 1.0 0.4140
45 100 25 1.5 0.5 48.90 29.30 6700 6700 6309N 6309NR 6309-ZN 6309-ZNR NR100 106.5 2.46 96.80 2.70 3.28 0.60 53.00 92.0 108 3.0 5.74 1.5 0.8430
45 120 29 2.0 0.5 72.90 42.60 6000 6000 6409N 6409NR 6409-ZN 6409-ZNR NR120 129.7 2.82 115.21 3.10 4.06 0.60 54.00 111.0 131 3.5 6.88 2.0 1.5400
50 65 7 0.3 0.3 4.93 4.94 9000 11000 61810N 61810NR 61810-ZN 61810-ZNR NR1065 67.8 0.85 63.70 0.95 1.30 0.25 52.00 63.0 69 1.2 2.15 0.3 0.0545
50 72 12 0.6 0.5 14.60 11.70 8500 10000 61910N 61910NR 61910-ZN 61910-ZNR NR1072 74.8 0.85 70.70 0.95 1.70 0.25 54.00 68.0 76 1.2 2.55 0.6 0.1380
50 80 16 1.0 0.5 20.70 15.40 8500 10000 6010N 6010NR 6010-ZN 6010-ZNR NR80 86.6 1.70 76.81 1.90 2.45 0.60 55.00 75.0 88 2.2 4.19 1.0 0.2560
50 90 20 1.1 0.5 35.10 23.20 7000 8500 6210N 6210NR 6210-ZN 6210-ZNR NR90 96.5 2.46 96.79 2.70 3.28 0.60 56.50 83.5 98 3.0 5.74 1.0 0.4580
50 110 27 2.0 0.5 57.60 35.30 6300 7500 6310N 6310NR 6310-ZN 6310-ZNR NR110 116.6 2.46 106.81 2.70 3.28 0.60 59.00 101.0 118 3.0 5.74 2.0 1.0900
50 130 31 2.1 0.5 83.30 49.30 5300 6300 6410N 6410NR 6410-ZN 6410-ZNR NR130 139.7 2.82 125.22 3.10 4.06 0.60 61.00 119.0 141 3.5 6.88 2.0 1.9000
55 72 9 0.3 0.3 9.07 8.45 8500 10000 61811N 61811NR 61811-ZN 61811-ZNR NR1072 74.8 0.85 70.70 0.95 1.70 0.25 57.00 70.0 76 1.2 2.55 0.3 0.0795
55 80 13 1.0 0.5 18.90 15.10 8000 9500 61911N 61911NR 61911-ZN 61911-ZNR NR1080 84.4 1.12 77.90 1.30 2.10 0.40 60.00 75.0 86 1.5 3.22 1.0 0.1770
55 90 18 1.1 0.5 26.70 20.10 7500 9000 6011N 6011NR 6011-ZN 6011-ZNR NR90 96.5 2.46 86.79 2.70 2.87 0.60 61.50 83.5 98 3.0 5.33 1.0 0.3730

Boundary dimensions(mm) Load rating(kN) Limiting speed (r/min) Number Snap ring(mm) Groove dimentions(mm) Mounting dimensions(mm) Weight
(reference)
(kg)
d D B r1,2
min		 rs
min		 Cr Cor Grease Oil N NR -ZN -ZNR Number D2
max		 f Dn
max		 b
min		 a
max		 ro
max		 da
min		 Da
max		 Db
min		 ba
min		 Ca
max		 ra
max
55 100 21 1.5 0.5 43.40 29.20 6300 7500 6211N 6211NR 6211-ZN 6211-ZNR NR100 106.5 2.46 96.80 2.70 3.28 0.60 63.00 92.0 108 3.0 5.74 1.5 0.5990
55 120 29 2.0 0.5 71.60 44.80 5600 6700 6311N 6311NR 6311-ZN 6311-ZNR NR120 129.7 2.82 115.21 3.10 4.06 0.60 64.00 111.0 131 3.5 6.88 2.0 1.3700
55 140 33 2.1 0.5 101.00 62.30 5000 6000 6411N 6411NR 6411-ZN 6411-ZNR NR140 149.7 2.82 135.23 3.10 4.90 0.60 66.00 129.0 151 3.5 7.72 2.0 2.2800
60 78 10 0.3 0.3 10.30 9.91 7500 9000 61812N 61812NR 61812-ZN 61812-ZNR NR1078 82.7 1.12 76.20 1.30 1.70 0.40 62.00 76.0 84 1.5 2.82 0.3 0.0995
60 85 13 1.0 0.5 19.40 16.20 7500 9000 61912N 61912NR 61912-ZN 61912-ZNR NR1085 89.4 1.12 82.90 1.30 2.10 0.40 65.00 80.0 91 1.5 3.22 1.0 0.1900
60 95 18 1.1 0.5 30.20 23.00 6700 8000 6012N 6012NR 6012-ZN 6012-ZNR NR95 101.6 2.46 91.82 2.70 2.87 0.60 66.50 88.5 103 3.0 5.33 1.0 0.3890
60 110 22 1.5 0.5 47.80 32.90 6000 7000 6212N 6212NR 6212-ZN 6212-ZNR NR110 116.6 2.46 106.81 2.70 3.28 0.60 68.00 102.0 118 3.0 5.74 1.5 0.7930
60 130 31 2.1 0.5 81.90 51.80 5000 6000 6312N 6312NR 6312-ZN 6312-ZNR NR130 139.7 2.82 125.22 3.10 4.06 0.60 71.00 119.0 141 3.5 6.88 2.0 1.6900
60 150 35 2.1 0.5 109.00 70.10 4800 5600 6412N 6412NR 6412-ZN 6412-ZNR NR150 159.7 2.82 145.24 3.10 4.90 0.60 71.00 139.0 162 3.5 7.72 2.0 2.7500
65 85 10 0.6 0.5 10.80 10.70 7000 8500 61813N 61813NR 61813-ZN 61813-ZNR NR1085 89.4 1.12 82.91 1.30 1.70 0.40 69.00 81.0 91 1.5 2.82 0.6 0.1240
65 90 13 1.0 0.5 19.90 17.50 6700 8000 61913N 61913NR 61913-ZN 61913-ZNR NR1090 94.4 1.12 87.90 1.30 2.10 0.40 70.00 85.0 96 1.5 3.22 1.0 0.2030
65 100 18 1.1 0.5 31.90 24.90 6300 7500 6013N 6013NR 6013-ZN 6013-ZNR NR100 106.5 2.46 96.80 2.70 2.87 0.60 71.50 93.5 108 3.0 5.33 1.0 0.4060
65 120 23 1.5 0.5 50.70 37.10 5300 6300 6213N 6213NR 6213-ZN 6213-ZNR NR120 129.7 2.82 115.21 3.10 4.06 0.60 73.00 112.0 131 3.5 6.88 1.5 1.0200
65 140 33 2.1 0.5 92.80 59.70 4800 5600 6313N 6313NR 6313-ZN 6313-ZNR NR140 149.7 2.82 135.33 3.10 4.90 0.60 76.00 129.0 151 3.5 7.72 2.0 2.0800
65 160 37 2.1 0.5 118.00 78.60 4500 5300 6413N 6413NR 6413-ZN 6413-ZNR NR160 169.7 2.82 155.22 3.10 4.90 0.60 76.00 149.0 172 3.5 7.72 2.0 3.3300
70 90 10 0.6 0.5 11.20 11.50 6700 8000 61814N 61814NR 61814-ZN 61814-ZNR NR1090 94.4 1.12 87.90 1.30 1.70 0.40 74.00 86.0 96 1.5 2.82 0.6 0.1320
70 100 16 1.0 0.5 23.70 21.10 6300 7500 61914N 61914NR 61914-ZN 61914-ZNR NR10100 104.4 1.12 97.90 1.30 2.50 0.40 75.00 95.0 106 1.5 3.62 1.0 0.3390
70 110 20 1.1 0.5 38.70 30.40 6000 7000 6014N 6014NR 6014-ZN 6014-ZNR NR110 116.6 2.46 106.81 2.70 2.87 0.60 76.50 103.5 118 3.0 5.33 1.0 0.5740
70 125 24 1.5 0.5 55.80 41.10 5000 6000 6214N 6214NR 6214-ZN 6214-ZNR NR125 134.7 2.82 120.22 3.10 4.06 0.60 78.00 117.0 136 3.5 6.88 1.5 1.1000
70 150 35 2.1 0.5 104.00 68.00 4500 5300 6314N 6314NR 6314-ZN 6314-ZNR NR150 159.7 2.82 145.24 3.10 4.90 0.60 81.00 139.0 162 3.5 7.72 2.0 2.5200
70 180 42 3.0 0.5 135.00 96.20 3800 4500 6414N 6414NR 6414-ZN 6414-ZNR NR180 192.9 3.10 173.66 3.50 5.69 0.60 83.00 167.0 195 3.5 8.79 2.5 4.9000
75 95 10 0.6 0.5 11.30 11.90 6300 7500 61815N 61815NR 61815-ZN 61815-ZNR NR1095 99.4 1.12 92.90 1.30 1.70 0.40 79.00 91.0 101 1.5 2.82 0.6 0.1400
75 105 16 1.0 0.5 23.40 22.50 6000 7000 61915N 61915NR 61915-ZN 61915-ZNR NR10105 110.7 1.12 102.60 1.30 2.50 0.40 80.00 100.0 112 1.5 3.62 1.0 0.3640
75 115 20 1.1 0.5 40.30 33.20 5600 6700 6015N 6015NR 6015-ZN 6015-ZNR NR115 121.6 2.46 111.81 2.70 2.87 0.60 81.50 108.5 123 3.0 5.33 1.0 0.6050
Boundary dimensions(mm) Load rating(kN) Limiting speed (r/min) Number Snap ring(mm) Groove dimentions(mm) Mounting dimensions(mm) Weight
(reference)
(kg)
d D B r1,2
min		 rs
min		 Cr Cor Grease Oil N NR -ZN -ZNR Number D2
max		 f Dn
max		 b
min		 a
max		 ro
max		 da
min		 Da
max		 Db
min		 ba
min		 Ca
max		 ra
max
75 130 25 1.5 0.5 60.80 45.40 4800 5600 6215N 6215NR 6215-ZN 6215-ZNR NR130 139.7 2.82 125.22 3.10 4.06 0.60 83.00 122.0 141 3.5 6.88 1.5 1.1700
75 160 37 2.1 0.5 113.00 77.00 4300 5000 6315N 6315NR 6315-ZN 6315-ZNR NR160 169.7 2.82 155.22 3.10 4.90 0.60 86.00 149.0 172 3.5 7.72 2.0 3.0200
75 190 45 3.0 0.5 153.00 114.00 3600 4300 6415N 6415NR 6415-ZN 6415-ZNR NR190 202.9 3.10 183.64 3.50 5.69 0.60 88.00 177.0 205 3.5 8.79 2.5 6.7500
80 100 10 0.6 0.5 11.60 12.70 6000 7000 61816N 61816NR 61816-ZN 61816-ZNR NR10100 104.4 1.12 97.90 1.30 1.70 0.40 84.00 96.0 106 1.5 2.82 0.6 0.1490
80 110 16 1.0 0.5 22.00 23.90 5600 6700 61916N 61916NR 61916-ZN 61916-ZNR NR10110 115.7 1.12 107.60 1.30 2.50 0.40 85.00 105.0 117 1.5 3.62 1.0 0.3780
80 125 22 1.1 0.5 42.40 35.60 5300 6300 6016N 6016NR 6016-ZN 6016-ZNR NR125 134.7 2.82 120.22 3.10 2.87 0.60 86.50 118.5 136 3.5 5.69 1.0 0.8360
80 140 26 2.0 0.5 71.50 54.30 4500 5300 6216N 6216NR 6216-ZN 6216-ZNR NR140 149.7 2.82 135.23 3.10 4.90 0.60 89.00 131.0 151 3.5 7.72 2.0 1.4200
80 170 39 2.1 0.5 123.00 86.50 3800 4500 6316N 6316NR 6316-ZN 6316-ZNR NR170 182.9 3.10 163.65 3.50 5.69 0.60 91.00 159.0 185 3.5 8.79 2.0 3.5600
80 200 48 3.0 0.5 163.00 12.50 3400 4000 6416N 6416NR 6416-ZN 6416-ZNR NR200 212.9 3.10 193.65 3.50 5.69 0.60 93.00 187.0 215 3.5 8.79 2.5 7.9600
85 110 13 1.0 0.5 16.00 16.80 5300 6300 61817N 61817NR 61817-ZN 61817-ZNR NR10110 115.7 1.12 107.60 1.30 2.10 0.40 90.00 105.0 117 1.5 3.22 1.0 0.2600
85 120 18 1.1 0.5 31.90 29.70 5300 6300 61917N 61917NR 61917-ZN 61917-ZNR NR10120 125.7 1.12 117.60 1.30 3.30 0.40 91.50 113.5 127 1.5 4.42 1.0 0.5290
85 130 22 1.1 0.5 47.30 40.10 5000 6000 6017N 6017NR 6017-ZN 6017-ZNR NR130 139.7 2.82 125.22 3.10 2.87 0.60 91.50 123.5 141 3.5 5.69 1.0 0.8570
85 150 28 2.0 0.5 77.20 59.30 4300 5000 6217N 6217NR 6217-ZN 6217-ZNR NR150 159.7 2.82 145.24 3.10 4.90 0.60 94.00 141.0 162 3.5 7.72 2.0 1.8100
85 180 41 3.0 0.5 133.00 96.60 3600 4300 6317N 6317NR 6317-ZN 6317-ZNR NR180 192.9 3.10 173.66 3.50 5.69 0.60 98.00 167.0 195 4.0 8.79 2.5 4.2500
90 115 13 1.0 0.5 16.50 18.00 5300 6300 61818N 61818NR 61818-ZN 61818-ZNR NR10115 120.7 1.12 112.60 1.30 2.10 0.40 95.00 110.0 122 1.5 3.20 1.0 0.2790
90 125 18 1.1 0.5 32.80 31.50 5000 6000 61918N 61918NR 61918-ZN 61918-ZNR NR10125 130.7 1.12 122.60 1.30 3.30 0.40 96.50 118.5 132 1.5 4.42 1.0 0.5560
90 140 24 1.5 0.5 52.30 45.10 4800 5600 6018N 6018NR 6018-ZN 6018-ZNR NR140 149.7 2.82 135.23 3.10 3.71 0.60 98.00 132.0 152 3.5 6.53 1.5 1.1300
90 160 30 2.0 0.5 96.10 71.50 3800 4500 6218N 6218NR 6218-ZN 6218-ZNR NR160 169.7 2.82 155.22 3.10 4.90 0.60 99.00 151.0 172 3.5 7.72 2.0 2.1500
90 190 43 3.0 0.5 143.00 107.00 3400 4000 6318N 6318NR 6318-ZN 6318-ZNR NR190 202.9 3.10 183.64 3.50 5.69 0.60 103.00 177.0 205 4.0 8.79 2.5 4.9500
95 120 13 1.0 0.5 18.60 18.60 5000 6000 61819N 61819NR 61819-ZN 61819-ZNR NR10120 125.7 1.12 117.60 1.30 2.10 0.40 100.00 115.0 127 1.5 3.22 1.0 0.2930
95 130 18 1.1 0.5 33.70 33.30 4800 5600 61919N 61919NR 61919-ZN 61919-ZNR NR10130 135.7 1.12 127.60 1.30 3.30 0.40 101.50 123.5 137 1.5 4.42 1.0 0.5840
95 145 24 1.5 0.5 58.00 50.10 4500 5300 6019N 6019NR 6019-ZN 6019-ZNR NR145 154.7 2.82 140.23 3.10 3.71 0.60 103.00 137.0 157 3.5 6.53 1.5 1.1600
95 170 32 2.1 0.5 109.00 81.70 3600 4300 6219N 6219NR 6219-ZN 6219-ZNR NR170 182.9 3.10 163.65 3.50 5.69 0.60 106.00 159.0 185 4.0 8.79 2.0 2.6100
95 200 45 3.0 0.5 153.00 118.00 3200 3800 6319N 6319NR 6319-ZN 6319-ZNR NR200 212.9 3.10 193.65 3.50 5.69 0.60 108.00 187.0 215 4.0 8.79 2.5 5.7300
Boundary dimensions(mm) Load rating(kN) Limiting speed (r/min) Number Snap ring(mm) Groove dimentions(mm) Mounting dimensions(mm) Weight
(reference)
(kg)
d D B r1,2
min		 rs
min		 Cr Cor Grease Oil N NR -ZN -ZNR Number D2
max		 f Dn
max		 b
min		 a
max		 ro
max		 da
min		 Da
max		 Db
min		 ba
min		 Ca
max		 ra
max
100 125 13 1.0 0.5 16.90 19.10 4800 5600 61820N 61820NR 61820-ZN 61820-ZNR NR10125 130.7 1.12 122.60 1.30 2.10 0.40 105.00 120.0 132 1.5 3.22 1.0 0.3050
100 140 20 1.1 0.5 43.90 42.00 4500 5300 61920N 61920NR 61920-ZN 61920-ZNR NR10140 145.7 1.70 137.60 1.90 3.30 0.60 106.50 133.5 147 2.2 5.00 1.0 0.7820
100 150 24 1.5 0.5 63.70 50.40 4300 5000 6020N 6020NR 6020-ZN 6020-ZNR NR150 159.7 2.82 145.24 3.10 3.71 0.60 108.00 142.0 162 3.5 6.53 1.5 1.1900
100 180 34 2.1 0.5 122.00 92.70 3400 4000 6220N 6220NR 6220-ZN 6220-ZNR NR180 192.9 3.10 173.66 3.50 5.69 0.60 111.00 169.0 195 4.0 8.79 2.0 3.1100
105 130 13 1.0 0.5 17.40 20.40 4500 5300 61821N 61821NR 61821-ZN 61821-ZNR NR10130 135.7 1.12 127.60 1.30 2.10 0.40 110.00 125.0 137 1.5 3.22 1.0 0.3200
105 145 20 1.1 0.5 46.30 44.80 4300 5000 61921N 61921NR 61921-ZN 61921-ZNR NR10145 150.7 1.70 142.60 1.90 3.30 0.60 111.50 138.5 152 2.2 5.00 1.0 0.8020
105 160 26 2.0 0.5 69.80 61.20 4000 4800 6021N 6021NR 6021-ZN 6021-ZNR NR160 169.7 2.82 155.22 3.10 3.71 0.60 114.00 151.0 172 3.5 6.53 2.0 1.5400
105 190 36 2.1 0.5 133.00 104.00 3200 3800 6221N 6221NR 6221-ZN 6221-ZNR NR190 202.9 3.10 183.64 3.50 5.69 0.60 116.00 179.0 205 4.0 8.79 2.0 3.7800
110 140 16 1.0 0.5 24.30 27.20 4300 5000 61822N 61822NR 61822-ZN 61822-ZNR NR10140 145.7 1.70 137.60 1.90 2.50 0.60 115.00 135.0 147 2.2 4.20 1.0 0.4960
110 150 20 1.1 0.5 47.80 47.70 4000 4800 61922N 61922NR 61922-ZN 61922-ZNR NR10150 155.7 1.70 147.60 1.90 3.30 0.60 116.50 143.5 157 2.2 5.00 1.0 0.8370
110 170 28 2.0 0.5 75.10 67.30 3800 4500 6022N 6022NR 6022-ZN 6022-ZNR NR170 182.9 3.10 163.65 3.50 3.71 0.60 119.00 161.0 185 4.0 6.81 2.0 1.9300
110 200 38 2.1 0.5 144.00 117.00 3000 3600 6222N 6222NR 6222-ZN 6222-ZNR NR200 212.9 3.10 193.65 3.50 5.69 0.60 121.00 189.0 215 4.0 8.79 2.0 4.4100
120 150 16 1.0 0.5 25.00 26.00 3800 4500 61824N 61824NR 61824-ZN 61824-ZNR NR10150 155.7 1.70 147.60 1.90 2.50 0.60 125.00 145.0 157 2.2 4.20 1.0 0.5320
120 165 22 1.1 0.5 57.20 56.90 3600 4300 61924N 61924NR 61924-ZN 61924-ZNR NR10165 171.5 1.70 161.80 1.90 3.70 0.60 126.50 158.5 173 2.2 5.40 1.0 1.1400
120 180 28 2.0 0.5 88.30 79.70 3400 4000 6024N 6024NR 6024-ZN 6024-ZNR NR10180 192.9 3.10 173.66 3.50 3.71 0.60 129.00 171.0 195 4.0 6.81 2.0 2.0300
130 165 18 1.1 0.5 32.50 34.00 3600 4300 61826N 61826NR 61826-ZN 61826-ZNR NR10165 171.5 1.70 161.80 1.90 3.30 0.60 136.50 158.5 173 2.2 5.00 1.0 0.7700
130 180 24 1.5 0.5 69.40 70.00 3400 4000 61926N 61926NR 61926-ZN 61926-ZNR NR10180 186.5 1.70 176.80 1.90 3.70 0.60 138.00 172.0 188 2.2 5.40 1.5 1.4900
130 200 33 2.0 0.5 102.00 93.90 3200 3800 6026N 6026NR 6026-ZN 6026-ZNR NR200 212.9 3.10 193.65 3.50 5.69 0.60 139.00 191.0 215 4.0 8.79 1.0 3.1000
140 175 18 1.1 0.5 34.00 36.50 3400 4000 61828N 61828NR 61828-ZN 61828-ZNR NR10175 181.5 1.70 171.80 1.90 3.30 0.60 146.50 168.5 183 2.2 5.00 1.0 0.8200
140 190 24 1.5 0.5 71.20 74.60 3200 3800 61928N 61928NR 61928-ZN 61928-ZNR NR10190 196.5 1.70 186.80 1.90 3.70 0.60 148.00 182.0 198 2.2 5.40 1.5 1.5700
150 190 20 1.1 0.5 42.50 44.00 3000 3600 61830N 61830NR 61830-ZN 61830-ZNR NR10190 196.5 1.70 186.80 1.90 3.30 0.60 156.50 183.5 198 2.2 5.00 0.6 1.1000
160 200 20 1.1 0.5 44.00 48.00 2800 3400 61832N 61832NR 61832-ZN 61832-ZNR NR10200 206.5 1.90 196.80 1.70 3.30 0.60 166.50 193.5 208 2.2 5.00 0.6 1.1600

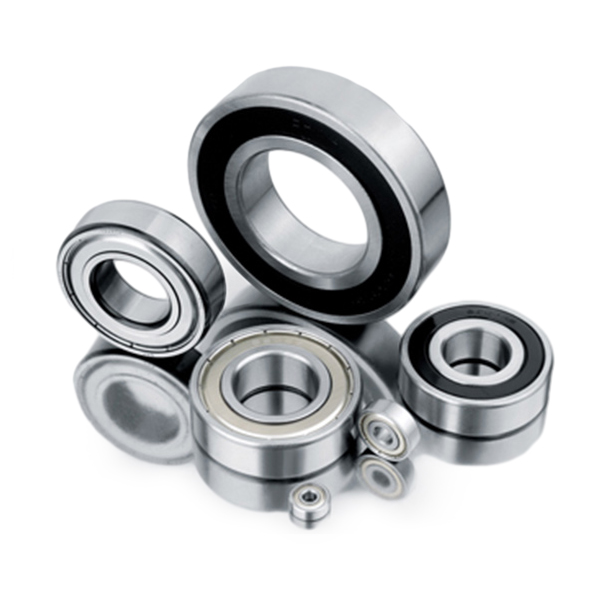

Deep Groove Ball Bearings

Deep groove ball bearing with snap groove & snap ring on outer ring

Deep groove ball bearing with snap groove & snap ring on outer ring
Double row deep groove ball bearing

Double row deep groove ball bearing
Chrome steel 6*19*6mm deep groove ball bearing 6311

Chrome steel 6*19*6mm deep groove ball bearing 6311
High speed low friction torque deep groove ball bearings

High speed low friction torque deep groove ball bearings
Deep groove ball bearings with filling slots

Deep groove ball bearings with filling slots
Expansion compensating deep groove ball bearing

Expansion compensating deep groove ball bearing
About us
Ningbo Demy (D&M) Bearings Co., Ltd.
Ningbo Demy (D&M) Bearings Co., Ltd.
Ningbo Demy (D&M) Bearings Co., Ltd. is professional China Deep groove ball bearing with snap groove & snap ring on outer ring Suppliers and Wholesale Deep groove ball bearing with snap groove & snap ring on outer ring Manufacturers.Located on the coast of Eastern China, in the beautiful and ancient city of Ningbo, is a rising star enterprise, Ningbo Demy (D&M) Bearings Co., LTD. Its subsidiary company – Ningbo Giant Bearing manufacturing Co., Ltd specializes in high class quality bearings for industrial and automotive applications.
Media
Message Feedback
Deep Groove Ball Bearings Industry knowledge

Basic structural features of Deep Groove Ball Bearing with Snap Groove & Snap Ring on Outer Ring

1. Inner and outer ring structure
Deep groove ball bearings are mainly composed of inner ring, outer ring and balls. The inner ring fits tightly on the shaft and usually rotates with the shaft. The outer ring is installed in the bearing seat or housing to play a supporting and positioning role. The inner and outer rings are machined with arc-shaped grooves, which are used to accommodate balls. The radius of the inner ring groove is slightly smaller than the ball radius, while the radius of the outer ring groove is slightly larger than the ball radius. This design allows a certain amount of clearance between the ball and the groove to adapt to dimensional changes caused by factors such as thermal expansion, axial displacement or manufacturing errors.

2. Ball and cage
The ball is the core component of the deep groove ball bearing. It is located between the inner and outer ring grooves and bears radial and axial loads. The ball is usually made of high-hardness, high-wear-resistant materials to ensure that it can still maintain good performance under long-term high-load operation. In order to keep the balls in the correct position in the groove and prevent them from colliding with each other, a cage is usually installed in the bearing. The cage is usually stamped from steel plates, and its shape and size are precisely calculated and designed to ensure the uniform distribution and stable operation of the balls in the groove.

3. Buckle groove and outer ring snap ring
Deep groove ball bearings with buckle grooves and outer ring snap rings have a unique design in structure. The buckle grooves are usually located on one or both sides of the outer ring, and their shape and size are precisely designed to ensure that the snap ring can be tightly embedded in them. The snap ring is a single-mouth ring with a constant cross-section, and its material is usually an elastic material such as spring steel or stainless steel. During installation, the snap ring is compressed and embedded in the buckle groove, and then the bearing is fixed to the housing or bearing seat by its elastic restoring force. This design not only simplifies the installation process of the bearing, but also improves the axial stability of the bearing.

4. Sealing and dustproof structure
In order to further improve the performance and service life of deep groove ball bearings, some bearings are also equipped with sealing and dustproof structures. These structures are usually made of rubber or metal, and their shapes and sizes are customized according to the specifications and application scenarios of the bearing. The sealing and dustproof structures can effectively prevent dust, moisture and other contaminants from entering the bearing, thus keeping the bearing clean and dry. At the same time, they can also reduce the leakage and volatilization of lubricants, ensuring that the bearing remains in a good lubrication state during long-term operation.
