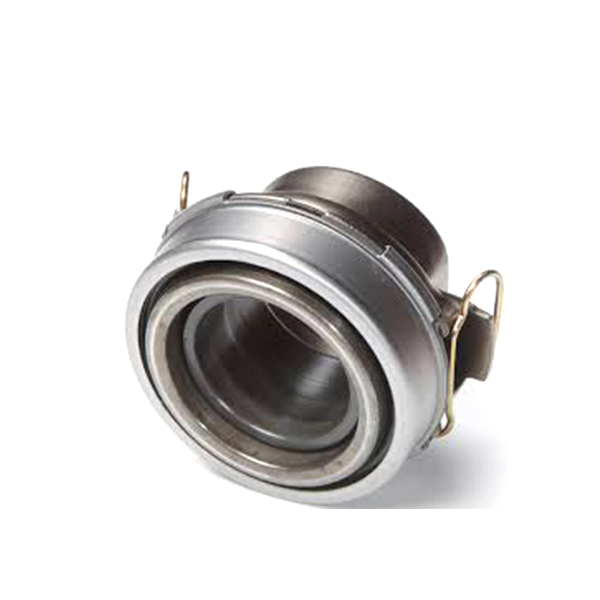

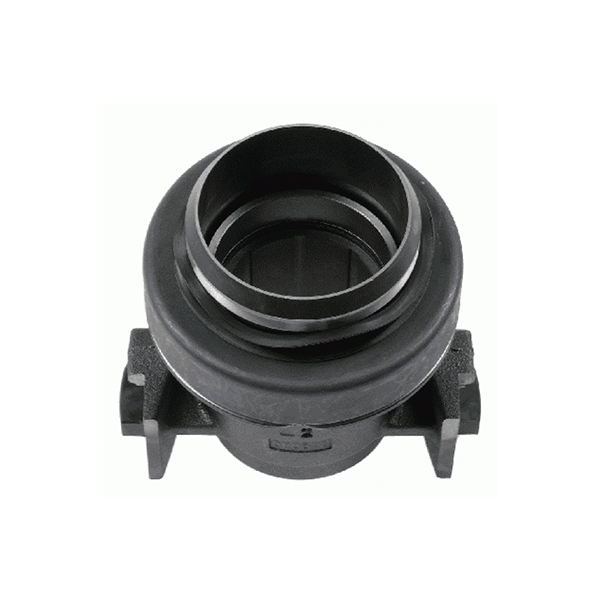

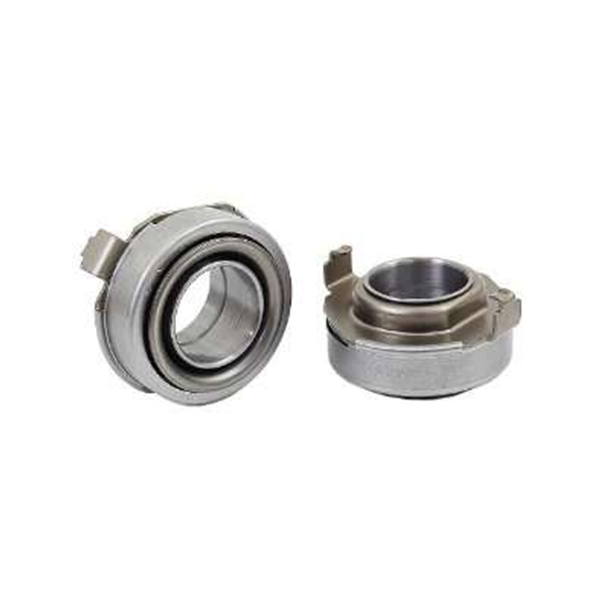

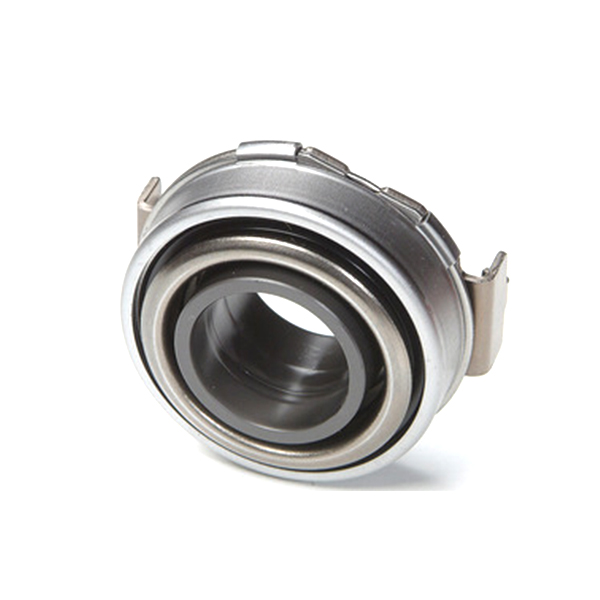

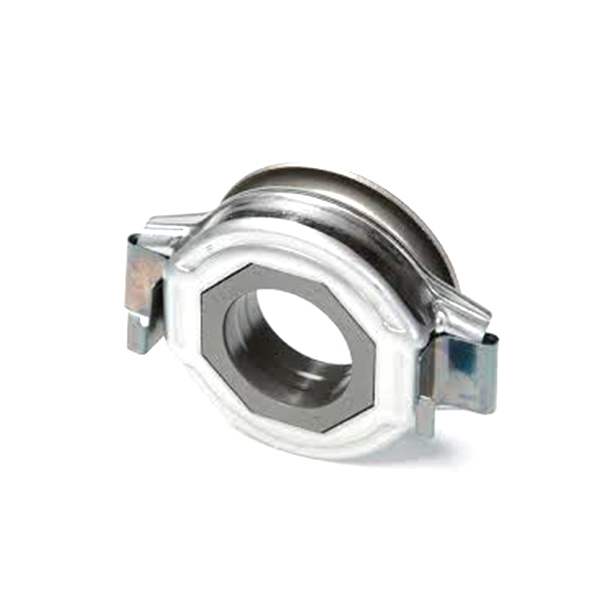

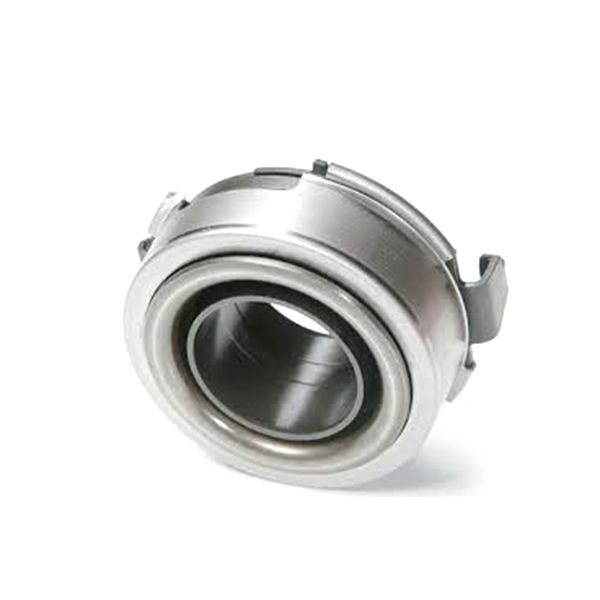

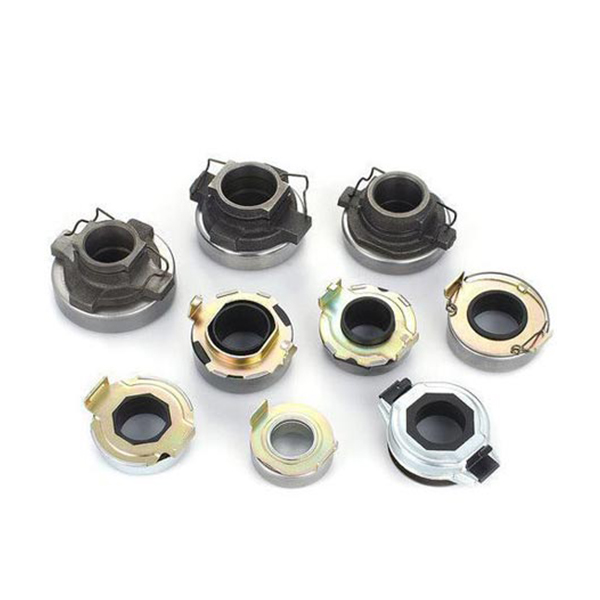

Automotive clutch release bearing

How does the clutch release bearing work?

The automotive clutch release bearing plays a vital role in the manual transmission system. It is responsible for separating the engine and the transmission when the driver presses the clutch pedal, making the gear shifting operation smooth. The working principle of the clutch release bearing can be divided into the following steps for detailed introduction:
Composition of the clutch system:
Clutch pedal: The part that the driver presses with his foot.
Clutch fork: Transmits the movement of the pedal to the clutch release bearing through a mechanical connection.
Clutch release bearing: Connected between the clutch fork and the pressure plate, responsible for the actual separation action.
Clutch pressure plate: Fixed to the flywheel, in close contact with the clutch disc, when the release bearing pushes the pressure plate, the clutch disc is separated from the flywheel.
Clutch disc: Located between the flywheel and the pressure plate, it transmits the engine's power to the transmission through friction.
Pressing the clutch pedal:
When the driver presses the clutch pedal, the force is transmitted to the clutch release bearing through the clutch fork.
The clutch release bearing moves forward, contacts and pushes the finger (usually a spring leaf) on the pressure plate.
Separation process:
The clutch release bearing pushes the finger on the pressure plate, and the pressure plate is pushed back away from the clutch disc.
As the pressure plate moves backward, the contact pressure between the clutch disc and the flywheel decreases, and finally completely separates.
After the clutch disc is separated from the flywheel, the power of the engine is no longer transmitted to the transmission, and the transmission gears can move freely to achieve gear shifting.
Release the clutch pedal:
When the driver releases the clutch pedal, the clutch fork pulls the release bearing back to its original position through the action of the return spring.
The clutch release bearing stops pushing the finger of the pressure plate, and the pressure plate re-contacts the clutch disc closely under the action of the spring force.
The clutch disc re-contacts the flywheel, and the power of the engine is transmitted to the transmission again, and the vehicle continues to drive.

What are the common clutch release bearing failures?

Although the clutch release bearing is a relatively simple mechanical component, it is prone to various failures due to its frequent operating tasks in the operation of the car. The following are some common clutch release bearing failures and their causes:
Abnormal noise:
Cause: Abnormal noise is usually caused by bearing wear or insufficient lubrication. When the balls or rollers in the bearings are worn, the bearings will produce friction during operation, resulting in metal-to-metal friction sounds.
Symptoms: A sharp friction sound or buzzing sound can be heard when the clutch pedal is pressed.
Wear:
Cause: Due to long-term use or lack of proper lubrication, the rolling elements in the bearings will wear, causing the bearings to run unevenly.
Symptoms: It feels rough when the clutch is pressed, and the rebound force of the clutch pedal is weakened.
Jamming:
Cause: Foreign matter has entered the bearing or the lubricant has deteriorated, causing the rolling elements to be unable to roll freely, causing the bearings to jam.
Symptoms: The clutch operation becomes sluggish, and the pedal is difficult to step on or lift.
Bearing damage:
Cause: The seal of the bearing is damaged or it has been overloaded for a long time, causing damage to the internal structure of the bearing.
Symptoms: The clutch system fails completely, cannot be separated, and cannot shift gears.
Overheating:
Cause: Due to long-term high-load operation or insufficient lubrication, the bearings may overheat, causing the internal rolling elements and lubricants to fail.
Symptoms: The clutch feels abnormally hot when operating, and there is even a burnt smell.
Damaged seal:
Cause: When the seal of the bearing is damaged, the lubricating oil will leak, causing the bearing to lose lubrication, increasing the risk of wear and failure.
Performance: Abnormal clutch operation, lubricating oil leaking around the bearing.

How to judge whether the clutch release bearing needs to be replaced?

Timely judgment and replacement of problematic clutch release bearings are the key to ensuring the normal operation and safe driving of the vehicle. Here are some methods and steps to judge whether the clutch release bearing needs to be replaced:
Auditory inspection:
Method: When the engine is idling, lightly press the clutch pedal and listen for abnormal noise.
Judgment: If you hear a sharp friction or buzzing sound, it may be that the bearing is worn or insufficiently lubricated.
Pedal feel inspection:
Method: During driving, press and release the clutch pedal to feel the rebound and smoothness of the pedal.
Judgment: If you feel that the pedal is not smooth or the rebound force is weakened when pressing or releasing it, it may be that the bearing is worn or stuck.
Visual inspection:
Method: When the clutch system is maintained or replaced, disassemble the clutch assembly and check the appearance of the release bearing.
Judgment: If there is obvious wear, cracks or deformation on the bearing surface, it means that the bearing is damaged and needs to be replaced.
Operational performance check:
Method: Test the vehicle's clutch operating performance, including the smoothness of shifting and the clutch separation effect.
Judgment: If it feels difficult to shift gears, or the clutch cannot be completely separated, it may be that the bearing is damaged or stuck.
Regular maintenance:
Method: Regularly check and maintain the clutch system, including lubricating the bearings and checking for wear.
Judgment: Through regular maintenance, potential problems with the bearing can be discovered in time to avoid serious failures.
Check the clutch pedal:
Method: Check the height and stroke of the clutch pedal to ensure that it is within the normal range.
Judgment: If the pedal height is too high or too low, or the stroke is abnormal, there may be a problem with the clutch release bearing or other clutch components.
Check the clutch fork:
Method: Check the wear and deformation of the clutch fork to ensure that it can transmit force normally.
Judgment: If the fork is severely worn or deformed, it may cause the release bearing to not work properly, and the fork and release bearing need to be replaced at the same time.
Test drive:
Method: Perform a test drive and pay attention to the operating feel and shifting of the clutch.
Judgment: If the clutch is difficult to operate or the gear shift is not smooth during the test drive, it may be a problem with the release bearing. Timely discovery and replacement of problematic clutch release bearings can not only ensure the normal operation of the vehicle, but also extend the service life of other components of the clutch system and improve driving comfort and safety.
